ID
1300737
$ 7,434.79
1-2 weeks delivery time
-
+
The Maxwell 3500 VWCLP hydraulic vertical anchor windlass, clockwise (CW) (Vetus P105140), is a robust marine anchoring system designed for hydraulic anchor chain handling with a 200 TDC working load capacity. Featuring a strong hydraulic drive, CW chainwheel configuration and compatibility with 10–13 mm chain sizes, this windlass delivers reliable automatic chain retrieval and deployment performance for medium to large vessels in demanding marine environments.
- Description
- Ask a Question
-

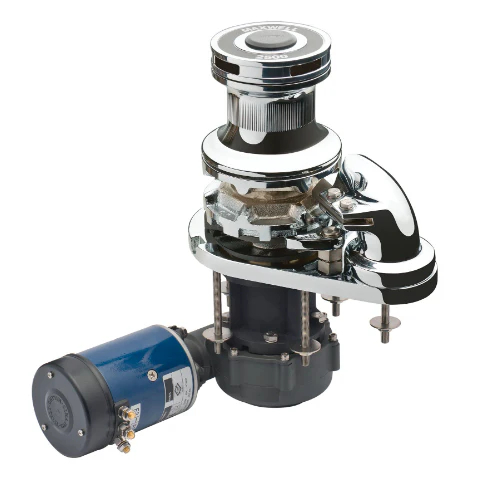

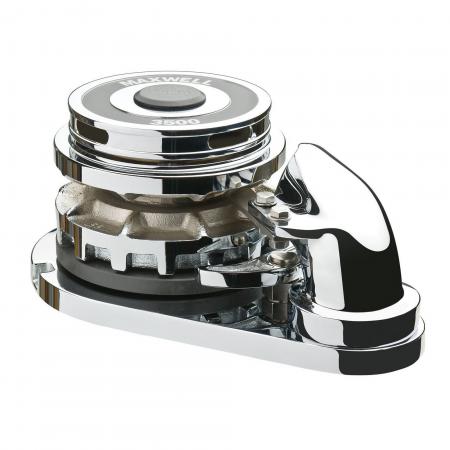

Maxwell 3500 VWCLP Hydraulic Vertical Anchor Windlass, CW, 200TDC (Vetus P105140)
The Maxwell 3500 VWCLP Hydraulic Vertical Anchor Windlass with clockwise (CW) chainwheel is engineered for dependable and efficient automatic anchor chain handling on marine vessels. Featuring a hydraulic drive system and robust marine-grade construction, this windlass offers consistent performance in demanding anchoring conditions. Designed for use with standard marine anchor chain sizes, it provides a working load capacity of 200 TDC suitable for heavier anchoring applications. :contentReference[oaicite:1]{index=1}
Key Features
- Hydraulic vertical windlass for automatic chain-only anchor handling
- Clockwise (CW) chainwheel configuration
- Marine-grade construction with corrosion-resistant materials
- Conical brake/clutch mechanism for smooth and controlled operation
- Chain guide and pipe-deck hawse for consistent chain feed
- Modular design for simplified installation and maintenance
Hydraulic Specifications
Parameter Specification Drive Type Hydraulic Hydraulic Flow Requirement Approx. 42 L/min Hydraulic Pressure Approx. 138 bar
Mechanical Specifications
Specification Value Model 3500 VWCLP Rotation Direction CW (Clockwise) Working Load Capacity (TDC) 200 Compatible Chain Size 10 mm – 13 mm Chain Speed Approx. 15 m/min Static Holding Load Approx. 2200 kg Maximum Pull / Breaking Load Approx. 1590 kg
Performance and Usage
- Designed for efficient automatic anchor chain retrieval and deployment
- Robust hydraulic drive ensures reliable operation in demanding marine conditions
- Compatible with standard marine anchoring systems requiring CW rotation
- Ideal for medium to large recreational and commercial vessels
Installation and Operation Notes
- Vertical through-deck installation with appropriate reinforcement
- Hydraulic supply must meet specified flow and pressure requirements
- Select correct chainwheel to match actual chain dimensions
- Ensure proper drainage and chain locker alignment to minimize jamming
-
