ID
1300597
$ 8,986.53
1-2 weeks delivery time
-
+

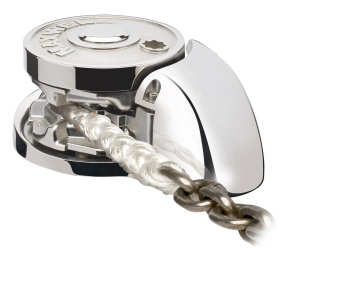

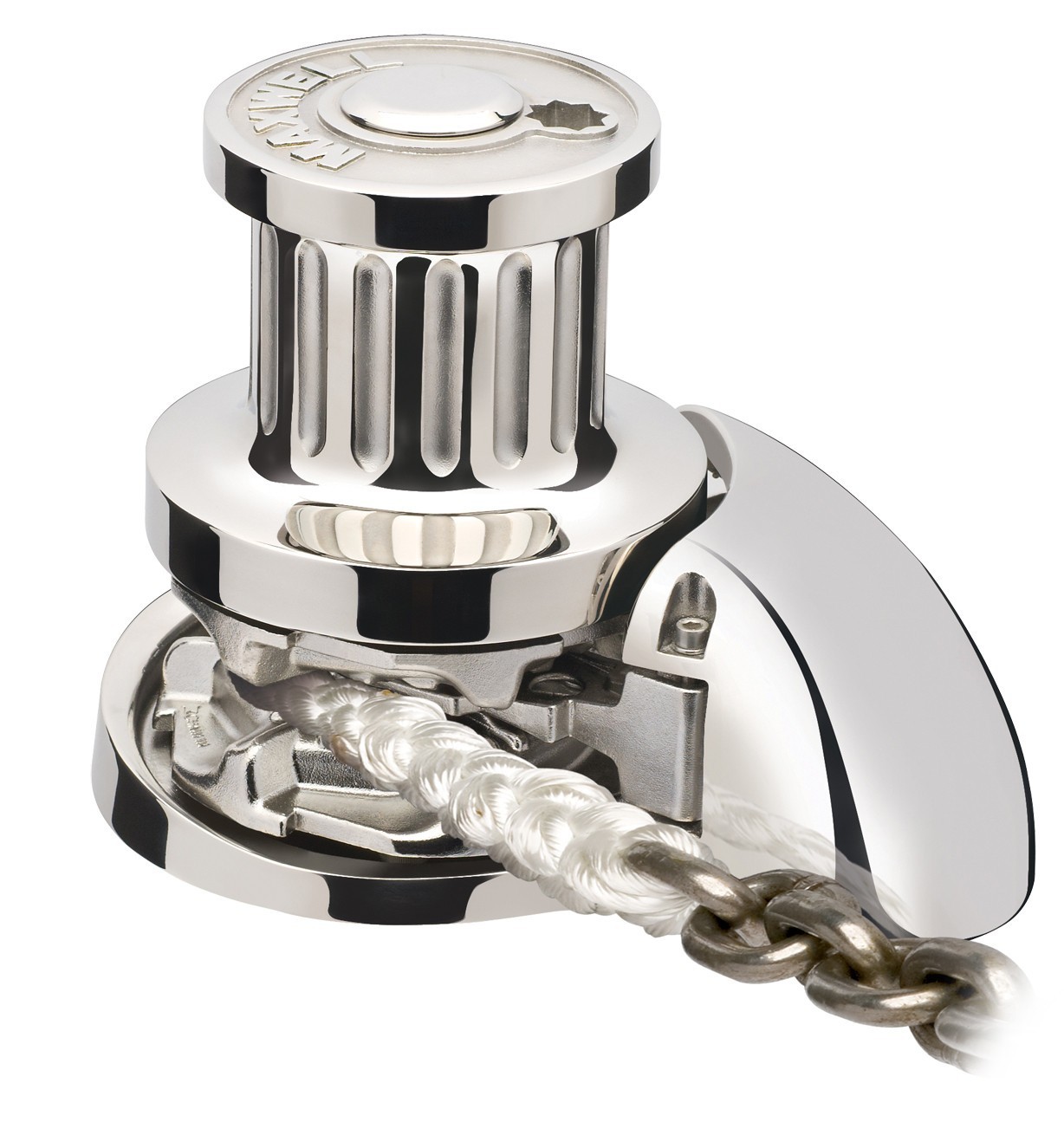

The Maxwell RC12-HD 24V Electric Windlass (P104975) is a vertical rope/chain windlass designed for 10–13 mm short link chain and 18–24 mm nylon rope. Powered by a 24 V DC, 2000 W motor, it provides a maximum pull of up to 1820 kg and features a 200 mm total deck clearance (TDC), making it suitable for demanding marine anchoring applications without an integrated drum.
- Description
- Ask a Question
-
Maxwell RC12-HD 24V Vertical Electric Windlass for 12 mm Chain, 200 TDC
The Maxwell RC12-HD 24V is a heavy-duty vertical electric windlass engineered for vessels requiring high service speeds and reliable anchoring performance. Its design is particularly well suited to patrol and professional vessels, where the reduced weight of rope and chain combination rodes helps minimize load at the bow and improve overall vessel balance.
This model is designed for use with 10 mm to 13 mm short link chain and 18 mm to 24 mm nylon rope. The motor and gearbox are sized to meet typical Classification Society test requirements for 12.5 mm U1 stud link chain, ensuring compatibility with demanding marine anchoring standards.

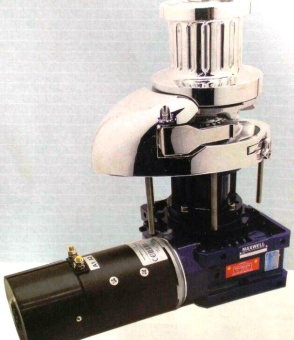

The windlass is fitted with a heavy-duty fan-cooled DC motor and a fin-cooled gearbox, allowing extended operating periods. Depending on load conditions, the DC configuration supports continuous operation at loads up to 300 kgf and run times of up to 5 minutes at loads of 700 kgf. The RC12-HD incorporates Maxwell’s patented Wave Design™ chainwheel for smooth and secure chain handling.
Key Features
- Vertical electric windlass configuration
- 24 V DC drive with 2000 W motor
- Designed for combined rope and chain operation
- Heavy-duty fan-cooled motor for extended runtime
- Fin-cooled gearbox for thermal stability
- Wave Design™ chainwheel for improved chain engagement
- Chainwheel-only configuration without drum
Technical Specifications
Parameter Specification Model Reference P104975 Manufacturer Series RC12-HD Drive Type Electric DC Motor Power 2000 W Operating Voltage 24 V Installation Orientation Vertical Rope / Chain Operation Rope / Chain Drum No Total Deck Clearance (TDC) 200 mm Maximum Pull / Lift 1820 kg Nominal Chain Diameter 12 mm Rope Diameter Not specified
Typical Applications
- Patrol and professional vessels
- Marine applications requiring high service speeds
- Anchoring systems with mixed rope and chain rodes
- Installations requiring extended deck clearance
-
