ID
1281929
$ 9,829.75
1-2 weeks delivery time
-
+

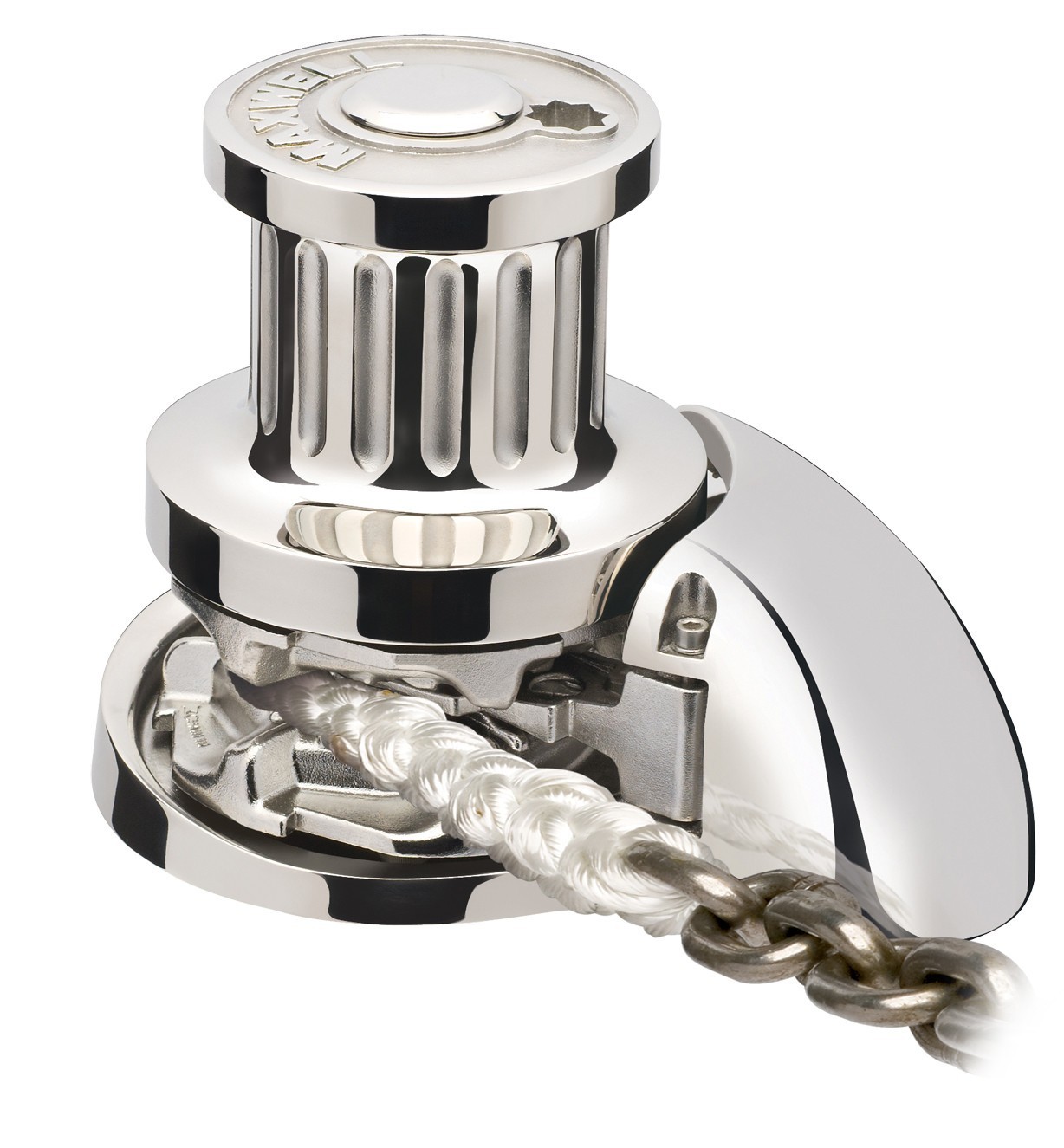

The Maxwell RC12-HD Hydraulic Windlass with Drum (P104990) is a vertical rope/chain windlass designed for 10–13 mm short link chain and 18–24 mm nylon rope. Featuring a hydraulic drive, 100 mm total deck clearance (TDC) and an integrated drum, it provides a maximum pull capacity of 1200 kg for demanding marine anchoring applications.
- Description
- Ask a Question
-
Maxwell RC12-HD Hydraulic Vertical Windlass with Drum for 11–12 mm Chain
The Maxwell RC12-HD Hydraulic is a heavy-duty vertical windlass engineered for vessels requiring high service speeds and reliable anchoring performance. Its design is particularly well suited to patrol and professional vessels, where the reduced weight of rope and chain combination rodes helps decrease load at the bow and improve vessel balance.
This model is designed for use with 10 mm to 13 mm short link chain and 18 mm to 24 mm nylon rope. The motor and gearbox sizing meets typical Classification Society test requirements for 12.5 mm U1 stud link chain, ensuring compatibility with demanding marine anchoring standards.
The RC12-HD platform incorporates a robust drivetrain and features Maxwell’s patented Wave Design™ chainwheel, providing smooth and secure chain engagement. The hydraulic version is intended for installations requiring consistent performance under load and is equipped with an integrated drum to support combined rope and chain handling.
Key Features
- Vertical hydraulic windlass configuration
- Integrated drum for rope handling
- Designed for combined rope and chain anchoring systems
- Wave Design™ chainwheel for smooth chain handling
- Optimized for reduced foredeck weight
Technical Specifications
Parameter Specification Model Reference P104990 Manufacturer Series RC12-HD Drive Type Hydraulic Operating Voltage 0 V Installation Orientation Vertical Rope / Chain Operation Rope / Chain Drum Yes Total Deck Clearance (TDC) 100 mm Maximum Pull / Lift 1200 kg Nominal Chain Diameter 11 mm Rope Diameter 16–20 mm
Typical Applications
- Patrol and professional vessels
- Marine installations with hydraulic power systems
- Anchoring systems using mixed rope and chain rodes
- Vertical deck-mounted windlass configurations
-
