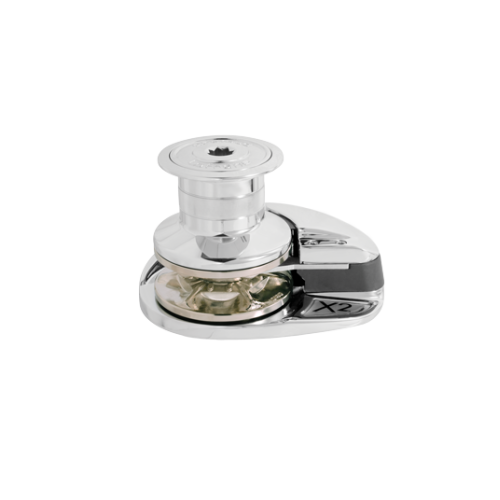

Lofrans X2 Anchor Windlass for Boats 8-18 m, Chain 6/8/10 mm

$ 1.848,32

1-2 weeks delivery time

Diameter, mm:

Voltage:

Electric power, W:

800
1000
1500

Item:

Without drum
With drum

The Lofrans X2 Vertical Windlass is a robust chrome bronze unit designed for motor and sailing yachts from 8 to 18 m. It features an IP67-rated heavy-duty motor, anodised aluminium gearbox, and rope/chain gypsy with spring-loaded management arm. Available in 800W, 1000W, and 1500W (12V/24V), with options with or without drum, it supports 6, 8, and 10 mm DIN766/ISO 4565 chains.

Description
Ask a Question

Lofrans X2 Vertical Anchor Windlass – For Boats 8–18 m

The Lofrans X2 Anchor Windlass is built for yachts from 8 to 18 meters, delivering reliable anchoring power with a luxury chrome bronze base and drum. Designed for long service life, the X2 includes a watertight stainless steel ball bearing in the base, ensuring smooth, maintenance-free operation even in harsh marine conditions.

Main Features

Corrosion-Resistant Build: Chrome bronze deck plate and drum, with anodised aluminium gearbox.
Flexible Options: Available with or without drum, in 800W, 1000W, or 1500W configurations.
Independent Operation: Gypsy and drum can be operated separately for improved anchoring control.
Rope & Chain Management: Spring-loaded arm ensures smooth rope/chain transitions.
Manual Chain Release: Provides safe, controlled release of the anchor chain.
Chain Counter Ready: Pre-installed magnet for chain counter integration.
High Protection Rating: IP67-rated motor for secure operation in marine environments.

Standard Equipment

Dual direction solenoid pack
Handle
Gypsy for chain
Instruction manual (CD / print)

Technical Specifications – Lofrans X2

Power (W)	Voltage (V)	Drum Option	Chain Size (mm)	Boat Length (m)
800	12 / 24	With / Without	6 / 8	8–12
1000	12 / 24	With / Without	6 / 8 / 10	10–15
1500	12 / 24	With / Without	10	12–18

The Lofrans X2 Vertical Windlass is an advanced, reliable solution for yachts in the 8–18 m range. With multiple chain size options, durable bronze construction, and flexible drum/no-drum configurations, it ensures safe and efficient anchoring operations. For assistance in selecting the right model, contact the Yacht Supply24 team.
