QUICK Prince DP2 Vertical Anchor Windlass 12V & 24V 300W–1000W for Chain 6/8 mm

ID 1292932

$ 1,400.88

1-2 weeks delivery time

Voltage:

Power, W

300 W
500 W
700 W
1000 W

Item:

Without drum
With drum

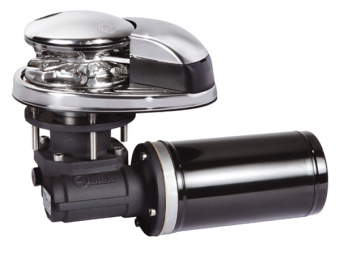

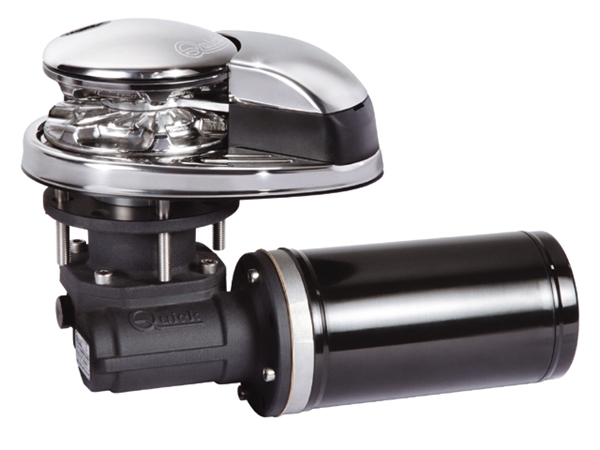

The QUICK Prince DP2 Vertical Anchor Windlass is a versatile anchoring system for boats from 5 to 13 metres (16–43 ft). Available with 300W, 500W, 700W and 1000W motors, in both 12V and 24V configurations, the DP2 series offers models with or without a capstan drum to suit different onboard layouts. Manufactured with an AISI 316 stainless steel deck unit, technopolymer gearbox and waterproof electric motor (IP66 or IP67 depending on motor size), the windlass combines rope and chain handling on a single gypsy while providing integrated chain counter compatibility, manual free-fall operation and easy maintenance through an inspection cover.

Description
Ask a Question

QUICK Prince DP2 Vertical Anchor Windlass 12V & 24V 300W–1000W for 6 mm & 8 mm Chain – Drum & Drumless Versions

The QUICK Prince DP2 is a professional vertical anchor windlass designed for sailing yachts and powerboats from 5 to 13 metres (16–43 ft). Combining compact dimensions with a wide range of motor options, the DP2 series is suitable for both new installations and replacement projects where reliable anchoring performance is essential.

The windlass features a marine-grade AISI 316 stainless steel deck unit, technopolymer gearbox and waterproof electric motor. Depending on the selected motor size, the unit is equipped with an IP66 motor (300–500 W) or an IP67 motor (700–1000 W) for enhanced protection in demanding marine environments.

Prince DP2 windlasses are available in both gypsy-only and gypsy with capstan drum (HS) configurations. The combined gypsy handles both rope and chain on a single wheel, while the integrated chain counter sensor and magnet simplify installation of compatible chain counters. Every model includes a manual free-fall system, inspection lid and pressure lever for convenient operation and maintenance.

Key Features

Vertical anchor windlass for boats from 5 to 13 m.
AISI 316 stainless steel deck unit.
Available with or without capstan drum.
Combined rope and chain gypsy.
Integrated chain counter sensor and magnet.
Manual free-fall anchor deployment.
Pressure lever supplied.
Inspection lid for simplified servicing.
Technopolymer gearbox.
IP66 waterproof motor (300–500 W models).
IP67 waterproof motor (700–1000 W models).

Available Versions

Series	Voltage	Motor Power	Configuration	Recommended Boat Length
DP2	12 V	300 W	Gypsy Only	5–7.5 m (16–25 ft)
DP2	12 V / 24 V	500 W	Gypsy Only	5–9 m (16–30 ft)
DP2 HS	12 V / 24 V	500 W	Gypsy & Drum	5–9 m (16–30 ft)
DP2	12 V / 24 V	700 W	Gypsy Only	7–12 m (23–40 ft)
DP2	12 V / 24 V	1000 W	Gypsy Only	8–13 m (26–43 ft)

Technical Specifications

Specification	Value
Product Type	Vertical Anchor Windlass
Series	QUICK Prince DP2
Installation	Vertical
Motor Power	300 W, 500 W, 700 W or 1000 W
Voltage	12 V or 24 V (depending on version)
Compatible Chain	6 mm or 8 mm (depending on selected gypsy)
Compatible Rode	Combined Rope & Chain
Deck Material	AISI 316 Stainless Steel
Gearbox	Technopolymer
Motor Protection	IP66 (300–500 W) / IP67 (700–1000 W)
Chain Counter Preparation	Integrated Sensor & Magnet
Free-Fall System	Manual
Inspection Lid	Included
Pressure Lever	Included
Available Configurations	Gypsy Only or Gypsy & Drum (HS)
Recommended Boat Length	5–13 m (16–43 ft)

Applications

Sailing yachts and powerboats.
Vertical anchor windlass installations.
Rope and chain anchor rode systems.
New installations and replacement windlasses.

Note: The Prince DP2 series is available in multiple power ratings, voltages, chain standards and drum configurations. Please verify the required voltage, chain size, gypsy type and drum option before ordering.

Documents

Quick DP2 user manual Size: 2,2 Mb

QUICK Prince DP2 Anchor windlass 12,24V for boats 5-13 meters, chain 6,8 mm Size: 3 Mb
