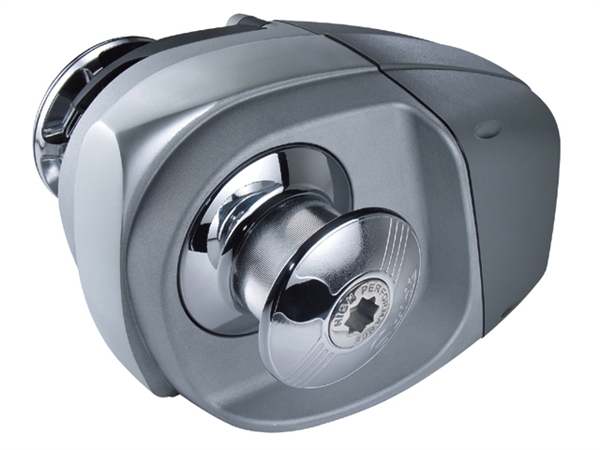

QUICK Hector Drum Horizontal Anchor Windlass 12V & 24V 700W–1500W for 8 mm Chain

ID 1282433

$ 3,184.62

1-2 weeks delivery time

Voltage:

Power, W

1000 W
1500 W

The QUICK Hector Horizontal Anchor Windlass with Drum is a heavy-duty anchoring solution designed for boats from 7 to 15 metres (23–50 ft). Available with 700W, 1000W and 1500W motors in 12V and 24V versions, every model in this range features an integrated capstan drum for additional rope handling capability. Built with a hard-anodized aluminium base, a composite or anodized aluminium housing and an IP66 waterproof motor, the Hector combines rope and chain operation on a single gypsy while offering integrated chain counter compatibility, manual free-fall functionality, emergency manual recovery and an integrated solenoid for simplified installation.

Description
Ask a Question

QUICK Hector Horizontal Anchor Windlass with Drum 12V & 24V 700W–1500W for 8 mm Chain

The QUICK Hector is a premium horizontal anchor windlass with integrated capstan drum, designed for powerboats and sailing yachts from 7 to 15 metres (23–50 ft). Combining a compact horizontal layout with an integrated solenoid system, the Hector series provides reliable anchoring performance while simplifying installation and electrical connections.

The windlass features a hard-anodized aluminium base together with a protective housing manufactured from either marine composite material or hard-anodized aluminium. The chromed bronze gypsy and integrated capstan drum allow convenient handling of both rope and chain, while the waterproof IP66 motor and technopolymer gearbox ensure dependable operation in harsh marine environments.

The Hector series is available with 700 W, 1000 W and 1500 W motors in both 12 V and 24 V versions. Every model is supplied with a capstan drum and includes an integrated chain counter sensor and magnet, manual free-fall system, emergency manual recovery, inspection cover, pressure lever and integrated solenoid unit.

Key Features

Horizontal on-deck anchor windlass with integrated capstan drum.
Hard-anodized aluminium base.
Composite or hard-anodized aluminium protective housing.
Combined rope and chain gypsy.
Integrated chain counter sensor and magnet.
Integrated solenoid unit.
Manual free-fall anchor deployment.
Emergency manual recovery system.
Pressure lever supplied.
Inspection cover for maintenance access.
IP66 waterproof motor.
Technopolymer gearbox.

Available Versions

Motor Power	Voltage	Configuration	Compatible Chain	Recommended Boat Length
700 W	12 V / 24 V	Gypsy & Drum	8 mm	7–10 m (23–33 ft)
1000 W	12 V / 24 V	Gypsy & Drum	8 mm	10–13 m (33–43 ft)
1500 W	12 V / 24 V	Gypsy & Drum	8 mm	12–15 m (39–50 ft)

Technical Specifications

Specification	Value
Product Type	Horizontal Anchor Windlass with Drum
Series	QUICK Hector
Installation	Horizontal (On-Deck)
Motor Power	700 W, 1000 W or 1500 W
Voltage	12 V or 24 V (depending on version)
Compatible Chain	8 mm DIN766 (optional 6 mm DIN766 and 10 mm ISO gypsies available)
Compatible Rode	Combined Rope & Chain
Capstan Drum	Included on all versions
Base Material	Hard-Anodized Aluminium
Housing Material	Composite or Hard-Anodized Aluminium
Gearbox	Technopolymer
Motor Protection	IP66 Waterproof
Chain Counter Preparation	Integrated Sensor & Magnet
Solenoid	Integrated
Free-Fall System	Manual
Emergency Recovery	Manual Lift System
Inspection Cover	Included
Pressure Lever	Included
Recommended Boat Length	7–15 m (23–50 ft)

Applications

Powerboats and sailing yachts.
Horizontal anchor windlass installations.
Combined rope and chain anchoring systems.
Boats requiring an integrated capstan drum.

Note: This product family includes only drum-equipped (Gypsy & Drum) versions. Standard configuration uses an 8 mm DIN766 gypsy, while 6 mm DIN766 and 10 mm ISO gypsies are available as optional configurations.

Documents

Drilling templates Hector HC3 Size: 91,3 Kb

Technical Manuals Hector HC3 Size: 2,9 Mb

QUICK Hector Anchor windlass 12,24V with drum for boats 10-13 meters, chain 8 mm Size: 3,1 Mb
