The QUICK Prince DP1 Vertical Anchor Windlass is a compact anchoring solution designed for boats from 5 to 9 metres (16–29 ft). Available in 300W and 500W motor configurations, with 12V or 24V options depending on the model, the DP1 is offered in both gypsy-only and gypsy with drum versions. Constructed with an AISI 316 stainless steel deck unit, hard-anodised aluminium base, technopolymer gearbox and an IP66 waterproof motor, it delivers dependable anchoring performance while occupying minimal deck space. Every version includes an integrated chain counter sensor and magnet, manual free-fall system, and inspection cover for easy maintenance.
- Description
- Ask a Question
-

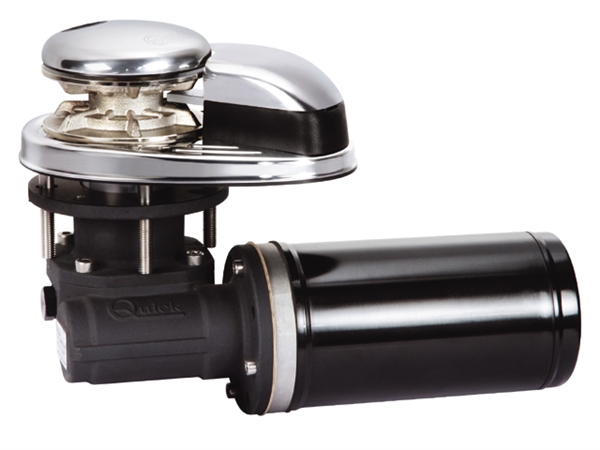

QUICK Prince DP1 Vertical Anchor Windlass 12V 300W & 500W for 6 mm Chain – Drum & Drumless Versions
The QUICK Prince DP1 is a compact vertical anchor windlass developed for boats from 5 to 9 metres (16–29 ft). Designed for installations where deck space is limited, the Prince DP1 combines a marine-grade AISI 316 stainless steel deck unit with a hard anodised aluminium base, IP66 waterproof motor and lightweight technopolymer gearbox for long-lasting reliability.
The series is available in multiple configurations including 300 W and 500 W motors, gypsy-only or gypsy with drum versions, and 12 V or 24 V power supply depending on the selected model. All versions are designed for 6 mm anchor chain and include an integrated chain counter sensor and magnet, manual free-fall mechanism and inspection cover for simplified servicing.
The Prince DP1 is supplied complete with gearbox, operating lever and mounting hardware, making it a practical solution for sailing yachts and powerboats requiring a compact yet capable anchoring system.
Key Features
- Vertical anchor windlass for boats from 5 to 9 m.
- Available with or without capstan drum.
- AISI 316 stainless steel deck unit.
- Hard anodised aluminium base.
- IP66 waterproof electric motor.
- Technopolymer gearbox.
- Integrated chain counter sensor and magnet.
- Manual free-fall anchor deployment system.
- Inspection cover for simplified maintenance.
- Compatible with 6 mm DIN 766, ISO or 1/4" BBB chain depending on version.
Available Versions
Model Voltage Motor Power Configuration Recommended Boat Length DP1 12 V 300 W Gypsy Only 5–7.5 m (16–25 ft) DP1 12 V 500 W Gypsy Only 5–8.5 m (16–28 ft) DP1 24 V 500 W Gypsy Only 5–8.5 m (16–28 ft) DP1 HS 12 V 500 W Gypsy & Drum 5–7.5 m (16–25 ft) DP1 HS 24 V 500 W Gypsy & Drum 5–8.5 m (16–28 ft)
Technical Specifications
Specification Value Product Type Vertical Anchor Windlass Series QUICK Prince DP1 Installation Vertical Motor Power 300 W or 500 W Voltage 12 V or 24 V (depending on version) Compatible Chain 6 mm DIN 766 / ISO or 1/4" BBB (depending on gypsy) Deck Material AISI 316 Stainless Steel Base Material Hard Anodised Aluminium Gearbox Technopolymer Motor Protection IP66 Chain Counter Preparation Integrated Sensor & Magnet Free-Fall System Manual Inspection Cover Included Available Configurations Gypsy Only or Gypsy & Drum Recommended Boat Length 5–9 m (16–29 ft)
Applications
- Powerboats and sailing yachts.
- Compact foredeck installations.
- Boats requiring 6 mm anchor chain.
- New installations and replacement windlass systems.
Note: The Prince DP1 series is available with several gypsy standards (DIN 766, ISO or 1/4" BBB) and in both gypsy-only and gypsy with drum configurations. Please verify the required chain standard, voltage and configuration before ordering.
Documents
Quick DP1 manual Size: 2,6 Mb -
