Italwinch Sun 3500 - 7500W Drum Windlass for vessels 28-45 m, chain 12/13 mm

1-2 weeks delivery time
Price incl. 19% VAT

Voltage:

230/400
24

Electric power, W:

3500
4000
5500
7500

Size, mm:

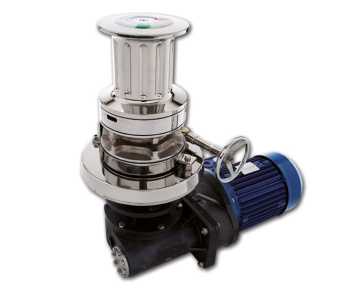

The Italwinch Sun Anchor Windlass, available in power options ranging from 3500W to 7500W, features a built-in drum and is designed for larger vessels measuring 28 to 45 meters in length. Constructed entirely from stainless steel, it offers exceptional durability and resilience, making it suitable for anchor chains ranging from 12mm to 13mm in thickness, such as DIN766 chains. An ISO circuit version of this windlass is also available.

Description
Ask a Question

Installation is compatible with decks measuring 130mm to 170mm in thickness. While the anchor chain counter is available upon request, please note that it is not included as part of the standard order. This Italwinch Sun Anchor Windlass is a reliable choice for larger vessels, ensuring secure and efficient anchoring operations.

Features:

Voltage, B	Chain thickness, mm	Standard	Power, W	Power, A	Drop speed, m/min	Reel	Maximum load, kg	Workload, kg
24	13	DIN 766	3500	195	12	Da	2700	1500
24	16	DIN 766	3500	195	12	Da	2700	1500
230/400	13	DIN 766	4000		12	Da	3100	1600
230/400	16	DIN 766	4000		12	Da	3100	1600
230/400	13	DIN 766	5500		12	Da	3500	1700
230/400	18	DIN 766	7500		12	Da	3600	1800
