ID
1293830
$ 1,249.06
1-2 weeks delivery time
Type:
- High
- Low
Voltage:
- 12V
- 24V
Item:
- Panel ECO
The Tecma Compass Marine Toilet, developed with Tony Castro Yacht Design, combines compact dimensions with advanced functionality. Available in both standard (21.5 kg) and short (19.5 kg) versions, this toilet is designed for installation on flat or angled walls. Equipped with a MAC 4 12/24V macerator pump, a solenoid inlet (with optional inlet pump), and an ECO rocker control panel, it ensures quiet operation, minimal water usage (0.5–2.7 L per flush), and easy installation. The thermosetting seat features a soft-closing system, reducing noise and preventing damage.
- Description
- Ask a Question
-

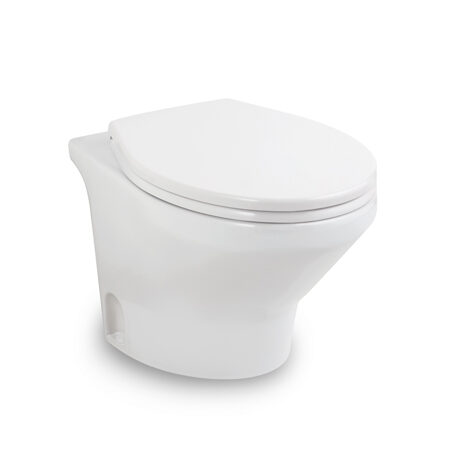

Tecma Compass Marine Toilet – ECO Panel
The Tecma Compass Marine Toilet is a compact and modern sanitation solution developed in collaboration with Tony Castro Yacht Design. Its smart footprint and cutaway back allow flexible installation against flat or angled walls, maximizing available space on board. The Compass is available in two versions – standard and short – ensuring the perfect fit for a wide range of vessels.
Key Features:
- Compact and space-saving design
- Available in two versions: Standard (21.5 kg) and Short (19.5 kg)
- Flexible installation: suitable for flat or oblique walls, even close to the hull
- MAC 4 12/24V outlet pump with high reliability
- Solenoid water inlet (optional inlet pump)
- ECO rocker switch as standard control (other panels optional)
- Quiet operation with low water and energy consumption
- Thermosetting seat with soft-closing mechanism
Technical Specifications:
Model Weight Water Usage Seat & Cover Outlet Pump Inlet Device Control Panel Compass (Standard) 21.5 kg (47.3 lbs) 0.5 – 2.0 L (0.1 – 0.5 gal) Thermosetting with soft-closing MAC 4, 12/24V Solenoid / Optional inlet pump ECO rocker switch (other options available) Compass Short 19.5 kg (40.0 lbs) 0.5 – 2.7 L (0.1 – 0.7 gal) Thermosetting with soft-closing MAC 4, 12/24V Solenoid / Optional inlet pump ECO rocker switch (other options available)
The Tecma Compass toilet range combines style, functionality, and eco-efficiency, ensuring comfort and reliability on board. Chosen by prestigious yacht builders such as Absolute, Cranchi, Galeon, Oryx, Silvercraft, and Dominator, the Compass is a trusted marine sanitation solution for vessels worldwide.
-
