Tecma Elegance 2G Short Electric Marine Toilet is a compact sanitary solution designed for yachts from 50 to 100 ft (15–30 m). Engineered for installation on a 10 cm (3.9 in) raised step, it features a reduced ceramic shell height of 36 cm (14.2 in) while maintaining a comfortable seat height of 46 cm (18.1 in). Available in 12V, 24V and 230V versions, the toilet supports both above-floor and through-floor installation, includes an SFT All-in-One control panel, uses a MAC 11 discharge pump with a solenoid inlet system, and delivers low water consumption of 0.5–2.7 L per flush.
- Description
- Ask a Question
-

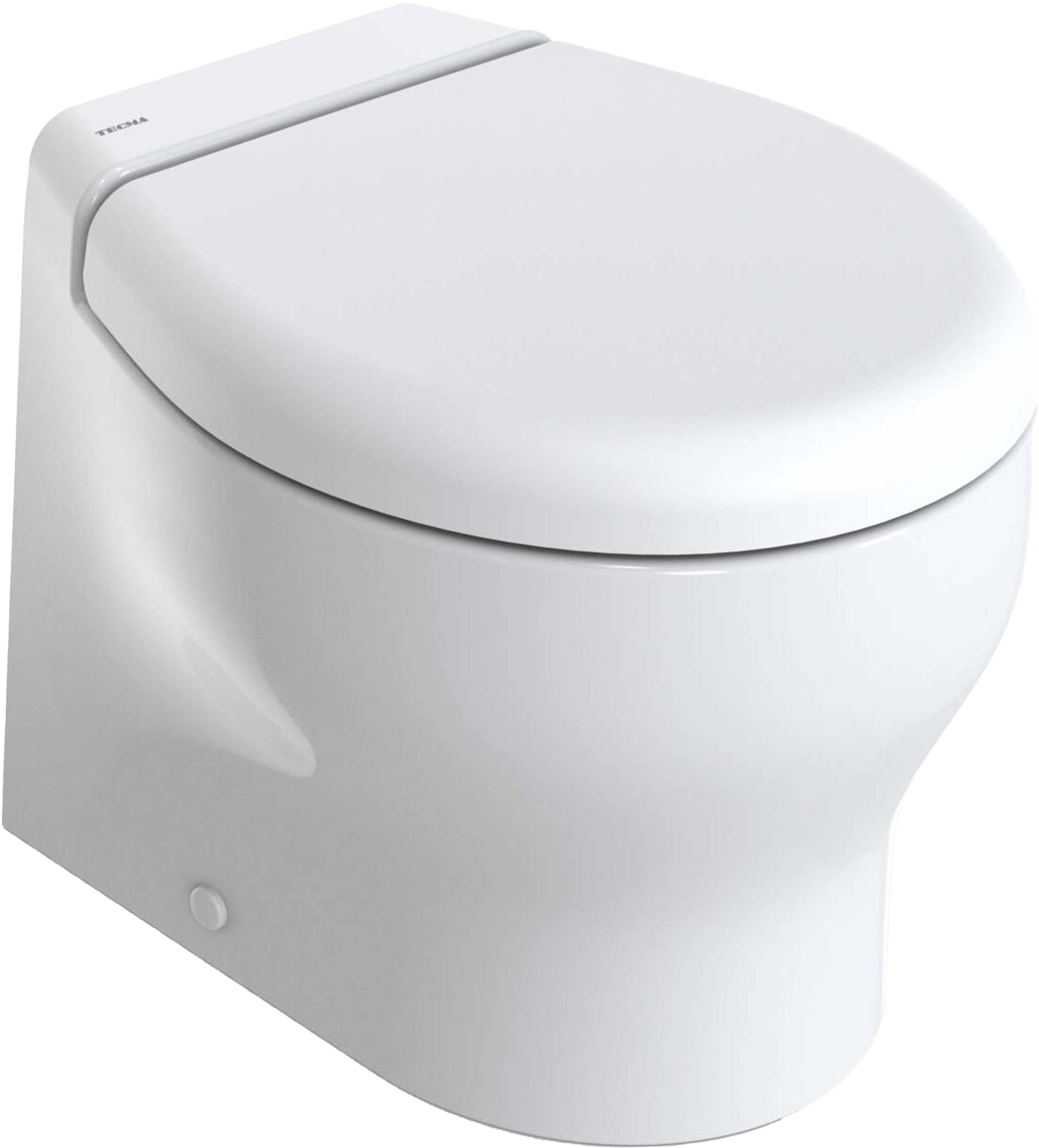

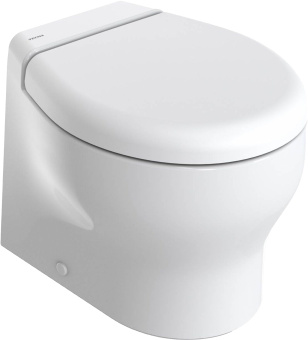

Tecma Elegance 2G Short Electric Marine Toilet for Raised Step Installation
The Tecma Elegance 2G Short is an electric marine toilet developed for yachts from 50 to 100 ft (15–30 m), combining compact dimensions, installation flexibility and onboard comfort. As the small bowl model of the Flexi Line range, it is specifically designed for installations where available space is limited while maintaining the same ergonomic seating position found in larger sanitary systems.
Designed for installation on a raised platform approximately 10 cm (3.9 in) high, the toilet features a reduced ceramic shell height of 36 cm (14.2 in), providing a standard seating height of 46 cm (18.1 in). The compact bowl length of 43 cm (16.9 in) maximizes usable cabin space while delivering a comfortable seating position.
Key Features
- Recommended for yachts from 50–100 ft (15–30 m)
- Compact small bowl design with 43 cm (16.9 in) bowl length
- Designed for installation on a 10 cm (3.9 in) raised step
- Ceramic shell height: 36 cm (14.2 in)
- Standard seating height: 46 cm (18.1 in)
- Available in 12V, 24V and 230V versions
- Suitable for VIP, guest and crew bathrooms
- Low water consumption of 0.5–2.7 L per flush
- Italian ceramic construction
- Improved 2nd Generation system
- Control panel included
Installation Options
- Above-floor installation (Shallow Bowl): Eliminates the need for floor cut-outs by integrating the flush motor and hoses within the available installation space, reducing shipyard labor while maintaining full performance.
- Through-floor installation (Deep Bowl): Requires a floor cut-out to accommodate the motor and hoses, providing increased bowl depth and additional user comfort.
Technical Specifications
Specification Value Recommended yacht size 50–100 ft (15–30 m) Power supply options 12V / 24V / 230V Water consumption 0.5–2.7 L per flush Bowl type Small bowl Bowl length 43 cm (16.9 in) Ceramic shell height 36 cm (14.2 in) Recommended raised step height 10 cm (3.9 in) Seat height 46 cm (18.1 in) Discharge pump MAC 11 (12/24V) Optional discharge pump MAC 11 (110/230V) Water inlet system Solenoid valve Optional inlet system Inlet pump Standard control panel SFT All-in-One Optional control panels Multiframe SFT / Touch SFT Multifunction Standard color White Optional colors Available on request
Seat and Lid Options
- Polyester coated wood
- Polyester coated wood with soft-close (white)
- Polyester coated wood with soft-close (black)
- Thermoset seat
- Thermoset seat with soft-close (white)
- Thermoset seat (white or bone)
Standard Equipment
- SFT All-in-One control panel included
- Complete solenoid valve system for bypassing the onboard water system
- MAC 11 discharge pump
- Italian ceramic bowl
- Improved 2nd Generation flushing system
Applications
The Tecma Elegance 2G Short is designed for installations where interior volume must be optimized without sacrificing comfort. Its compact profile, flexible installation configurations and multiple voltage options make it suitable for new yacht construction as well as refit projects, providing a consistent sanitary solution throughout VIP, guest and crew accommodation areas.
-
