TECMA Silence Plus 2G Short Marine Toilets

ID 1293863

$ 1,763.90

1-2 weeks delivery time

Voltage:

12V
24V
230V

Item:

Panel Standard
Panel Multiframe

Tecma Silence Plus 2G Short Electric Marine Toilet is a compact big-bowl marine sanitation system designed for raised-step installation on yachts and boats. Featuring a reduced ceramic shell height of 360 mm (14.2 in) while maintaining a comfortable 460 mm (18.1 in) seating height, it is available in 12V, 24V and 230V configurations with Standard or Multiframe control panels. Equipped with a MAC 11 discharge pump, solenoid inlet system, low water consumption of 0.5–2.7 L per flush and multiple seat options, it delivers residential comfort together with flexible installation and efficient onboard operation.

Description
Ask a Question

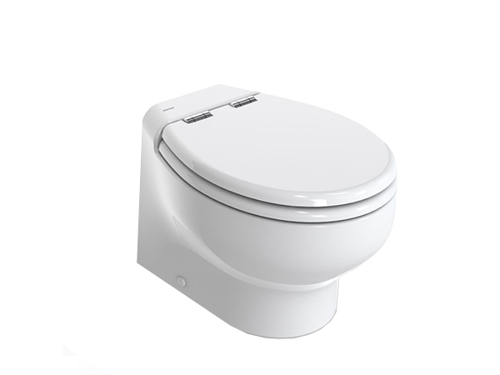

Tecma Silence Plus 2G Short Electric Marine Toilet for Raised Step Installation

The Tecma Silence Plus 2G Short is the compact version of the Silence Plus 2G, the "big bowl" model within the Flexi-Line range. Designed for yachts and boats where installation space is limited, it combines household-style comfort with a reduced-profile ceramic body that is optimized for raised-step mounting while maintaining the same ergonomic seating position as a standard toilet.

Designed to be installed on a raised platform approximately 100 mm (3.9 in) high, the ceramic shell height is reduced to 360 mm (14.2 in), resulting in a standard seating height of 460 mm (18.1 in). The large 510 mm (20.1 in) bowl provides enhanced comfort, while the improved 2nd Generation flushing system delivers quiet, efficient and reliable performance.

Key Features

Large "big bowl" design for residential-style comfort
510 mm (20.1 in) bowl length
Designed for installation on a 100 mm (3.9 in) raised step
Reduced ceramic shell height of 360 mm (14.2 in)
Standard seating height of 460 mm (18.1 in)
Available in 12V, 24V and 230V versions
Compatible with Standard and Multiframe control panels
Improved 2nd Generation flushing system
Quiet flushing operation
Italian ceramic construction
Low water consumption of 0.5–2.7 L per flush
Suitable for yachts and boats requiring space-efficient sanitary installations

Installation Benefits

Optimized for raised-step installation without compromising seating comfort.
Hidden installation design enhances the appearance of the bathroom.
Side-fixing installation system simplifies mounting.
Smooth ceramic surfaces facilitate cleaning.
Integrated safe air admittance valve improves discharge line ventilation.
Optimized hydraulic design helps prevent siphoning and backflow.
Reduced installation time and shipyard labor requirements.

Technical Specifications

Specification	Value
Model	Silence Plus 2G Short
Bowl type	Big bowl
Power supply options	12V / 24V / 230V
Water consumption	0.5–2.7 L (0.1–0.7 gal) per flush
Ceramic shell height	360 mm (14.2 in)
Seat height	460 mm (18.1 in)
Bowl length	510 mm (20.1 in)
Overall dimensions (H × W × D)	360 × 390 × 510 mm (13.8 × 15.4 × 20.1 in)
Footprint	405 × 280 mm (15.9 × 11.1 in)
Weight	23.5 kg (51.8 lb)
Discharge pump	MAC 11
Water inlet system	Solenoid valve
Optional inlet system	Inlet pump
Standard control panel	All-in-One SFT
Optional control panels	Multiframe SFT / Touch SFT Multifunction
Standard color	White
Optional colors	Bone / Black

Seat and Cover Options

Polyester coated wood
Polyester coated wood with soft-close (white)
Polyester coated wood with soft-close (black)
Thermosetting seat
Thermosetting seat with soft-close
Available in white or bone finish

Outlet Pump Specifications

Parameter	Specification
Pump model	MAC 11
Available voltages	12V DC / 24V DC / 110–125V AC / 220–240V AC
Maximum pump capacity	270 L/min (71.3 gpm)
Maximum vertical head	11 m (36.1 ft)
Maximum horizontal distance	90 m (295.3 ft)
Outlet connection	1.5 in (38.5 mm required ID)

Applications

The Tecma Silence Plus 2G Short is designed for yachts and boats requiring maximum comfort within limited installation space. Its compact raised-step configuration, large bowl, efficient flushing system and multiple electrical configurations make it suitable for a wide variety of onboard sanitary layouts while maintaining consistent Flexi-Line design throughout the vessel.
