ID
1345011
$ 1,772.55
1-2 weeks delivery time
-
+

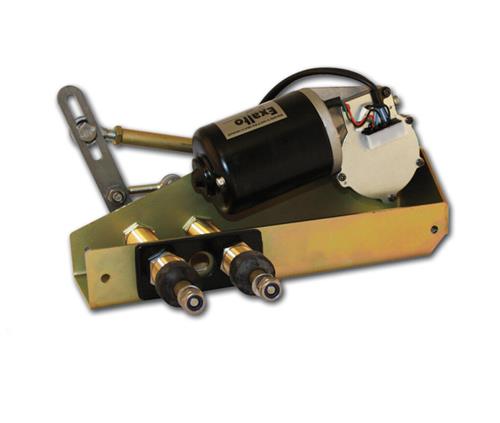

Exalto EWT 285BS Compact 55° is a 24 V HD2 bulkhead-mounted wiper motor delivering 85 Nm torque with a fixed 55° wiping angle. It is designed for professional use and features self-parking and interval control.
- Description
- Ask a Question
-
Exalto EWT Wiper 285BS Compact 24V 55° 85Nm Bulkhead 25mm
The Exalto EWT 285BS Compact 55° wiper motor is designed for demanding applications where a wider wiping angle is required. This 24V DC bulkhead-mounted motor from the HD2 series delivers 85 Nm of torque and supports long wiper arms and blades. With self-parking and interval speed functionality, it provides consistent and reliable wiping performance in professional environments.
Key Features
- Fixed 55° wiping angle
- 24V DC bulkhead-mounted design
- High torque output of 85 Nm
- Self-parking function
- Speed interval control
- Ungrounded design
Technical Data
Sales Unit 1 piece Voltage 24 V Type VDC Power 85 W Torque 85 Nm Angle Of View 55° Driven Axles 2 Drive Shaft Diameter 25.5 mm Shaft Length 93 mm Wall Thickness 25 mm Distance HoH 60 mm Arm Type HD2 P12 Maximum Arm Length 1500 mm Maximum Blade Length 1200 mm Recommended Fuse Rating 15 A Maximum Amperage 12 A Ungrounded yes Product Width 355 mm Product Depth 250 mm Product Height 170 mm Series HD2
Brand: Exalto Wiper Technologies B.V. (Article code: 2178.085-55) (Barcode: 8720763543638)
-
