Exalto EWT 285BS Compact 90° is a 24 V HD2 wiper motor designed for maximum wiping coverage with a fixed 90° angle and 85 Nm torque. The bulkhead-mounted unit includes self-parking and interval speed control for harsh environments.
- Description
- Ask a Question
-

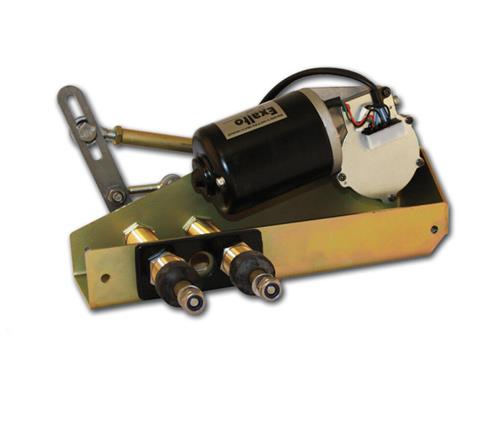

Exalto EWT Wiper 285BS Compact 24V 90° 85Nm Bulkhead 25mm
The Exalto EWT 285BS Compact 90° is designed for applications requiring the widest possible wiping coverage. Powered by 24V DC, this HD2 series bulkhead-mounted wiper motor delivers a powerful 85 Nm torque for smooth and reliable wiping performance. The fixed 90° wiping angle, combined with self-parking and speed interval control, ensures optimal visibility in harsh marine and industrial environments.
Key Features
- Fixed 90° wiping angle
- 24V DC compact bulkhead-mounted wiper motor
- High torque output of 85 Nm
- Self-parking function
- Speed interval control
- Ungrounded design
Technical Data
Sales Unit 1 piece Voltage 24 V Type VDC Power 85 W Torque 85 Nm Angle Of View 90° Driven Axles 2 Drive Shaft Diameter 25.5 mm Shaft Length 93 mm Wall Thickness 25 mm Distance HoH 60 mm Arm Type HD2 P12 Maximum Arm Length 1500 mm Maximum Blade Length 1200 mm Recommended Fuse Rating 15 A Maximum Amperage 12 A Ungrounded yes Product Width 355 mm Product Depth 250 mm Product Height 170 mm Series HD2
Brand: Exalto Wiper Technologies B.V. (Article code: 2178.085-90) (Barcode: 8720763543706)
-
