ID
1345016
$ 1,772.55
1-2 weeks delivery time
-
+
Exalto EWT 285BS Compact 80° is a professional 24 V HD2 wiper motor with 85 Nm torque and a fixed 80° wiping angle. It is designed for wide coverage and includes self-parking and interval functions for reliable performance.
- Description
- Ask a Question
-

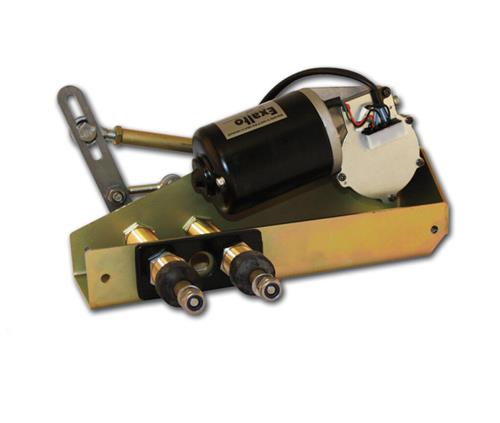

Exalto EWT Wiper 285BS Compact 24V 80° 85Nm Bulkhead 25mm
The Exalto EWT 285BS Compact 80° is a professional bulkhead-mounted wiper motor designed for applications requiring a very wide wiping range. Operating on 24V DC, this compact HD2 series motor delivers a strong torque of 85 Nm, ensuring reliable performance with long wiper arms and blades. Self-parking and speed interval functions provide controlled and efficient wiping in demanding marine and industrial environments.
Key Features
- Fixed 80° wiping angle
- 24V DC compact bulkhead-mounted wiper motor
- High torque output of 85 Nm
- Self-parking function
- Speed interval control
- Ungrounded design
- HD2 series construction
Technical Data
Sales Unit 1 piece Voltage 24 V Type VDC Power 85 W Torque 85 Nm Angle Of View 80° Driven Axles 2 Drive Shaft Diameter 25.5 mm Shaft Length 93 mm Wall Thickness 25 mm Distance HoH 60 mm Arm Type HD2 P12 Maximum Arm Length 1500 mm Maximum Blade Length 1200 mm Recommended Fuse Rating 15 A Maximum Amperage 12 A Ungrounded yes Product Width 355 mm Product Depth 250 mm Product Height 170 mm Series HD2
Brand: Exalto Wiper Technologies B.V. (Article code: 2178.085-80) (Barcode: 8720763543683)
-
