ID
1344907
$ 680.57
1-2 weeks delivery time
-
+
The Exalto EWT wiper 232BD 12 V with an 85° wiping angle delivers dependable MD1 pendulum wiping performance, combining 32 Nm torque, self-parking operation, dual-speed control, and interval function.
- Description
- Ask a Question
-

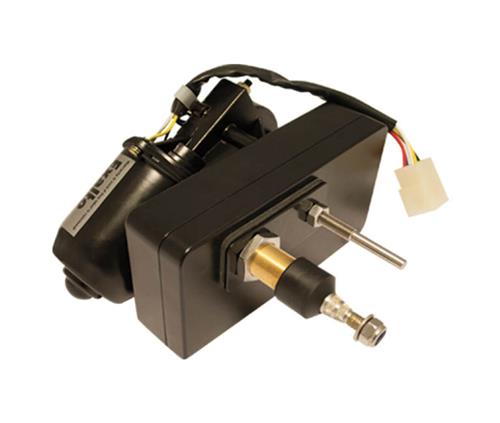

Exalto EWT Wiper 232BD 12V 85° 32Nm Bulkhead 55mm
The Exalto EWT Wiper 232BD with an 85° wiping angle is a 12 VDC wiper motor from the MD1 series, designed for bulkhead mounting. It provides reliable performance with a 32 Nm torque output, dual-speed operation, interval function, and self-parking capability.
Product Details
- Sales unit: 1 Pieces
- Series: MD1
- Suitable for: MD1 series
- Arm type: MD1 PENDULUM
- Driven axles: 1
- Ungrounded: yes
- Self-parking: yes
- Speed interval: yes
Technical Data

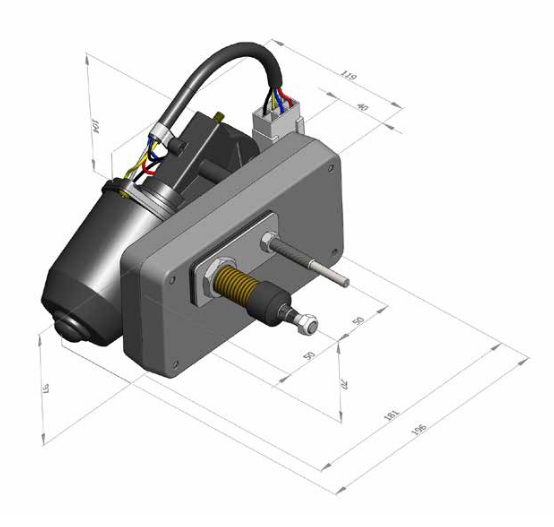

Voltage 12 V Type VDC Power 40 W Torque 32 Nm Wiping angle 85° High speed 56 rpm Low speed 38 rpm Maximum amperage 3 A Recommended fuse rating 6 A Drive shaft diameter 19 mm Support shaft diameter 6.4 mm Shaft length 110 mm Distance HoH 50 mm Maximum arm length 750 mm Maximum blade length 800 mm Product width 200 mm Product depth 234 mm Product height 106 mm Wall Thickness 55 mm
Brand: Exalto Wiper Technologies B.V. (Article code: 2157.35-85) (Barcode: 8720763536012)
-
