The Exalto EWT 223BS 24V 40° single wiper motor provides 25 Nm torque with a defined 40° sweeping angle in a compact MD1 series unit for 20 mm bulkheads, including speed interval control and self-parking for consistent performance.
- Description
- Ask a Question
-

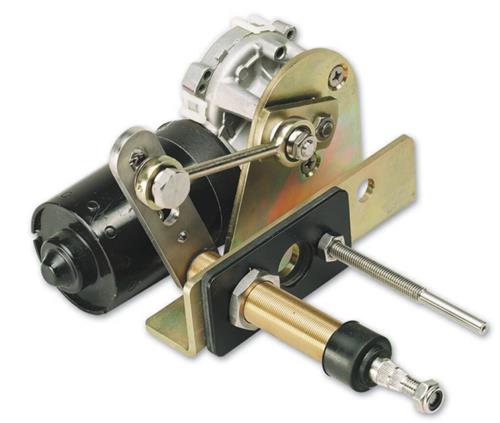

Exalto EWT Wiper 223BS 24V 40° 25Nm Bulkhead 20mm Single
The Exalto EWT 223BS 24V 40° single wiper motor is a reliable MD1 series unit designed for compact bulkhead mounting up to 20 mm. This single configuration provides a defined 40° wiping angle combined with 25 Nm torque, speed interval control, and self-parking for consistent operation.
Key Features
- 40° angle of view
- Single wiper motor execution
- 25 Nm high-torque performance
- Pendulum arm type
- Speed interval and self-parking
Technical Data

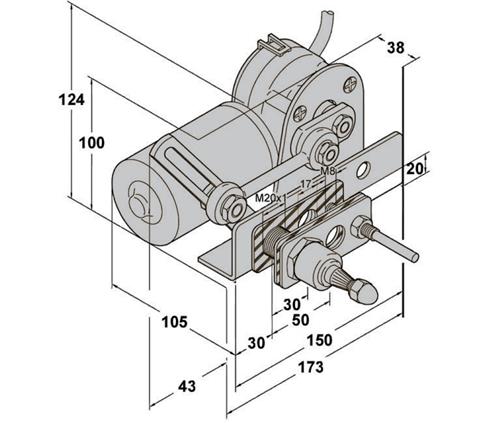

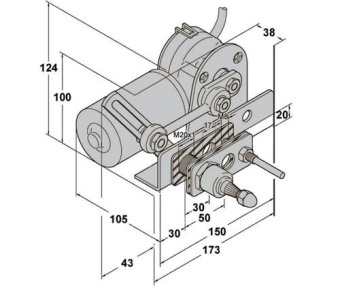

Sales Unit 1 piece Series MD1 Suitable For MD1 series Voltage (V) 24 Type VDC Power (W) 36 Torque (Nm) 25 Angle Of View (°) 40° Driven Axles 1 High Speed (rpm) 60 Low Speed (rpm) 40 Maximum Amperage (A) 1.5 Recommended Fuse Rating (A) 4 Drive Shaft Diameter (mm) 19 Shaft Length (mm) 76 Wall Thickness (mm) 20 Maximum Arm Length (mm) 750 Maximum Blade Length (mm) 750 Product Width (mm) 150 Product Depth (mm) 186 Product Height (mm) 90
Brand: Exalto Wiper Technologies B.V. (Article code: XA2168.30S-40) (Barcode: 8720763542723)
-
