The Exalto EWT 223BS 24V 70° single wiper motor combines 25 Nm torque with extended 70° wiping coverage in a compact bulkhead-mounted design, featuring speed interval control and self-parking for consistent performance.
- Description
- Ask a Question
-

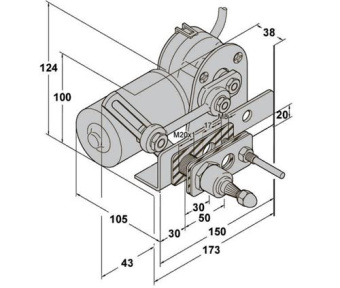

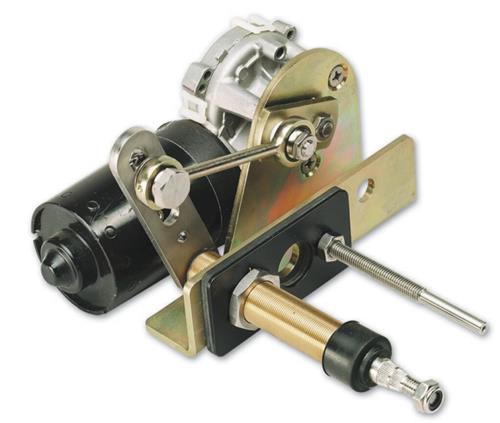

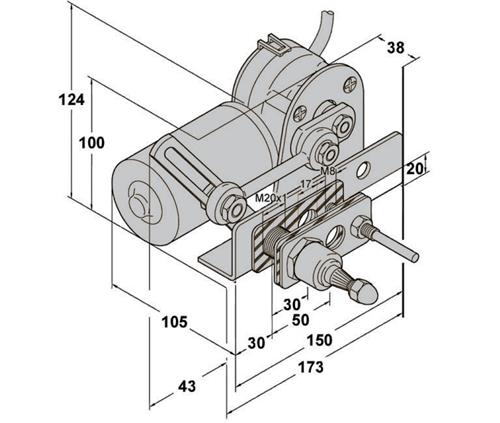

Exalto EWT Wiper 223BS 24V 70° 25Nm Bulkhead 20mm Single
The Exalto EWT 223BS 24V 70° single wiper motor provides extended wiping coverage in a compact bulkhead-mounted design. Part of the MD1 series, this 24V DC motor combines 25 Nm torque with speed interval control and self-parking for consistent performance.
Key Features
- 70° angle of view
- Single motor configuration
- 25 Nm high-torque performance
- Pendulum arm type
- Speed interval and self-parking
Technical Data
Sales Unit 1 piece Series MD1 Suitable For MD1 series Voltage (V) 24 Type VDC Power (W) 36 Torque (Nm) 25 Angle Of View (°) 70° Driven Axles 1 High Speed (rpm) 60 Low Speed (rpm) 40 Maximum Amperage (A) 1.5 Recommended Fuse Rating (A) 4 Drive Shaft Diameter (mm) 19 Shaft Length (mm) 76 Wall Thickness (mm) 20 Maximum Arm Length (mm) 750 Maximum Blade Length (mm) 750 Product Width (mm) 150 Product Depth (mm) 186 Product Height (mm) 90
Brand: Exalto Wiper Technologies B.V. (Article code: XA2168.30S-70) (Barcode: 8720763542785)
-
