ID
1345472
$ 389.12
1-2 weeks delivery time
-
+
The Exalto EWT 223BS 24V 60° single wiper motor offers wider 60° coverage in a compact bulkhead-mounted design, featuring 25 Nm torque, speed interval control, and self-parking for marine and industrial applications.
- Description
- Ask a Question
-

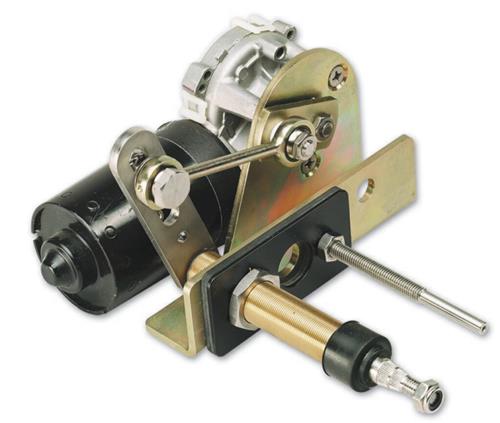

Exalto EWT Wiper 223BS 24V 60° 25Nm Bulkhead 20mm Single
The Exalto EWT 223BS 24V 60° single wiper motor offers wider wiping coverage while maintaining a compact bulkhead-mounted design. Part of the MD1 series, this 24V DC motor delivers 25 Nm torque with speed interval control and self-parking for professional marine and industrial applications.
Key Features
- 60° angle of view
- Single wiper motor configuration
- High torque output of 25 Nm
- Pendulum arm type for MD1 series
- Speed interval function with self-parking
Technical Data
Sales Unit 1 piece Series MD1 Suitable For MD1 series Voltage (V) 24 Type VDC Power (W) 36 Torque (Nm) 25 Angle Of View (°) 60° Driven Axles 1 High Speed (rpm) 60 Low Speed (rpm) 40 Maximum Amperage (A) 1.5 Recommended Fuse Rating (A) 4 Drive Shaft Diameter (mm) 19 Shaft Length (mm) 76 Wall Thickness (mm) 20 Maximum Arm Length (mm) 750 Maximum Blade Length (mm) 750 Product Width (mm) 150 Product Depth (mm) 186 Product Height (mm) 90
Brand: Exalto Wiper Technologies B.V. (Article code: XA2168.30S-60) (Barcode: 8720763542761)
-
