ID
1344878
$ 673.70
1-2 weeks delivery time
-
+
The Exalto EWT wiper 232BD 12 V 50° provides powerful pendulum wiping with 32 Nm torque, self-parking function, and dual-speed operation, designed for professional MD1 bulkhead installations.
- Description
- Ask a Question
-

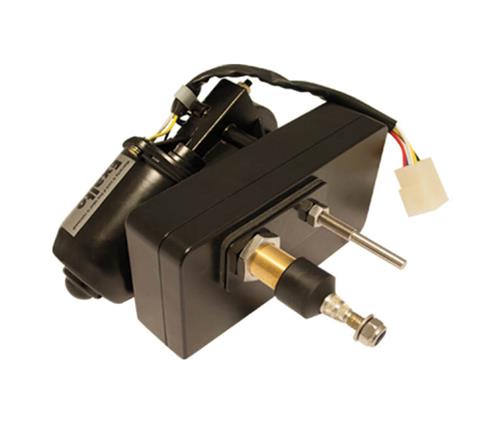

Exalto EWT Wiper 232BD 12V 50° 32Nm Bulkhead 20mm
The Exalto EWT 232BD 12V with a 50° wiping angle is a high-performance pendulum wiper motor for bulkhead installation. Designed within the MD1 series, it delivers strong torque, reliable self-parking, and dual-speed operation for professional applications.
Key Features
- Self-parking pendulum wiper motor
- Speed interval: yes
- 32 Nm torque for demanding conditions
- Bulkhead mounting configuration
- Compatible with MD1 series components
Technical Data

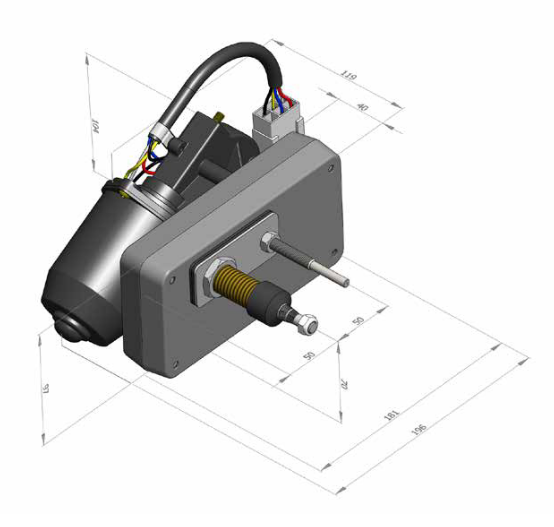

Sales Unit 1 Pieces Voltage (V) 12 VDC Power (W) 40 Torque (Nm) 32 Maximum Amperage (A) 3 Recommended Fuse Rating (A) 6 Drive Shaft Diameter (mm) 19 Support Shaft Diameter (mm) 6.4 Shaft Length (mm) 79 Distance HoH (mm) 50 Wiping Angle (°) 50° Arm Type MD1 Driven Axles 1 High Speed (rpm) 56 Low Speed (rpm) 38 Maximum Arm Length (mm) 750 Maximum Blade Length (mm) 800 Product Width (mm) 200 Product Depth (mm) 202 Product Height (mm) 106 Series MD1 Type (VAC / VDC) VDC Wall Thickness (mm) 20
Brand: Exalto Wiper Technologies B.V. (Article code: 2157.30-50 / Barcode: 8720763535725)
-
