ID
1368731
$ 127.90
1-2 weeks delivery time
-
+
Scout PF AN SVHF007 1/2 λ VHF Antenna With Bracket is a marine VHF antenna with stainless steel whip, aluminium bracket, and no ground plane requirement for easy installation. Article 109014.
- Description
- Ask a Question
-

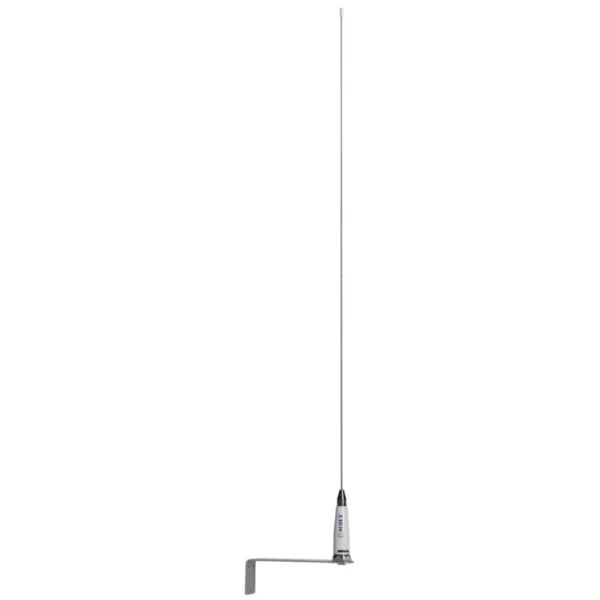

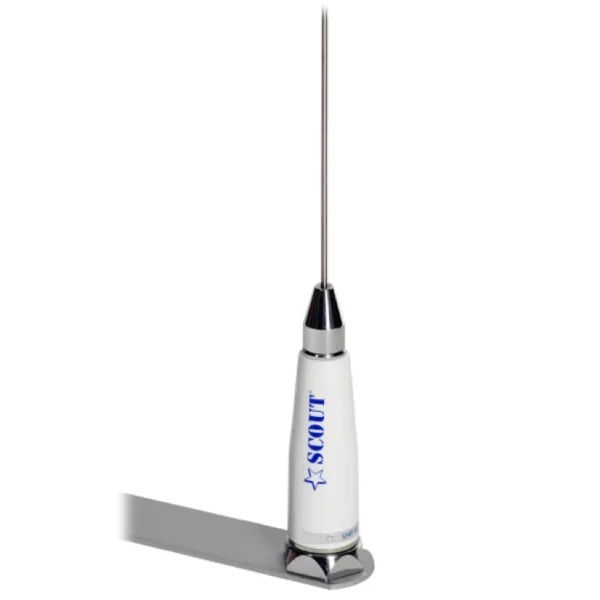

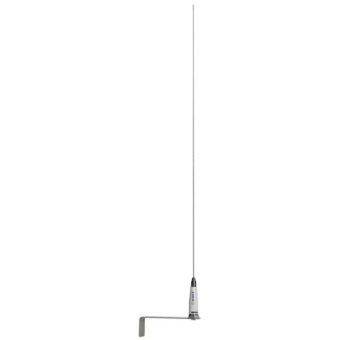

Scout PF AN SVHF007 - 1/2 λ VHF Antenna With Bracket
Overview
Outdoor wall-mounted VHF antenna designed for easy installation using the supplied aluminium bracket. Built for marine environments with excellent sealing and strong resistance to weather conditions. No ground plane required.
Features
- 1/2 λ stainless steel whip
- Marine-grade construction
- SO-239 connector
- No ground plane required
- 20 cm anodized aluminium bracket included
Technical Specifications
Article Number 109014 Original Article Number PF AN SVHF007 Frequency 154–174 MHz Impedance 50 ohm Electrical Length 1/2 λ V.S.W.R. <1,5:1 Polarization Vertical Gain 3 dB Max Power 50 W Bandwidth 3 MHz Whip Material Stainless steel Dimensions 110 cm Weight 250 gr
Brand: Scout
-
