Choosing the correct anchor rope size and length is essential for a reliable anchoring system. For recreational boats, a common starting guideline is approximately 1/8 inch (3.2 mm) of three-strand nylon rope diameter for every 9 feet (2.7 m) of boat length. However, heavier boats and vessels with greater windage may require stronger or thicker ropes.
Anchor rope length depends primarily on water depth, bow height, tidal changes, and the required scope ratio. A rope-and-chain combination also affects how much nylon rope you need to carry and deploy.
This guide includes an anchor rope diameter chart by boat length, a rode length chart by water depth, calculation examples, and practical recommendations for choosing the right anchor rope for your boat.
What Size Anchor Rope Do I Need for My Boat?
The correct anchor rope diameter depends on boat length, displacement, windage, expected anchoring loads, and the rope's construction and strength.
For a typical recreational boat using quality three-strand nylon rope, a common starting guideline is:
Approximately 1/8 inch (3.2 mm) of rope diameter for every 9 feet (2.7 m) of boat length.
This guideline is intended for conventional recreational boats with average displacement and windage. It is not a universal minimum strength requirement.
Different vessel types may require adjustments:
- Average recreational boats: Approximately 1/8 inch of rope diameter per 9 feet of boat length.
- Heavy or high-windage boats: A more conservative starting guideline is approximately 1/8 inch per 8 feet of boat length.
- Lightweight, low-windage boats: Approximately 1/8 inch per 10 feet may be an appropriate starting point.
The final selection must be based on the rope manufacturer's strength specifications and the loads expected for the vessel.
Available boat anchor ropes vary in diameter, construction, material, and length. Check these specifications before purchasing.
Anchor Rope Diameter Chart by Boat Length
The following chart provides approximate diameter recommendations for recreational boats using marine-grade three-strand nylon anchor rope.
The values are practical starting points based on boat length. Actual requirements may differ significantly for heavy-displacement vessels, high-windage motorboats, and specialized anchoring arrangements.
| Boat Length | Approximate Nylon Rope Diameter | Metric Diameter |
|---|---|---|
| Up to 20 ft (6 m) | 3/8 in | 10 mm |
| 21–27 ft (6.4–8.2 m) | 3/8 in | 10 mm |
| 28–32 ft (8.5–9.8 m) | 7/16 in | 11–12 mm |
| 33–36 ft (10–11 m) | 1/2 in | 12–13 mm |
| 37–45 ft (11.3–13.7 m) | 9/16–5/8 in | 14–16 mm |
| 46–54 ft (14–16.5 m) | 5/8–3/4 in | 16–19 mm |
| 55–63 ft (16.8–19.2 m) | 3/4–7/8 in | 19–22 mm |
Important: These are approximate selection guidelines, not guaranteed safe rope sizes for every boat within each length range. Smaller lightweight craft may use other appropriately specified sizes, while heavy vessels may require larger diameters or a different anchoring arrangement.
For example, a 30-foot motorboat with a lightweight hull may have different anchoring loads from a heavy 30-foot trawler with a tall superstructure.
Before purchasing, confirm the rope's published breaking strength, any applicable working load recommendations, and compatibility with the rest of the anchoring system.
How Do Boat Weight and Windage Affect Anchor Rope Size?
Boat length provides a useful initial reference, but it does not fully describe the forces acting on an anchored vessel.
Two boats with the same overall length may require different anchor rope specifications.
Boat Displacement
Displacement influences the vessel's movement and the dynamic loads transmitted through the anchor rode.
A heavy cruising yacht may require a stronger anchoring system than a lightweight recreational boat of similar length.
When comparing rope diameters, consider the boat's actual displacement rather than relying exclusively on its length.
Windage and Above-Water Profile
Windage describes how much of the vessel is exposed to the wind.
Motorboats with high cabins, flybridges, hardtops, and large superstructures can experience substantial wind loads while anchored.
These forces may be significantly greater than those experienced by a lower-profile boat of similar length.
High-windage vessels may therefore require stronger rope, larger diameters, or a more substantial anchoring arrangement.
Expected Anchoring Conditions
Consider whether the boat is normally used for:
- Short stops in sheltered lakes or bays.
- Recreational fishing in coastal waters.
- Daytime anchoring at beaches or sandbars.
- Overnight anchoring in protected locations.
- Extended cruising with varying depths and weather conditions.
More demanding conditions require careful assessment of anchor rode strength, abrasion resistance, shock absorption, and the complete anchoring system.
Breaking Strength vs. Working Load
The minimum breaking strength of a rope represents its performance under specified testing conditions.
It is not the same as the load that should be applied continuously during normal operation.
A properly selected anchor rope requires an appropriate margin for dynamic loads, wear, and changes in operating conditions.
Rope strength can also be affected by knots, splices, abrasion, and deterioration.
Compare the manufacturer's published strength ratings and applicable working-load recommendations instead of selecting rope solely by nominal diameter.
How Long Should a Boat Anchor Rope Be?
The required anchor rope length depends mainly on anchoring depth and the amount of rode needed to maintain an appropriate pulling angle on the anchor.
Boat length does not directly determine how much anchor rope must be deployed.
For example, a 20-foot boat and a 30-foot boat anchoring at the same water depth may require a similar total deployed rode length for the same scope ratio, even though their rope diameters and strength requirements differ.
The calculation is based on anchor scope.
What Is Anchor Scope?
Anchor scope is the ratio between the total deployed anchor rode length and the vertical distance from the boat's bow attachment point to the seabed.
Scope = Total Deployed Rode Length / Vertical Distance to the Seabed
The anchor rode includes both rope and chain when a rope-and-chain arrangement is used.
A larger scope ratio generally creates a shallower pulling angle on the anchor, which can help it remain securely embedded in suitable holding ground.
However, the correct scope depends on the anchor design, rode configuration, weather, seabed conditions, and available swinging room.
Common Anchor Scope Ratios
The following ratios are commonly discussed for recreational anchoring:
- 3:1: A relatively short scope that may be used only in specific arrangements and suitable conditions where the equipment manufacturer permits it. It should not be treated as a general recommendation for conventional rope anchoring.
- 5:1: A common starting point for suitable recreational anchoring in sheltered conditions.
- 7:1: A widely used general guideline for conventional rope and rope-and-chain systems.
- 10:1: Additional scope that may be appropriate in selected demanding conditions when adequate swinging room is available.
There is no universal ratio that guarantees secure anchoring in every situation.
Always consider the anchor manufacturer's instructions, environmental conditions, and space available for the vessel to swing.
Anchor Rope Length Chart by Water Depth
The following chart shows the total anchor rode length required for 5:1 and 7:1 scope at different water depths.
Calculation assumptions:
- The bow attachment point is 1 metre above the water.
- The listed water depth is measured at the maximum water level expected during the anchoring period.
- The table shows the total deployed rode, including rope and any chain.
- No additional allowance for tidal rise is required because the water depths already represent the maximum expected depth.
| Maximum Water Depth | Vertical Distance Including 1 m Bow Height | 5:1 Scope | 7:1 Scope |
|---|---|---|---|
| 2 m | 3 m | 15 m | 21 m |
| 3 m | 4 m | 20 m | 28 m |
| 5 m | 6 m | 30 m | 42 m |
| 7 m | 8 m | 40 m | 56 m |
| 10 m | 11 m | 55 m | 77 m |
| 15 m | 16 m | 80 m | 112 m |
| 20 m | 21 m | 105 m | 147 m |
These figures are calculation examples, not universal recommendations for every anchoring situation.
If the expected high-water level is greater than the depth used in the table, the required rode length must be recalculated.
If the boat's bow attachment point is higher than 1 metre above the water, additional rode may also be required.
For a detailed explanation of different scope ratios and anchoring conditions, see our guide to anchor scope and rode length.
How to Calculate Anchor Rope Length with Chain
A common mistake is confusing the total anchor rode length with the length of the rope alone.
In a rope-and-chain anchoring arrangement, the deployed rode includes both components.
Therefore, the chain length must be considered when calculating how much nylon rope is needed.
Step 1: Calculate the Total Rode Length
If the water depth is measured at the current water level, use the following formula:
L = (D + H + T) × S
Where:
- L: Required total deployed anchor rode length.
- D: Current water depth.
- H: Height of the bow attachment point above the current water level.
- T: Expected additional tidal rise or increase in water level.
- S: Selected scope ratio.
If the depth already represents the highest expected water level, do not add the tidal rise a second time.
Step 2: Calculate the Rope Portion
Once the total deployed rode length has been determined, subtract the chain length that will be deployed.
Rope Length = Total Rode Length − Deployed Chain Length
This calculation determines the approximate amount of rope to deploy for the selected scope.
The total rope carried on board should also provide sufficient reserve for the intended cruising area and anchoring conditions.
Example: A Boat Anchoring in 5 Metres of Water
Consider a recreational motorboat with the following conditions:
- Current water depth: 5 m.
- Bow attachment height: 1 m.
- Expected tidal rise: 1 m.
- Selected scope: 7:1.
- Deployed anchor chain: 5 m.
First, calculate the maximum vertical distance:
5 + 1 + 1 = 7 m
Next, calculate the total deployed rode length:
7 × 7 = 49 m
Now subtract the deployed chain length:
49 − 5 = 44 m
Result: The boat requires approximately 49 metres of total deployed rode, consisting of 5 metres of chain and 44 metres of rope.
At 5:1 scope under the same depth conditions, the calculation would be:
7 × 5 = 35 m total rode
With 5 metres of deployed chain, this leaves approximately 30 metres of rope.
These calculations help determine the amount of rope needed for the selected scope, but they do not replace equipment-specific recommendations or an assessment of anchoring conditions.
How Much Anchor Rope Should You Carry on Board?
The amount of anchor rope carried on board is not necessarily the same as the amount deployed during a typical anchoring stop.
A vessel should carry enough total rode for the depths and conditions it is reasonably expected to encounter.
When planning the total length, consider:
- The maximum water depth in the intended cruising area.
- The boat's bow height above the water.
- Expected tidal variations.
- The scope ratios appropriate for the anchoring system.
- The length of chain included in the rode.
- Available storage space in the anchor locker.
- The possibility of using deeper alternative anchorages.
Is 50 Metres of Anchor Rope Enough?
Fifty metres of rope may be sufficient for some small boats operating in relatively shallow, sheltered waters.
However, the available total rode length depends on whether additional chain is connected to the rope.
For example, with 50 metres of rope and 5 metres of chain, the combined rode length is approximately 55 metres.
At a 7:1 scope, this length corresponds to a maximum vertical distance of approximately 7.9 metres from the bow attachment point to the seabed.
The actual suitable anchoring depth is less than this figure because the bow attachment point is above the waterline.
Any expected tidal rise must also be included.
Is 100 Metres of Anchor Rope Enough?
One hundred metres of anchor rope may provide greater flexibility for boats operating in deeper anchorages.
However, it is not automatically sufficient for every cruising area or vessel.
For example, an anchorage with 15 metres of maximum water depth and a bow attachment point 1 metre above the surface requires:
(15 + 1) × 7 = 112 m of total deployed rode
A 100-metre rope combined with 5 metres of chain would provide only 105 metres of total rode, which is insufficient to achieve 7:1 scope in this example.
Choose the total rope and chain length according to the deepest anchorage you reasonably expect to use.
Should You Carry Extra Anchor Rope?
Carrying a suitable reserve can provide flexibility when the planned anchorage is unavailable or conditions change.
However, excessive rope length can create storage and handling difficulties, particularly in small anchor lockers.
The practical goal is to carry enough suitable rode for the intended application without compromising equipment compatibility or safe handling.
What Type of Anchor Rope Should You Buy?
Marine anchor ropes are manufactured from different synthetic fibers and in different constructions.
For conventional recreational anchoring, nylon is one of the most widely used materials because it combines strength with useful elasticity.
Three-Strand Nylon Anchor Rope
Three-strand nylon is a common choice for recreational anchor rodes.
Its characteristics include:
- Good shock absorption.
- Useful elasticity under dynamic loads.
- Relatively straightforward splicing with appropriate techniques.
- Availability in common marine diameters.
- Suitability for many conventional rope-and-chain arrangements.
Nylon can stretch under load, helping absorb sudden forces caused by wind gusts, waves, and boat movement.
For many small and medium-sized recreational boats, three-strand nylon provides a practical combination of strength, flexibility, and handling convenience.
Eight-Strand and Double-Braided Nylon
Other nylon constructions include eight-strand plaited and double-braided ropes.
Depending on the product, these constructions may offer different handling, storage, and splicing characteristics.
Their elasticity and breaking strength can also differ from those of conventional three-strand nylon.
When selecting braided anchor rope, confirm the manufacturer's specifications and the compatibility of the rope with any installed windlass.
Polyester Anchor Rope
Polyester provides good strength, abrasion resistance, and resistance to ultraviolet exposure.
However, it generally stretches less than nylon under comparable loading.
This makes it less effective at absorbing sudden dynamic loads when used without a suitable shock-absorbing arrangement.
Polyester may be appropriate for selected anchoring systems, but it should not automatically replace nylon in a conventional recreational anchor rode.
Polypropylene Anchor Rope
Polypropylene is lightweight and buoyant.
Although these properties can be useful for certain marine applications, polypropylene is generally not preferred for a conventional primary anchor rode.
Its abrasion resistance, heat resistance, strength, and long-term environmental durability depend on the specific rope construction and specification.
For regular recreational anchoring, quality marine-grade nylon is generally the more practical starting choice.
Anchor Rope vs. Rope-and-Chain Combination
Another important purchasing decision is whether the anchoring system should use rope alone or a combination of rope and chain.
Rope-Only Anchor Rode
An all-rope anchor rode is relatively lightweight, flexible, and easy to store.
It may be suitable for certain small boats making short stops in calm, protected waters.
However, ordinary rope is more vulnerable to abrasion when it contacts rocks, shells, or other rough underwater surfaces.
A rope-only system also lacks the additional weight and abrasion resistance provided by chain near the anchor.

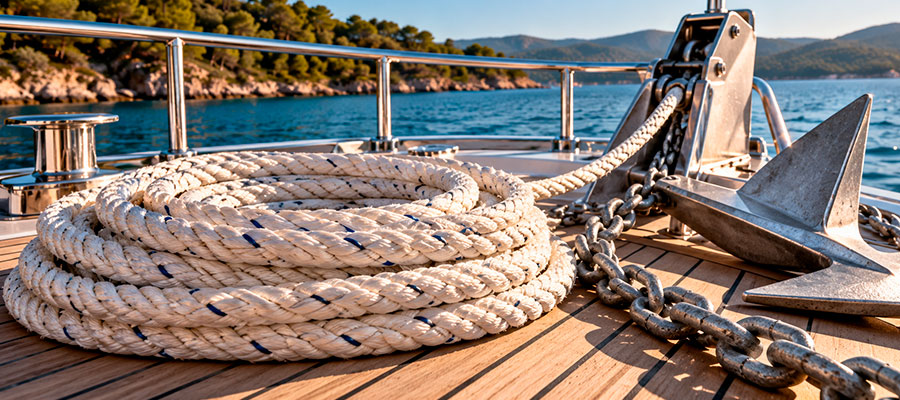

Rope-and-Chain Anchor Rode
Rope-and-chain combinations are commonly used on recreational boats.
The chain is normally positioned between the anchor and the nylon rope.
This arrangement offers several advantages:
- Abrasion resistance: Chain protects the section of rode nearest the seabed.
- Additional weight: Chain contributes to the rode's catenary and may help reduce the pulling angle under suitable loading conditions.
- Shock absorption: Nylon rope provides elasticity that helps reduce sudden loads.
- Handling: A combined rope-and-chain system is generally lighter than an equivalent-length all-chain rode.
- Storage: Rope can offer practical advantages where weight and locker capacity are limited.
The chain must be compatible with the anchor, rope connection, and retrieval equipment.
How Much Anchor Chain Should You Use?
A traditional starting recommendation for recreational rope-and-chain arrangements is to use chain approximately equal to half the boat's length up to the boat's full length.
For example, a 30-foot boat might use approximately 15–30 feet (4.6–9.1 m) of chain, depending on its equipment and operating requirements.
This is a general guideline, not a universal specification.
The correct length of anchor chain depends on the anchoring system, expected seabed conditions, vessel loads, and manufacturer recommendations.
Chain diameter, grade, breaking strength, and connector compatibility must also be considered.
For boats regularly anchoring in deeper water or operating with an all-chain system, a different configuration may be more appropriate.
How to Choose Anchor Rope for a Windlass
If your boat has a powered anchor windlass, rope compatibility is an essential consideration.
Not every rope diameter or construction is suitable for every windlass.
Many combined rope-and-chain windlasses use a specially designed gypsy to handle compatible rope and chain during retrieval.
The rope must match the windlass manufacturer's specifications.
Why Does Rope Diameter Matter for a Windlass?
An undersized rope may slip or fail to engage correctly.
An oversized rope may jam, feed poorly, or interfere with the retrieval mechanism.
Even ropes with the same nominal diameter may behave differently depending on their construction and flexibility.
Before choosing a rope for an anchor windlass, verify:
- The manufacturer's approved rope diameter.
- The permitted rope construction.
- The specified chain diameter and link dimensions.
- The appropriate rope-to-chain connection.
- The windlass gypsy specification.
- The available space in the anchor locker.
Available anchor windlasses support different anchoring configurations. Check the technical requirements for the exact model before buying replacement rope or chain.
Rope-to-Chain Splice vs. Shackle Connection
A rope-and-chain rode can use different connection methods depending on the equipment.
For manually handled systems, a properly constructed rope eye with a suitable thimble and correctly rated shackle may be appropriate.
For compatible rope-and-chain windlasses, a manufacturer-approved rope-to-chain splice may be necessary so the connection can pass through the gypsy.
A bulky shackle and thimble connection generally should not be expected to pass through an automatic rope-and-chain windlass.
Follow the equipment manufacturer's instructions and use suitable professional splicing where required.
Common Mistakes When Choosing Anchor Rope Size and Length
Choosing Rope Based Only on Boat Length
Boat length is useful for an initial estimate, but displacement, windage, expected loads, and equipment compatibility are also important.
Do not treat a general sizing chart as a substitute for the manufacturer's technical specifications.
Using Rope That Is Too Thin
Undersized rope may lack adequate strength or durability for the expected anchoring loads.
Select rope according to its published strength and the operating requirements of the vessel.
Using Rope That Is Too Thick
Excessively thick rope may be difficult to handle or store and can be incompatible with bow rollers, cleats, and windlass components.
A larger rope may also provide less useful elongation under normal operating loads.
Choose an appropriate diameter rather than automatically selecting the thickest available rope.
Confusing Rope Length with Total Rode Length
When calculating scope, include both the deployed rope and chain.
For example, a system with 40 metres of rope and 10 metres of deployed chain provides 50 metres of total rode.
Do not subtract chain length twice or calculate the scope using only the rope portion.
Forgetting About Tidal Rise
Rising water increases the vertical distance between the bow attachment point and the seabed.
If the deployed rode length remains unchanged, the effective scope decreases.
Use the highest expected water level when calculating the required length.
Ignoring Abrasion and Chafe
Rope may be damaged where it passes over bow rollers, fairleads, chocks, or other fittings.
Repeated friction can weaken the fibers and reduce the useful service life of the rope.
Suitable rope chafe guards may help protect compatible marine lines at vulnerable contact points.
Inspect the underlying rope regularly because protective equipment does not eliminate wear.
Choosing Rope That Is Incompatible with the Windlass
Windlass gypsies are designed for specific rope and chain dimensions.
Using incompatible rope can cause slipping, jamming, unreliable retrieval, or equipment damage.
Check the exact windlass specification before purchasing.
Not Allowing Enough Swinging Room
Longer anchor rode generally increases the area through which the boat can swing as wind or current changes.
Before deploying additional rode, make sure the available space is sufficient to avoid other vessels, shorelines, shallow water, and underwater hazards.
Frequently Asked Questions About Anchor Rope Size and Length
What Size Anchor Rope Do I Need for a 20-Foot Boat?
A 3/8-inch (approximately 10 mm) three-strand nylon anchor rope is a common conservative starting choice for a typical 20-foot recreational boat.
The actual rope specification should be selected according to the boat's displacement, windage, expected anchoring loads, and manufacturer recommendations.
What Size Anchor Rope for a 25-Foot Boat?
For a typical 25-foot recreational boat, approximately 3/8-inch (10 mm) three-strand nylon rope is a common starting point.
Heavier or high-windage boats may require a larger diameter or a stronger rope construction.
What Size Anchor Rope Do I Need for a 30-Foot Boat?
For an average 30-foot recreational boat, approximately 7/16-inch (11–12 mm) nylon rope is a common starting recommendation.
A heavier boat or one with substantial windage may require 1/2-inch (12–13 mm) rope or another specification selected according to the expected loads.
What Size Anchor Rope for a 40-Foot Boat?
For a typical 40-foot recreational boat, approximately 9/16-inch to 5/8-inch (14–16 mm) nylon rope may be considered as an initial sizing range.
The final choice must account for vessel displacement, windage, rope strength, and any installed windlass.
How Long Should Anchor Rope Be for a 20-Foot Boat?
The length depends primarily on anchoring depth, bow height, tidal changes, and the required scope ratio rather than the boat's length.
For example, with a maximum water depth of 4 metres and a bow attachment point 1 metre above the surface, a 7:1 scope requires:
(4 + 1) × 7 = 35 metres of total deployed rode.
The rope portion is calculated after subtracting the deployed chain length.
How Much Anchor Rope Do I Need for a 30-Foot Boat?
The required rope diameter depends partly on boat size, but the required rope length depends mainly on water depth and scope.
For example, at a maximum water depth of 10 metres with a bow attachment point 1 metre above the surface, 7:1 scope requires 77 metres of total deployed rode.
If 10 metres of chain are deployed, approximately 67 metres of rope are needed for that example.
Is 50 Feet of Anchor Rope Enough?
Fifty feet (approximately 15 metres) may be adequate for certain small boats making short stops in very shallow, sheltered water.
However, if the vertical distance from bow to seabed is 4 metres, a 5:1 scope requires 20 metres of total deployed rode.
In that situation, 50 feet of total rode would be insufficient to achieve 5:1 scope.
Is 100 Feet of Anchor Rope Enough?
One hundred feet (approximately 30 metres) may be sufficient for some relatively shallow recreational anchorages.
For example, with a total vertical distance of 4 metres, a 7:1 scope requires 28 metres of total deployed rode.
Deeper water, greater bow height, and higher tidal rise may require more length.
Is 3/8-Inch Anchor Rope Strong Enough?
Three-eighths-inch nylon rope is commonly used for certain smaller recreational boats.
However, its suitability depends on the actual rope breaking strength, construction, boat displacement, windage, and expected loads.
Do not assume all 3/8-inch ropes have identical strength ratings.
What Is the Best Type of Rope for a Boat Anchor?
Marine-grade three-strand nylon is a widely used choice because it combines strength, elasticity, and shock absorption.
Eight-strand and other suitable nylon constructions may also be used when they meet the requirements of the vessel and anchoring equipment.
Should Anchor Rope Be Nylon or Polyester?
Nylon is commonly preferred for conventional recreational anchoring because its elasticity helps absorb shock loads.
Polyester has lower stretch and can be suitable for selected systems when dynamic loading is appropriately managed.
How Much Chain Should I Use with Anchor Rope?
A traditional starting guideline is approximately half the boat's length to a full boat length of chain.
However, the actual chain length depends on the anchoring arrangement, bottom conditions, expected loads, and manufacturer recommendations.
Can I Use a Larger Anchor Rope Than Recommended?
A larger rope may provide additional strength, but it can also be harder to handle, occupy more storage space, and be incompatible with anchoring equipment.
Choose a diameter that meets the required strength and performance specifications without compromising compatibility.
How Often Should Anchor Rope Be Replaced?
There is no universal replacement interval for every anchor rope.
Service life depends on rope material, construction, loading history, abrasion, exposure, and maintenance.
Inspect rope regularly and replace it when damage or deterioration makes continued use unsafe, following the manufacturer's recommendations.
Final Recommendations: Choosing the Right Anchor Rope
Choosing the correct anchor rope diameter and length requires consideration of both the vessel and its anchoring conditions.
For conventional recreational boats, three-strand nylon is a practical starting choice because it provides useful elasticity and shock absorption.
When selecting the diameter, begin with a suitable boat-length guideline and verify the rope's strength against vessel displacement, windage, and expected loads.
When calculating rope length, use the maximum expected vertical distance from the bow attachment point to the seabed and multiply it by the selected scope ratio. Remember that the total deployed rode includes both rope and chain.
A properly specified rope-and-chain arrangement can combine the abrasion resistance and weight of chain with the elasticity and handling advantages of nylon rope.
Finally, confirm compatibility with the anchor, shackles, splices, cleats, bow roller, and windlass. Inspect the complete anchoring system regularly and replace damaged components before they compromise its reliability.
By selecting suitable rope strength, diameter, length, and construction, boat owners can build an anchoring system that matches their vessel and intended cruising conditions.
