What rod to use with Lofrans windlass?
Pairing your Lofrans windlass with the right anchor rode transforms your ground tackle from a collection of parts into a unified, dependable system. This partnership allows your electric windlass to work as designed, effortlessly managing the heavy lifting so you can focus on positioning. Getting this match right brings a satisfying simplicity to anchoring, whether you're preparing a weekend cruiser or a liveaboard vessel. A well-chosen anchor rode safeguards your windlass from strain, streamlines every retrieval, and builds confidence whenever you set the anchor.
From the commanding Lofrans Tigres windlass to the steadfast Lofrans Royal, each model is built with distinct components for specific tasks. The entire operation centers on two key parts at the bow: the windlass gypsy and the drum. Think of the gypsy as a tailored chain wheel; its notches are precision-cut to fit one specific chain size. Alongside it, the drum is dedicated to managing rope rode. Ignoring this engineered pairing invites trouble—slippage, rapid wear, or a groaning electric motor that can’t perform.
This brings us to the essential choice every skipper faces: a full chain system or a hybrid of rope and chain. An all-chain setup engages perfectly with the manual chain gypsy, providing exceptional holding power through its weight and catenary. For numerous boats and yachts, however, combining a moderate chain leader with a rope rode strikes a fine balance, significantly cutting down weight in the anchor locker. The specifics here are vital: the strand pattern of your anchor line and a tidy, robust splice must be appropriate for your windlass’s design. Before making a final decision, a close review of your windlass manual and conversations on a seasoned boating forum will offer practical guidance tailored to real-world use.
Understanding Lofrans Windlass Systems

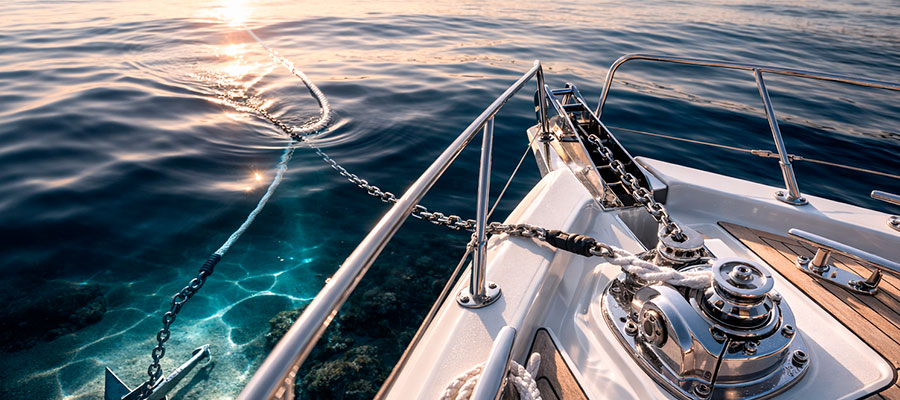

Think of your Lofrans system as a dependable partner at the bow, designed to take the heavy lifting out of anchoring. At its heart, the electric motor provides the power, but it's the gipsy—that specially machined chain wheel—that does the precise work of gripping and guiding your rode. Lofrans offers various models where this teamwork between motor and mechanical parts is finely tuned, ensuring your anchor comes up smoothly every time you press the switch.
Key differences between horizontal and vertical windlass models
Your boat's anatomy often dictates the choice between these two fundamental windlass designs. A horizontal unit sits low on the deck, commonly selected for vessels with limited vertical space in the anchor locker, and typically arranges its drum and chain gypsy side-by-side.
Conversely, the vertical style rises higher, tucking its electric motor below decks for a sleeker profile but demanding more depth below for the chain to fall cleanly. Envisioning how the anchor rode will travel into the locker is the best way to decide which configuration aligns with your boat's unique layout.
Popular options like the Lofrans Project 1000, Dorado, and Tigres
Each of these models serves a distinct purpose, so picking one depends on your boat size and anchoring style. The Project 1000 is a compact, affordable vertical workhorse, while the Dorado offers robust horizontal power, and the Tigres is the premier choice for serious offshore vessels.
- Lofrans Project 1000: A reliable vertical model for mid-sized boats, known for its straightforward installation.
- Lofrans Dorado: A powerful horizontal windlass designed for all-chain rodes and heavy-duty use.
- Lofrans Tigres: A top-tier horizontal windlass built for larger yachts, offering exceptional power and durability.
How a marine winch supports anchor handling on your boat
A marine winch fundamentally transforms a strenuous, manual chore into a manageable, push-button task. By taking the massive strain off your back and arms, it provides a level of convenience and safety that lets you focus on boat positioning.
- It supplies the mechanical muscle to retrieve a heavy anchor and a long, weighted rode from the depths.
- It brings a controlled, reliable process to anchoring, which is vital for safety in poor weather or when sailing short-handed.
Choosing the Right Chain and Rope Combination

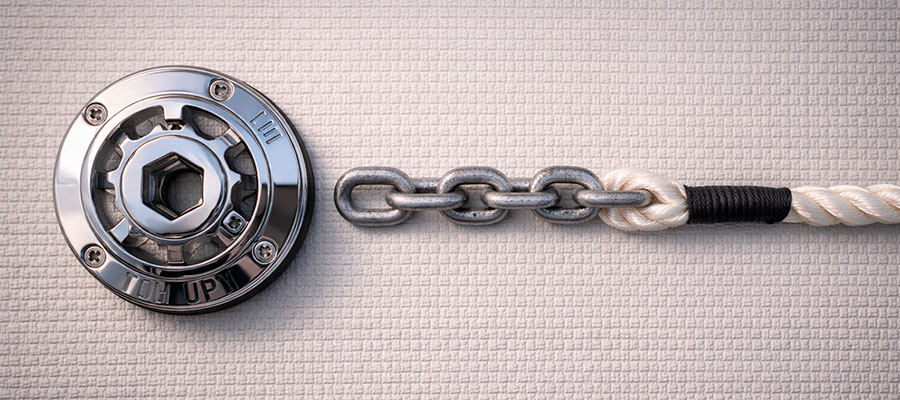

The synergy between your chain, rope, and windlass defines the entire anchoring experience. Success hinges on the chain locking securely into the windlass's gipsy without a hint of slip or bind. Many skippers favor a classic three strand nylon for the rope portion, valuing its forgiving nature and the straightforward way it marries to chain with a reliable splice. The objective is to craft a rode that feels like a natural extension of the windlass itself, enabling effortless operation rather than creating a constant battle.
What a chain rode is and why it matters
A chain rode serves as the robust, weighted backbone of your ground tackle, linking anchor to vessel. Its mass creates a deep curve in the water—a catenary—that acts as a natural shock absorber, softening the boat's tugging from wind or waves. This downward pull also helps keep the anchor shank low, encouraging the fluke to bury itself deeply and hold fast. While chain is virtually impervious to chafe on rough bottoms, its heft does add weight forward. To manage this, a popular compromise is a hybrid system: a generous length of chain at the anchor joined to a longer, lighter rope rode.
Matching rope type and diameter to your Lofrans windlass
The rope must partner perfectly with your windlass's drum, where the correct diameter ensures it winds on cleanly without slipping or bunching. An ill-fitting line, whether too slim or too fat, is a direct path to frustrating tangles and halted retrieval.
- Your windlass manual is the definitive source for the approved rope specifications.
- Three strand nylon remains a top recommendation due to its shock absorption and splice-friendly profile.
Selecting stainless steel or BBB chain for durability
The choice between stainless steel and BBB (or Grade 30) chain involves a balance of budget, corrosion resistance, and strength. BBB chain is a galvanized workhorse with excellent strength for its weight, while stainless offers a cleaner look and superior corrosion resistance but at a higher cost and with slightly different wear characteristics.
- Stainless steel chain offers a sleek appearance and high corrosion resistance but commands a premium price.
- BBB chain provides high tensile strength with a protective galvanized coating, making it a durable and cost-effective standard.
Compatibility with Specific Lofrans Models
Always start with the manual for your specific model, as each Lofrans windlass is engineered for particular gear. The gipsy is not a one-size-fits-all part; it's precisely sized for a specific chain link profile. Using even a slightly different chain can lead to poor grip and accelerated wear, so confirming this match is the first and most vital step in your setup.
Recommended rode setup for the Lofrans Project 1000 and Project 1500
| Lofrans Model | Primary Recommendation | Alternative Rode Option | Key Consideration |
|---|---|---|---|
| Project 1000 | 8mm (5/16") High-Test Chain | 10mm (3/8") Nylon Braid with 8mm Chain Leader | The chain gypsy is specifically calibrated for the 8mm link profile for secure engagement. |
| Project 1500 | 10mm (3/8") High-Test Chain | 12mm (1/2") Nylon Three-Strand with 10mm Chain Leader | The stronger motor and gypsy design are optimized for the larger 10mm chain dimension. |
Chain and rope specs suitable for the Lofrans Dorado and Royal models
While both are capable units, the Lofrans Dorado and Royal are conceived for distinct roles. The Dorado excels as a pure chain-handling workhorse, engineered to move robust chain sizes with authority. The Royal, often chosen for combination rodes, requires you to pair the correct chain size for its gypsy with a compatible rope rode for its drum. Precision is paramount; even a slight deviation in link dimension can prevent the chain from nesting properly in the chain wheel. For a hybrid setup on the Royal, a low-profile connection between your rope and chain is necessary to glide over the pressure finger without a hitch.
Cayman horizontal windlass configuration and setup tips
This compact horizontal model is a space-saver but requires precise installation to function correctly. The key is ensuring a perfectly aligned and unobstructed path for the chain from the bow roller into the chain gypsy.
- Verify the chain size matches the gypsy wheel exactly before final mounting.
- Ensure the anchor drops and retrieves in a straight line to prevent side-loading and jams.
Installing and Configuring the Rode System
A flawless installation guarantees the rode flows unimpeded from the depths of the anchor locker up to the windlass. The angle of approach into the gipsy is critical—a severe bend here will cause the rode to stack poorly or derail. When creating the union for a three strand line, a neat, tapered splice is necessary to avoid hanging up on the pressure finger as it transitions onto the drum.
How to feed chain and rope correctly through the gypsy
Proper feeding is all about alignment and a clean lead-in. The rode should approach the gypsy at the correct angle, as specified in your manual, to ensure it engages the pockets cleanly without twisting or jumping.
- For rope, ensure it lands neatly on the drum without overlapping sporadically.
- For chain, listen for a consistent "click-click" as each link seats into the gypsy, indicating correct engagement.
Checking alignment between anchor, windlass, and chain locker
Misalignment is a primary culprit behind most windlass grievances, making initial precision a worthwhile investment. Trace the ideal path: from the anchor, through the bow roller, directly into the chain gypsy, and down a clear, centered shot into the anchor locker. Any deviation or contact point along this route creates drag and invites jams. You can validate this flow by hand-pulling the entire anchor rode through the system. Dedicating time to perfect this alignment pays dividends in years of seamless, trouble-free operation.
Common installation mistakes to avoid with marine winches
| Mistake Category | Specific Oversight | Potential Consequence | Recommended Practice |
|---|---|---|---|
| Structural Support | Mounting solely to a deck plate without backing plate. | Deck flex and stress cracks under heavy load. | Reinforce with a substantial backing plate beneath the deck to distribute force. |
| Rode Alignment | Poor lead angle from the hawsepipe to the gypsy or drum. | Chain jump-off, rope piling, and accelerated wear on components. | Ensure a straight, centered feed path; use a diverter roller if necessary. |
| Electrical Setup | Undersized circuit wiring or neglecting a circuit breaker. | Voltage drop, motor strain, and increased fire risk. | Follow the manual's exact wire gauge specs and install a proper DC breaker. |
| Deck Sealing | Inadequate bedding compound for mounting fasteners. | Persistent water intrusion leading to core rot and fastener corrosion. | Use a high-quality marine sealant and fully bed each fastener. |
Electrical Controls and Operating Accessories
Your control system is your direct line of command to the electric motor. Whether you choose a simple foot switch at the bow or a more sophisticated remote, reliable waterproof connections are non-negotiable for safety. Many skippers add a deck washdown hose nearby, which makes cleaning mud off the chain and anchor line as easy as the retrieval itself.
Using foot switches and control box with your Lofrans windlass
Foot switches offer hands-free control right where you need it, at the bow, while a remote control box provides flexibility. Both need to be installed with robust, waterproof connections to withstand the marine environment.
- Position foot switches where they are easy to reach but won't be accidentally activated.
- Ensure all connections in the control box are secure and protected from moisture to maintain reliable electric motor operation.
Understanding the motor operation on manual and electric models
On manual models, you supply the power through a hand crank, directly driving the chain wheel. On electric models, pressing the switch activates the electric motor, which then engages the gearbox to turn the gypsy or drum.
- The electric motor converts battery power into rotational force to haul the rode.
- Manual operation provides a reliable backup, using a handle to turn the chain wheel directly.
Safety tips when connecting the power switch or remote
Working with your windlass's electrical system demands respect, as you're dealing with high-current circuits that can pose a real hazard. Always, without exception, disconnect the main battery terminals before you touch any wiring for the power switch, remote, or electric motor. Double-check that every connection is tight, clean, and properly insulated to prevent arcing, which can lead to electrical failure or even a fire. Use the exact wire gauge specified in your windlass manual to handle the motor's amp draw and prevent dangerous voltage drop or overheating.
A properly installed fuse or circuit breaker of the correct amperage is your essential safety net, protecting the wiring if a jam causes the motor to stall. Taking your time with these steps isn't just about making it work; it's about ensuring every anchoring operation begins and ends safely.
Maintenance, Replacement, and Long-Term Care
Steady, simple upkeep is the secret to a long-lasting windlass system. Regularly flushing the gipsy and pressure finger with fresh water clears abrasive salt and sediment. Tune your ear to the rhythm of the electric motor; a new whine or labored effort often provides the first clue that components need attention or lubrication.
How to inspect and replace worn chain rode components
Proactive checks prevent minor wear from escalating into a total failure at an inconvenient moment. Scrutinize the chain for elongated, damaged, or corroded links, and give extra focus to the junction where your rope and chain meet.
- Prioritize inspecting the initial 10 meters of chain, as this segment withstands the most stress during retrieval.
- Examine the splice or joining shackle for signs of wear, rust, or fatigue in the surrounding strands.
Cleaning and servicing your stainless steel and motor parts
A post-anchoring freshwater rinse is the most effective habit for preserving all components. For comprehensive care, your manual will outline specific lubrication needs for the chain wheel and internal gears.
- Wash down the gypsy and other deck-level parts to remove grime that causes premature wear.
- As part of an annual check, inspect the electric motor brushes and verify the gearbox oil as directed.
Troubleshooting rode jams or windlass performance issues
The moment your windlass balks, immediate pressure on the switch should cease to protect the electric motor and drive train. Start with a visual scan; often a kinked anchor rode or debris in the chain gypsy is the simple offender. Confirm the chain size hasn't been inadvertently mixed with an incompatible grade. A humming motor without movement points to electrical issues, like poor battery connections or significant voltage drop under load. For deeper electrical or mechanical faults, the dedicated guide in your windlass manual is your best resource for systematic diagnosis.
