Lumishore 60-0495 Eclipse Command Center 3 Zones is a compact lighting controller with built-in drivers for full Eclipse system control via MFD, Wi-Fi, Ethernet, or switch. It manages three zones as standard, expandable to six, and supports effects like dimming, strobe, color selection, and sound-to-light in an IP67-rated housing.
- Description
- Ask a Question
-

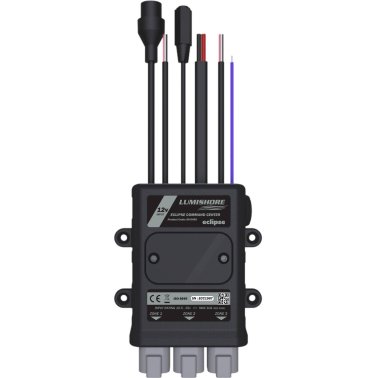

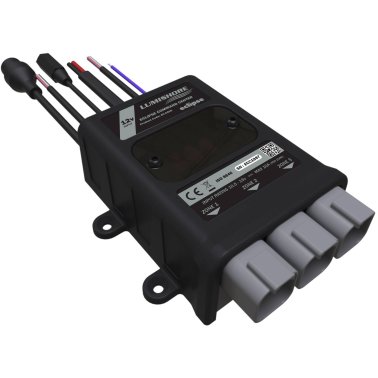

Lumishore 60-0495 - Eclipse Command Center - 3 Zones
The Lumishore Eclipse Command Center is an ultra-compact lighting controller designed for seamless integration and full control of Eclipse lighting systems through your multifunction display (MFD). As the world’s first controller with built-in drivers and multiple lighting zones, it simplifies onboard lighting management while offering advanced customization.
The unit includes three configurable lighting zones as standard, with the possibility to expand up to six zones using additional expansion modules. Integrated Wi-Fi enables direct connectivity, while Ethernet support allows connection to compatible MFDs. Lighting can also be controlled via a simple switch, ensuring flexibility in any installation.
Key Features
- Integrated control for multiple Eclipse lighting zones
- Built-in Wi-Fi and Ethernet connectivity
- Expandable from 3 to 6 lighting zones
- Intuitive Lumishore user interface
- Plug & Play installation
Functions
- Sound-to-light
- Dimmer
- Strobe
- Color selection
Technical Data
Voltage 12 V DC Maximum Current 30 A (3 zones of 10 A) Protection Overvoltage, low voltage, reverse polarity Waterproof Rating IP67 Height 41 mm Width 108 mm Length 110 mm
Brand: Lumishore
Barcode: 0753759367190 -
