Lumishore 60-0522 - NMEA 2000 EOS-LUX Interface

ID 1341337

$ 708.29

1-2 weeks delivery time

- +

Add to cart

Lumishore 60-0522 NMEA 2000 EOS-LUX Interface enables EOS-LUX lighting control through NMEA 2000 networks. It connects directly to the EOS-LUX Command Center, supports 12/24 V systems, and features IP68 protection with advanced electrical safety systems.

Description
Ask a Question

Lumishore 60-0522 - NMEA 2000 EOS-LUX Interface

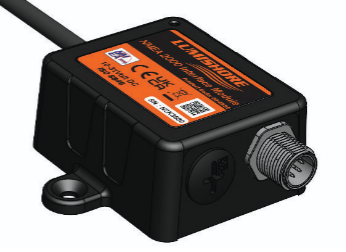

The Lumishore NMEA 2000 EOS-LUX Interface is designed to enable seamless control of EOS-LUX lighting systems through NMEA 2000 messages. It connects directly to the EOS-LUX Command Center and integrates into the vessel’s NMEA 2000 network, allowing advanced third-party lighting control.

Engineered for reliability and ease of installation, this interface features a robust, weatherproof ABS housing with IP68 ingress protection. It includes comprehensive electronic protection systems such as surge protection, reverse polarity protection, and intelligent power management for safe and efficient operation in marine environments.

The unit is NMEA 2000 certified and controlled using proprietary PGNs. It is compatible exclusively with the EOS-LUX Command Center and supports a wide supply voltage range, making it suitable for 12V and 24V DC systems.

Technical Specifications

Supply Voltage Range	10.5–31 V DC
Max Current Draw (12/24V DC)	0.2 A / 0.1 A
Ingress Protection	IP68
Surge Protection	Yes
Automatic Thermal Roll Back (ATRB)	Yes
Low Voltage Protection	Yes
Auto Power Control	Yes – Intelligent Multi-Channel Power Management
Soft Start Electronics Protection	Yes
Reverse Polarity Protection	Yes
In Rush Current Protection	Yes
Power Line Noise Suppression	Yes
ISO 8846 Ignition Protection	Yes

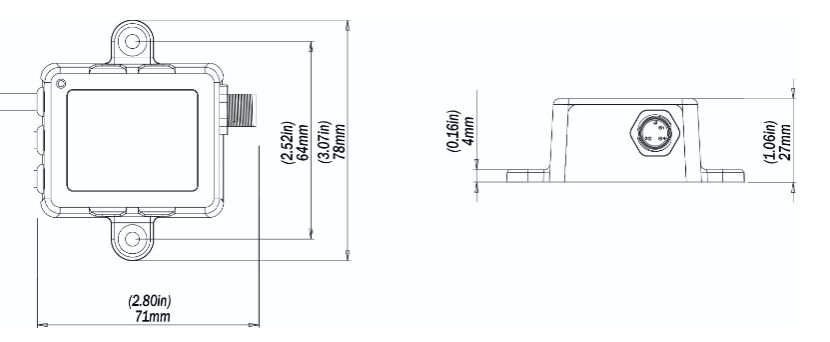

Dimensions (L x W x H)	71 mm x 64 mm x 27 mm
Case Construction	Robust Weatherproof ABS (Flame Retardant and Halogen Free)

Compatibility

For Use With

EOS-LUX Command Center 60-0366

Brand: Lumishore
Barcode: 847772003781
