The Vetus M445A602A marine diesel engine package (Mitsubishi M4.45 with TMC60 i=2.0) is a 4-cylinder, 4-stroke propulsion engine rated at 42 PS / 30.9 kW at 3,000 rpm with 1,758 cm³ displacement. It specifies 98 Nm maximum torque at 3,200 rpm, a 78 x 92 mm bore x stroke, swirl/prechamber combustion, and a heat exchanger cooling arrangement described as a 2-circuit cooling system. The engine operates on a 12V electric system (alternator 12V/110A) and is listed with a maximum installation angle of 15°, weight with gearbox of 185 kg, and service connections including 50 mm exhaust diameter, 20 mm cooling water inlet, and 8 mm diesel inlet/return; engine mounts (KSTEUN75) and dashboard (MP22BS12A) are included.
- Description
- Ask a Question
-

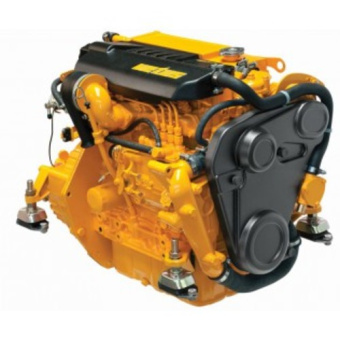

Vetus M445A602A M4.45 Diesel Engine Assembly with TMC60 i=2.0
The Vetus M445A602A, also referenced as the Mitsubishi M4.45 with TMC60 i=2.0, is a marine diesel engine configuration supplied with gearbox. It is specified as a 4-cylinder diesel 4-stroke engine and includes supporting installation components such as engine mounts and a dashboard.
Compatibility
- Vetus M4.45 engine model
- Mitsubishi M4.45 with TMC60 i=2.0 configuration
Technical Specifications
Engine Type Diesel 4-Stroke Cylinders 4 Displacement 1,758 cm³ Max. Power (ISO 3046-1) 42 PS / 30.9 kW Max. Speed 3,000 rpm Maximum Torque at 3,200 rpm 98 Nm Bore x Stroke 78 x 92 mm Combustion Method Swirl/Prechamber Cooling System Heat Exchanger Cooling System (Additional Detail) 2-Circuit Cooling System Maximum Installation Angle 15° Electrical System 12V Electric System Alternator 12V/110A Weight with Gearbox 185 kg Exhaust Diameter 50 mm Cooling Water Inlet Diameter 20 mm Diesel Inlet Diameter 8 mm Diesel Return Diameter 8 mm
Product Details
- Designation in text: Mitsubishi M4.45 with TMC60 i=2.0
- Panel noted: MPA22 panel
Features
- 4-cylinder diesel 4-stroke configuration
- Swirl/prechamber combustion method
- Heat exchanger cooling system with 2-circuit cooling arrangement
- 12V electrical system with 12V/110A alternator
Package Includes
- Engine Mounts (KSTEUN75)
- Dashboard (MP22BS12A)
-
