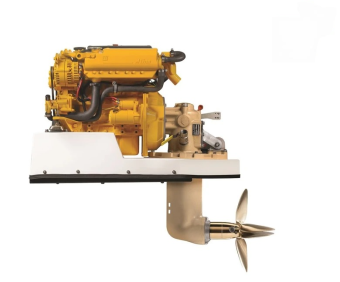

Vetus M435S---A/STM5801 - Mitsubishi M4.35 with SD10 Saildrive i=2.49

Vetus M435S---A - Mitsubishi 33 HP M4.35 Marine Diesel Engine Saildrive Compatible

The Vetus M435S---A Mitsubishi 33 HP M4.35 Marine Diesel Engine Saildrive Compatible is a highly efficient and quiet boat engine designed for optimal performance. This 4-cylinder diesel engine offers a perfect blend of power, fuel efficiency, and quiet operation, making it a reliable choice for boat owners seeking top-tier marine propulsion. With its sleek and modern design, it is engineered to meet the demands of future marine technologies while providing exceptional performance in a variety of boating conditions. The engine is fully compatible with the STM5801 Saildrive, ensuring a seamless and reliable integration for your vessel.

Key Features:

• Quiet and fuel-efficient operation for a superior boating experience
• Water-cooled top cover reduces engine room temperature by 15-20°C, offering a 20% reduction in heat compared to similar engines
• Cast aluminum top cover integrated directly onto the engine body to reduce noise by 5 dB(A)
• Near-silent operation at speeds around 2200 RPM for a peaceful cruising experience
• Equipped with a high-output marine alternator for fast and efficient battery charging
• HVO (Hydrotreated Vegetable Oil) compatibility for eco-friendly operation and a reduction in CO2, CO, HC, NOx, and PM emissions
• Meets SOLAS (Safety of Life at Sea) requirements for safety and performance
• Compact and lightweight design for easy installation and space optimization in your engine room

Specifications:

• Max Speed (RPM): 3000 RPM
• Number of Cylinders: 4
• Max Torque: 83.8 Nm at 1700 RPM
• Power (kW): 24.3 kW
• Max Engine Power (HP): 33 HP
• Engine Type: 4-Cylinder In-Line Diesel Engine
• Displacement: 1.5 L
• Compression Ratio: 22:1
• Fuel Type: Diesel / HVO (Hydrotreated Vegetable Oil) Compatible
• Cooling System: Freshwater Cooled
• Alternator Output: 12 V, 55 A
• Weight: 120 kg (265 lbs)
• Dimensions (L x W x H): 500 mm x 500 mm x 600 mm (19.7 inches x 19.7 inches x 23.6 inches)
• Oil Capacity: 4.5 L (4.75 quarts)
• Fuel Tank Capacity: 50 L (13.2 gallons)
• Exhaust System: Wet Exhaust
• Fuel Consumption: 3.5 L/h at cruising speed (1.7 gallons/hour)
• Noise Level: 75 dB(A) at 2200 RPM
• Max Operating Temperature: 95°C (203°F)
• Certification: ISO 9001, SOLAS Compliant

Compatibility and Application:

The Vetus M435S---A Mitsubishi 33 HP M4.35 Marine Diesel Engine is fully compatible with the STM5801 Saildrive, making it the ideal choice for a variety of marine vessels. Its high torque output and fuel-efficient design ensure optimal performance even under load, while its compact size allows for easy installation in tight engine rooms. Whether for leisure or commercial use, this engine provides excellent power and reliability for all boating activities, including cruising, fishing, and other maritime operations.

Benefits:

• Quiet operation, reducing engine noise by up to 5 dB(A) for a more comfortable boating experience
• Low heat emission and efficient cooling system, keeping engine room temperatures lower by up to 20% compared to competitors
• Eco-friendly with HVO compatibility, reducing environmental impact by cutting emissions by up to 90%
• High fuel efficiency, offering low fuel consumption and long operational hours on a single tank
• Fast battery charging with the included high-output marine alternator
• Compact and space-saving design, perfect for boats with limited engine room space
• Meets all necessary safety standards, including SOLAS for maritime safety
• Durable and reliable construction for long-lasting operation in tough marine conditions
• Efficient and powerful engine performance for various marine activities
• Easy to maintain with access to spare parts and servicing support
