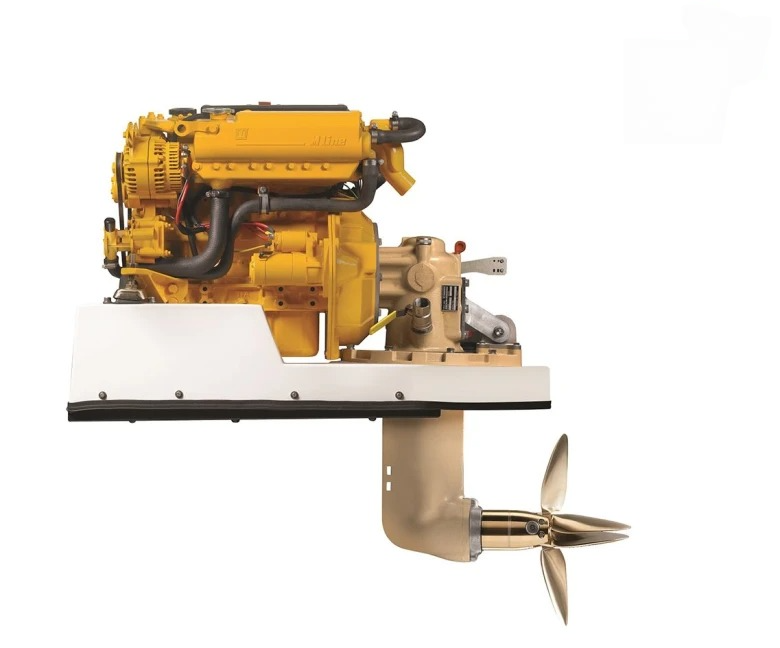

Vetus M218S---A/STM5800 - Mitsubishi M2.18 with SD10 Saildrive i=2.23

Vetus M218S---A - Mitsubishi 16 HP M2.18 Marine Diesel Engine Saildrive Compatible

The Vetus M218S---A Mitsubishi 16 HP M2.18 Marine Diesel Engine is a quiet, highly fuel-efficient engine designed for marine applications. This 2-cylinder engine provides a high power-to-torque ratio, making it ideal for boats with Saildrive systems. Featuring a modern design, it is crafted to meet future market demands while maintaining superior fuel efficiency and performance. Equipped with a water-cooled top cover, the engine reduces engine room temperatures by up to 20%, ensuring optimal performance. The integration of a cast aluminum top cover and state-of-the-art air filter reduces engine noise by 5dB(A), delivering a quieter boating experience. It is also HVO-approved, meaning it can run on Hydrotreated Vegetable Oil for a more sustainable fuel option, reducing carbon emissions by up to 90%. The engine is designed for durability, offering a long-lasting solution for marine and recreational vehicles.

Key Features:

• 16 HP power with a high power-to-torque ratio
• Quiet operation due to cast aluminum top cover and advanced air filter
• Water-cooled top cover lowers engine room temperature by up to 20%
• Runs on Hydrotreated Vegetable Oil (HVO) for sustainable fuel use
• 5dB(A) noise reduction for a quieter boating experience
• High-output marine alternator for fast battery recharging
• Compact, fuel-efficient, and powerful design
• Compatible with STM5800 Saildrive SD10 ZF-2.23R for easy integration

Specifications:

• Max Speed (RPM): 3600
• Number of Cylinders: 2
• Max Torque (Nm): 35.1 Nm at 2000 RPM
• Power (kW): 11.8
• Max Engine Power (HP): 16
• Fuel Type Compatibility: Hydrotreated Vegetable Oil (HVO), Diesel
• Engine Cooling Type: Water-cooled top cover with heat absorption
• Noise Reduction: 5dB(A) reduction with cast aluminum top cover and air filter
• Saildrive Compatibility: STM5800 Saildrive SD10 ZF-2.23R
• Displacement: 1.8L
• Dimensions: 525mm x 500mm x 500mm (L x W x H)
• Weight: 85 kg
• Fuel Consumption: 2.3L/h at 2000 RPM
• Emission Compliance: Meets Euro V standards
• Cooling System: Raw water-cooled
• Start Type: Electric start
• Compression Ratio: 21:1
• Fuel Tank Capacity: 25L
• Engine Mount Type: Rubber mounts for vibration damping
• Alternator Output: 12V, 60A
• Oil Capacity: 4.5L
• Freshwater Capacity: 1L
• Lubrication System: Forced lubrication with oil filter
• Air Filter: High-performance air filtration system
• Starting Battery Capacity: 12V, 100Ah (recommended)
• Maximum Exhaust Temperature: 200°C
• Maximum Exhaust Gas Pressure: 2.5 bar
• Fuel Filter: Integrated fuel filter for improved engine protection
• Oil Change Interval: Every 250 hours or annually

Compatibility and Application:

The Vetus M218S---A Mitsubishi 16 HP M2.18 Marine Diesel Engine is perfect for use in marine applications, especially in boats requiring Saildrive compatibility. It is well-suited for those looking for a fuel-efficient, quiet, and sustainable engine. The engine can easily be integrated with compatible Saildrive systems and is perfect for various recreational vehicles that require reliable and long-lasting performance. Its compact size and high power output make it an ideal choice for boats of various sizes. The ability to use HVO fuel further enhances its appeal for environmentally conscious users.

Benefits:

• Runs on sustainable Hydrotreated Vegetable Oil (HVO) to reduce CO2 emissions by up to 90%
• Quiet operation with 5dB(A) noise reduction
• Water-cooled top cover reduces engine room temperature by up to 20%
• High-output marine alternator ensures fast battery recharging
• Compatible with STM5800 Saildrive SD10 ZF-2.23R for seamless integration
• Compact and fuel-efficient design for efficient space usage on boats
• Low maintenance with durable components designed for long-lasting performance
• Optimized for both performance and sustainability in marine environments
