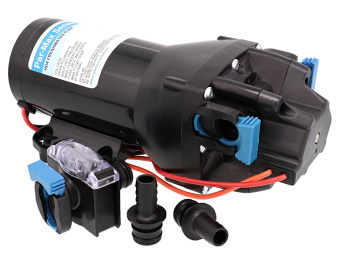

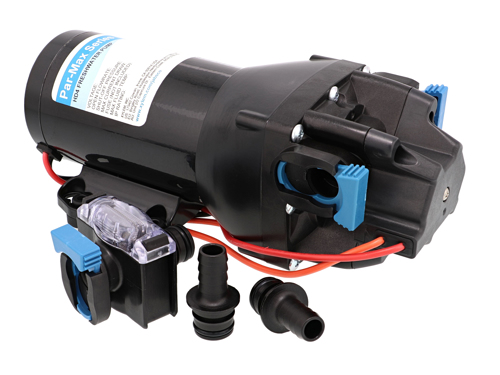

Jabsco Q402J-115S-3A - Par Max HD 4' Pressure-Controlled Pump

Jabsco Q402J-115S-3A - Par Max HD 4' Pressure-Controlled Pump

The Jabsco Q402J-115S-3A Par Max HD 4' Pressure-Controlled Pump is a high-performance, self-priming diaphragm pump designed for marine, agricultural, and industrial applications. Operating on 24V DC, this heavy-duty pump provides a high output of 15 liters/minute (4 gallons/minute) and a maximum pressure of 40 psi (2.8 bar). With its efficient multi-diaphragm design, it offers dry-running capabilities, ensuring safe operation even without water. The pump is equipped with a pressure switch that automatically cuts in at 20 psi (1.4 bar) and cuts out at 40 psi (2.8 bar), making it ideal for systems with multiple outlets.

Key Features:

• Self-priming diaphragm design for high-efficiency water flow.
• Pressure switch with cut-in at 20 psi (1.4 bar) and cut-out at 40 psi (2.8 bar).
• Multi-diaphragm design with the ability to self-prime up to 1.5 meters (5 feet).
• Dry-running capabilities to prevent damage when no water is present.
• Supplied with snap-in ports for 1/2" (13mm) hose and a strainer.
• High-pressure output of up to 40 psi (2.8 bar) and 15 liters/minute (4 gallons/minute) flow rate.
• Heavy-duty motor with cast aluminum lower housings for durability at high pressures.
• Thermal overload protection for safe motor operation.
• Compact design for flexible installation in tight spaces.
• Water-resistant motor with IPX6 rating, suitable for harsh environments.

Specifications:

• Voltage: 24V DC
• Flow Rate: 15 liters/minute (4 gallons/minute)
• Max Pressure: 40 psi (2.8 bar)
• Connections: 13mm (1/2") hose bore
• Dimensions: 239mm long, 109mm wide, 97mm high
• Fuse Size: 10 Amps
• Pressure Switch: Cuts in at 1.4 bar (20 psi), cuts out at 2.8 bar (40 psi)
• Self-Priming: Up to 1.5 meters (5 feet) vertical lift
• Dry Running: Safe operation without water
• Weight: 2.5 kg (Approx. 3.0 kg packed)
• Packaged Dimensions: L: 40.00 cm x H: 14.00 cm x W: 15.00 cm
• Motor: Heavy-duty, corrosion-resistant motor with high-efficiency design
• Thermal Protection: Automatic thermal overload cut-out
• Water Resistance: IPX6 rated motor suitable for wet environments
• Material: Heavy-duty cast aluminum housing for durability and corrosion resistance
• Operating Temperature Range: -10°C to 50°C (14°F to 122°F)
• Continuous Duty Rating: Designed for continuous operation in demanding conditions
• Mounting Type: Flexible installation with vibration-damping mounting options
• Maximum Vertical Lift: 1.5 meters (5 feet)

Compatibility and Applications:

• Perfect for marine, agricultural, and industrial water systems requiring high-flow and high-pressure water delivery.
• Suitable for systems with 13mm (1/2") hose bore, ideal for multi-outlet setups.
• Ideal for self-priming applications, including water transfer and pressure-boosting tasks.
• Perfect for use in boats, RVs, and other mobile systems where reliable water pressure is essential.
• Compatible with a wide range of agricultural irrigation systems and industrial fluid handling systems.
• Excellent for use in pressure washing, filtration systems, and water transfer applications.

Benefits:

• Dry-running capability ensures the pump can operate safely without water, extending the pump’s lifespan.
• Self-priming up to 1.5 meters (5 feet), allowing flexible installation options in varying setups.
• Efficient high-flow design ensures reliable performance under high-pressure conditions for various applications.
• Durable motor and housing materials provide extended service life, even in harsh, high-pressure environments.
• Thermal overload protection ensures safe and reliable operation during long periods of continuous use.
• Ideal for use in various applications, including boats, RVs, industrial systems, and agricultural fields.
• Corrosion-resistant components and IPX6 water-resistant rating ensure reliable performance even in wet or marine environments.
• Compact design makes it easy to install in tight spaces without sacrificing performance.
• High-pressure capability makes it perfect for systems requiring robust water delivery at high PSI.
