The Jabsco 59510-0012 magnetic-drive circulation pump unit delivers efficient 12V DC fluid circulation for marine, RV, and industrial systems, providing up to 12.5 LPM flow with a maximum head of 1.2 m. Its seal-less magnetic drive design supports low-maintenance operation, handles fluids up to 100°C, and fits tight installations with a compact 97 x 100 x 70 mm footprint. With 3/4 inch hose connections, 19 mm hose tails, IP68-rated protection, and 25 W power consumption at full capacity, it is built for reliable continuous-duty circulation.
- Description
- Ask a Question
-

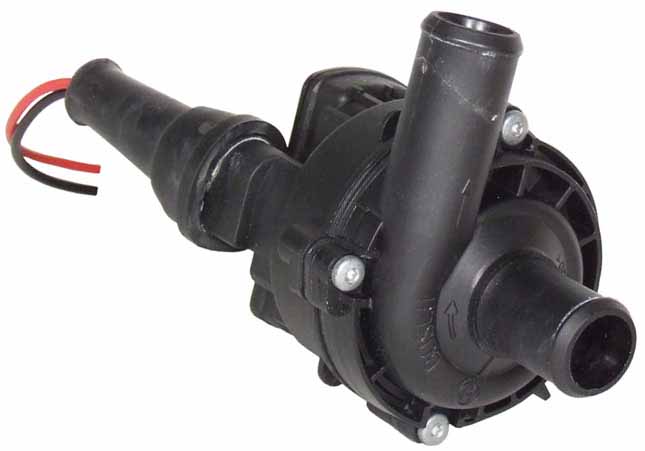

Jabsco 59510-0012 Magnetic-Drive Circulation Pump Unit
The Jabsco 59510-0012 is a compact magnetic-drive circulation pump and motor unit for dependable fluid circulation. Close-coupled to a 12V DC motor, it is designed for continuous circulation duties in marine, RV, and industrial systems while helping reduce maintenance through a seal-less pump head design.
Application
- Fluid circulation in marine cooling, water transfer, and heating systems
- RV, camper, and mobile installations where compact 12V circulation is required
- Industrial circulation tasks requiring moderate pressure and temperature resistance
- Applications include hot water circulation and raw water cooling
Technical Specifications
Brand Jabsco Part Number 59510-0012 Rated Voltage 12V DC Flow Rate Up to 12.5 LPM Maximum Head 1.2 m Operating Pressure Up to 1.5 bar (21.75 psi) Maximum Temperature 100°C (212°F) Power Consumption 25 W (at full capacity) Motor Type Permanent magnet motor Motor Speed 3000 RPM (maximum) Electrical Protection IP68-rated Noise Level Typically less than 45 dB(A) Self-Priming Capability Up to 2 m (6.6 ft) from dry conditions Connections 3/4 inch hose connection Hose Tails 19 mm Dimensions (L x W x H) 97 mm x 100 mm x 70 mm Weight 1.0 kg (approx. 1.2 kg packed) Shipping Weight 0.60 kg Impeller Material Composite material Bearings Sealed ball bearings Electrical Connections Two-pin water-resistant electrical connector
Product Details
- Drive Type: Magnetic drive with a seal-less pump head to help remove the chance of leaks
- Duty Rating: Continuously rated for circulation duties
- Motor Life: Motors last in excess of 10,000 hours (as stated)
- Protection and Compliance: Ignition protected; meets EMC requirements
- Service Support: Spare parts available
Features
- Magnetic-drive technology for efficient, low-maintenance circulation
- Compact design for easier installation in tight spaces
- Designed for continuous use with a long-life brushless DC motor (as stated)
- Rugged, simple design for dependable operation
Important Notes
- Do not use this pump for petrol, petroleum products, or fluids with a flashpoint below 37°C.
- Availability note (as stated): Not available anymore. Alternative: SPX Johnson Pump 10-24502-03.
-
