The Jabsco 5330-9001 flexible-impeller transfer pump is a durable unit for marine and industrial fluid handling, using a corrosion-resistant bronze body, a neoprene impeller, and a carbon/ceramic face shaft seal for reliable, leak-free operation. Its self-priming design supports easy start-up, while manual operation means no electric motor is required. Delivering a flow rate of up to 35 LPM with a maximum pressure of 2.5 bar (36 psi) and an operating temperature range of 0°C to 60°C (32°F to 140°F), it suits bilge pumping, water transfer, and wastewater management, and is compatible with a range of hoses and fittings.
- Description
- Ask a Question
-

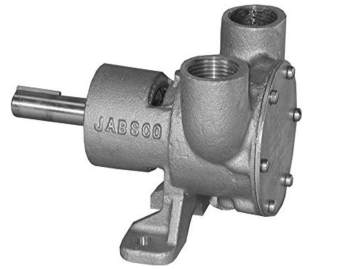

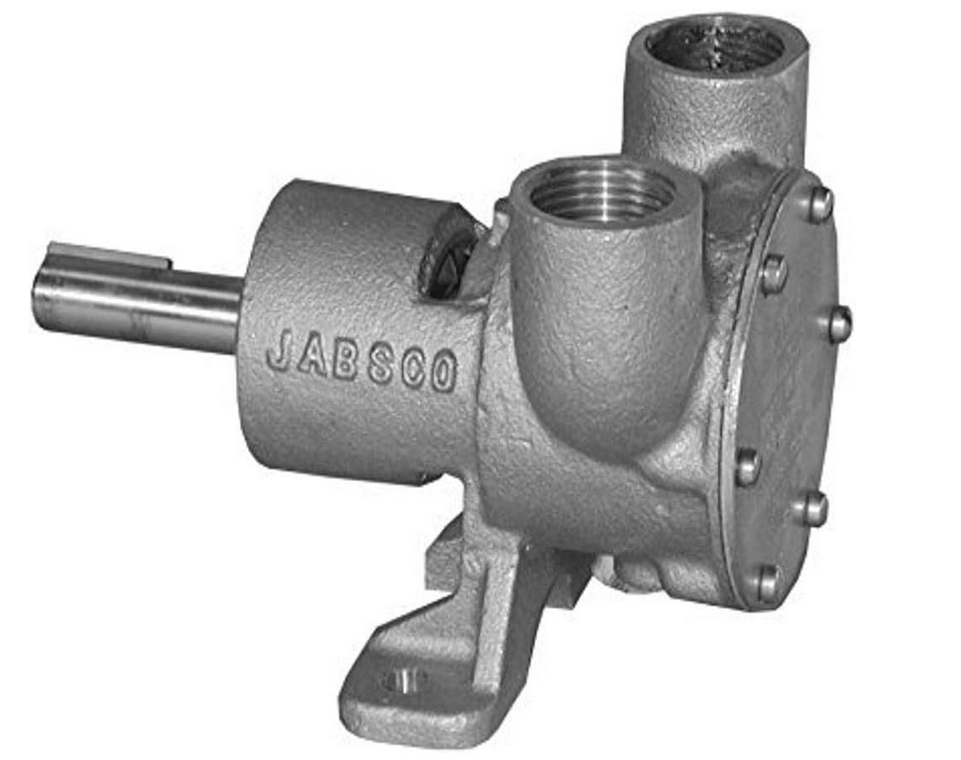

Jabsco 5330-9001 Flexible Impeller Fluid Transfer Pump
Built for demanding fluid handling tasks, the Jabsco 5330-9001 rubber impeller pump combines robust materials with a self-priming design to support dependable transfer performance in marine and industrial environments. Its bronze construction and flexible neoprene impeller help deliver smooth flow, while the carbon/ceramic face shaft seal is specified for reliable, leak-free operation.
Application
- Bilge pumping
- Water transfer
- Wastewater management
- Marine environments for bilge pumping and water transfer tasks
- Agricultural fluid handling, including irrigation systems and water pumps
- Industrial fluid transfer applications, such as cooling systems and wastewater management
Compatibility
- Compatible with a range of hose sizes and fittings
- Suitable for handling various fluids including water, oil, and other compatible liquids
Technical Specifications
Pump Body Material Corrosion-resistant bronze Impeller Material Neoprene Impeller Type Flexible rubber impeller Shaft Seal Carbon/ceramic face type Mt 2/3 Cam Operation Manual operation Electrical Rating Manual, no electric motor required for operation Flow Rate Up to 35 LPM (litres per minute) Maximum Pressure 2.5 bar (36 psi) Temperature Range 0°C to 60°C (32°F to 140°F) Mounting Type Suitable for both surface-mounted and compact installations Dimensions L: 230 mm x W: 150 mm x H: 200 mm Weight Approximately 4.5 kg (9.92 lbs) Compliance CE certified Warranty 1-year limited warranty
Product Details
- Pump Type: Rubber impeller pump
- Construction: Corrosion-resistant bronze body with flexible neoprene impeller
- Sealing: Carbon/ceramic face shaft seal specified for leak-free operation
- Design Intent: Durable, high-performance pump for efficient fluid transfer in marine and industrial applications
Features
- Self-priming function for easy startup and continuous operation
- Low-maintenance design with few moving parts for enhanced reliability
- Flexible impeller design for smooth fluid flow
- Compact and lightweight for easy installation and use
- Versatile design compatible with a wide range of hoses and fittings
-
