The Jabsco 58220-1012 Deluxe Flush electric toilet delivers effortless 12 Volt DC flushing for marine or RV installations using sea or river flush water. It replaces manual pumping with an electric rinse and macerating flush system, featuring a 17 inch slant-back design, a white glazed vitreous china bowl, and a one-touch “press and release” control pad with a 10 ft (3 m) link cable. This model is listed as no longer available, with Jabsco 58220-3012 shown as the alternative.
- Description
- Ask a Question
-

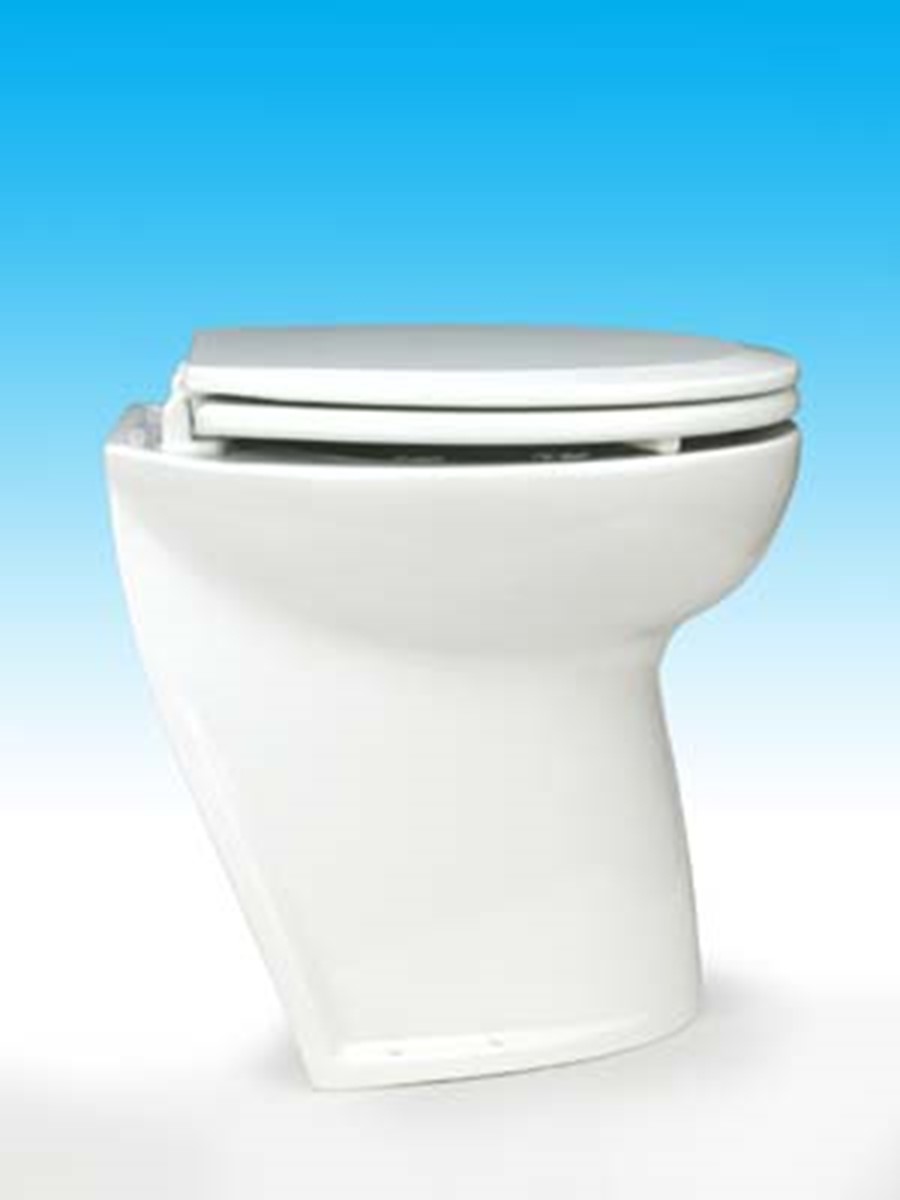

Jabsco 58220-1012 Deluxe Flush Electric Marine Toilet System
The Jabsco 58220-1012 is a Deluxe Flush electric toilet designed to upgrade onboard or RV sanitation with push-button convenience. Built for sea or river water flush systems and powered by 12 Volt DC, it eliminates manual pumping while delivering a compact slant-back form that suits tight marine installations.
Application
- Marine or RV toilet installations
- Use on sea, river, lake, or canal water for rinse/flush supply
- Installation above or below the waterline (follow installation instructions and local regulations)
- Designed to discharge overboard or into holding tanks as necessary
Compatibility
- Sea water flush systems
- River water flush systems
Technical Specifications
Model 58220-1012 Type Deluxe Flush electric toilet Rated Voltage 12 Volt DC Shipping Weight 70.00 kg Size / Shape 17 inch slant-back (angled back) toilet Bowl White glazed vitreous china Seat and Cover Luxury wooden seat and cover with tough baked enamel coating Rinse Pump Type Remote-mounted self-priming diaphragm water pump (dry running) Rinse Pump Self-Priming Up to 3 m (10 ft) Flush Pump Type Internally mounted high-speed, non-clogging centrifugal waste macerating pump Flush Pump Motor Power 240 watt Discharge Capability Up to 6 ft (2 m) above the base of the toilet Control Panel One Touch “Press and Release” switch pad, sealed for life Control Panel Cable 10 ft (3 m) link cable with quick connector and heat shrink seal Compliance USCG 183.410 and ISO 8846 MARINE
Product Details
- The rinse pump is described as self-priming and dry running, using a diaphragm pump design.
- The flush pump is a waste macerating pump designed to be non-clogging and high speed.
- The compact slant-back styling helps reduce footprint and supports mounting against a sloping surface or in a corner.
- All plumbing and wiring are designed to be easily concealed.
Features
- Virtually silent operation for onboard comfort
- No “dirt traps” and crevice-free contours for hygiene and easier cleaning
- User-selectable “one touch” flush cycles for minimal water usage (Quick Flush uses less than 1 quart)
- Owner-selectable choice of leaving the bowl wet or dry after use
- Non-clogging large-bore flush pump macerates waste
- Uses less than 1.0 amp/hour per day
- Regular household size seat
Availability and Alternative
- Listed as not available anymore.
- Alternative shown: Jabsco 58220-3012
Related Spare Part (Listed)
- Catalog # 58103-1012: Macerator Flush Pump Assembly, 12 Volt DC
-
