The Jabsco 52530-1100 double diaphragm pump and accumulator system delivers smooth, automatic pressure water supply on 24V DC installations, combining two-stage operation with a pre-pressurized 2-litre accumulator tank to reduce cycling under variable demand. With self-priming up to 2–3 meters and a 40 psi (2.8 bar) shut-off pressure, it supports high-demand use on larger boats while adding security through its dual-pump configuration. 3/4 inch hose barb connections, run-dry capability, thermal overload protection, and ISO 8846 MARINE compliance help ensure reliable performance in demanding marine environments.
- Description
- Ask a Question
-

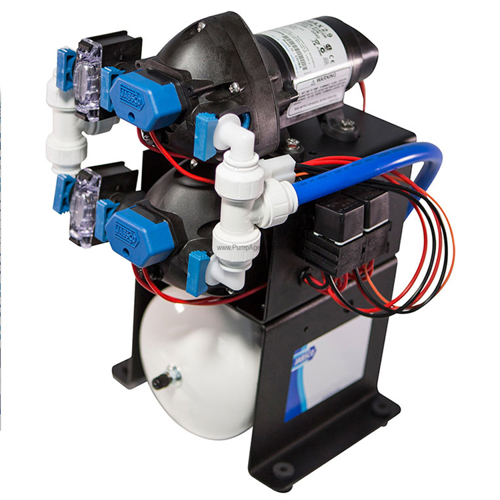

Jabsco 52530-1100 Double Stack Pressure Water System
The Jabsco 52530-1100 is a compact, pre-packaged pressure water system that combines a double diaphragm, two-stage pump arrangement with an integrated pre-pressurized accumulator tank. Built to deliver smooth, automatic flow on larger boats with variable demand, it helps maintain steady pressure while reducing frequent pump cycling.
Application
- Marine pressure water systems on larger boats with variable demand
- Marine washdown and deck cleaning
- RV water systems
- Off-grid water supply applications
- Freshwater and seawater applications (as stated)
Technical Specifications
Model 52530-1100 Supplier Code 52530-1100 Order Number 00320565 Barcode 671880615938 Voltage 24 Volts DC Flow Rate (Low Demand) 4.8 GPM (18 L/min) Flow Rate (High Demand) 9 GPM (34 L/min) Maximum Flow (Also Stated) Up to 36 L/min Pressure Switch Cut-in 1.4 bar (20 psi); Cut-out 2.8 bar (40 psi) Shut-Off Pressure 40 psi (2.8 bar) Self-Priming Up to 6–10 ft (2–3 m) Port Size 3/4 inch hose barb (19 mm hose tail) Accumulator Tank Volume 2 litres Maximum Current (24V) 8 A Fuse Size 15 A Dimensions (L x W x H) 345 x 310 x 345 mm Weight 8–9.5 kg (shipping weight stated as 9.5 kg and also listed as 11.00 kg) Operating Temperature Range 0°C to 60°C (32°F to 140°F) Duty Cycle Intermittent Materials (As Stated) Corrosion-resistant polypropylene and stainless steel Compliance ISO 8846 MARINE
Product Details
- System type: Pressurized water system with two diaphragm pumps and an integrated accumulator tank
- Two-stage operation: Primary pump runs under low demand; secondary pump activates when demand increases
- Motor: Coupled to a 24 Volt DC motor (as stated)
- Tank function: Pre-pressurized accumulator tank helps smooth flow and reduce cycling
- Outlet check valves: Helps maintain system pressure after the pumps switch off
- Integrated suction filters: Helps protect the pumps from debris (as stated)
- Product portfolio: Water Pressure Systems
- Spare parts: Spare parts available (as stated)
Features
- Automatic two-stage pumping for variable demand
- Run-dry capability
- Thermal overload protection
- Smooth, even water flow supported by a 2-litre accumulator tank
- Self-priming up to 2–3 meters for flexible installation
- Dual-pump configuration provides added reliability if one pump becomes inoperable
- Ready-to-use, pre-packaged system for simplified installation (as stated)
-
