The Jabsco 50410-1301 engine cooling pump is a bronze flexible-impeller unit built for reliable water circulation and fluid transfer in marine and industrial use. It features a neoprene impeller, full cam, and a mechanical face seal, with 1-1/4 inch hose barb ports for straightforward plumbing. Designed to mount directly inside the crank-shaft pulley on Chevrolet small block (305 and 350 C.I.) and 454 C.I. Chevrolet block engines, it can run in either rotational direction, self-primes at low or high speeds, and supports dry suction lifts up to 3 m (10 ft) and up to 8 m (25 ft) when wetted, with a maximum recommended pump speed of 5200 RPM.
- Description
- Ask a Question
-

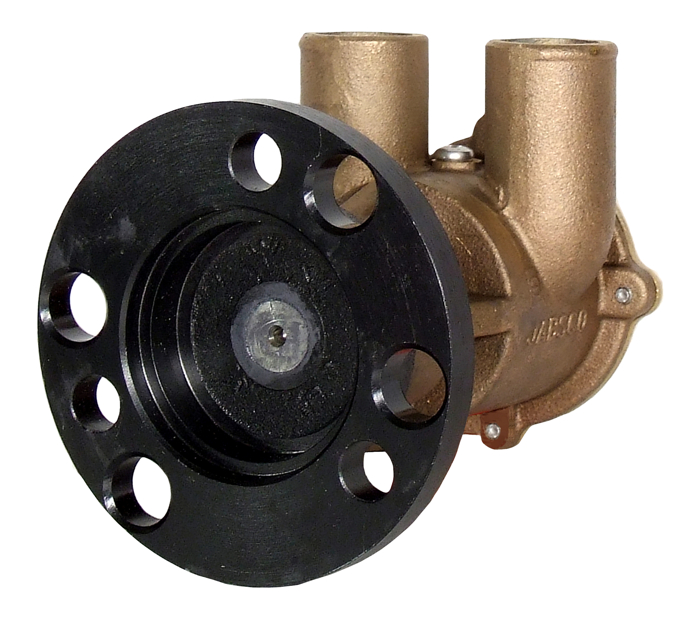

Jabsco 50410-1301 Crank Pulley Engine Cooling Pump Unit
The Jabsco 50410-1301 is a flexible impeller engine cooling pump designed for high-speed operation in demanding marine and industrial environments. Built with a durable bronze body and engineered to mount directly in the crank-shaft pulley, it eliminates the need for mounting brackets, belts, and pulleys while delivering efficient water circulation and dependable fluid transfer.
Application
- Marine engine cooling pump
- Water circulation and fluid transfer needs in industrial and marine settings
- Crank pulley mounted drive engine cooling pump for petrol and diesel engines
Compatibility
- Chevrolet small block 305 C.I. engines
- Chevrolet small block 350 C.I. engines
- 454 C.I. Chevrolet block engines
- Fits all major V8 engines
Technical Specifications
Catalog Number 50410-1301 Construction Bronze Pump Body Material Bronze Nominal Size 32 mm Flange 60 flange Impeller Material Neoprene Cam Full cam Shaft Seal Mechanical face seal Port Size 1-1/4 inch hose barb ports Maximum Recommended Pump Speed 5200 RPM (engine speed) Discharge Pressure Guidance Maximum recommended discharge pressure should not exceed 10 PSI; guidance also states discharge pressure should not exceed 20 PSI (138 kPa) Typical Discharge Pressure 12–15 PSI Self-Priming Suction Lift Up to 3 m (10 ft) dry; up to 8 m (25 ft) when wetted Rotation Operates in either rotational direction
Product Details
- Mounting: Designed to mount directly inside the crank-shaft pulley; includes a rotating bearing housing bolted directly to the crankshaft pulley.
- Installation note: Because the pump body is supported by the ball bearing only, it must be prevented from rotating by a torque arm designed and installed to avoid side load on the bearing.
- Priming and transfer capability: Combines the priming feature of positive displacement pumps with general transfer ability of centrifugals; pumps thin or viscous liquids and can handle more solids in suspension than other types of rotary pumps.
- Operating flexibility: Can operate at low or high speeds and can be mounted at any angle.
- Inlet/discharge guidance: Inlet plumbing should minimize vacuum at the pump inlet when operating at or near maximum speed; intake system should be free of obstructions.
- Seal options: Lip or mechanical seals available.
- Series replacement: Supersedes 22110 series pumps.
Features
- Neoprene impeller: Designed for longer life; depends on liquid pumped for lubrication.
- Self-priming performance: Self-primes at low or high speeds for cleaner, safer installations (suction lines must be airtight).
- Bidirectional operation: Pumps in either direction with equal efficiency.
- Dry-run caution: Do not run dry for more than 30 seconds to avoid burning the impeller.
Spare Parts
- Impeller: Catalog number 18777-0001
-
