The Jabsco 50210-1201 bronze pump unit is a self-priming engine cooling and fluid-handling solution for marine environments, built with a compact flange-mounted body and corrosion-resistant bronze construction. With 32 mm inlet and outlet connections, VW ports, and an output of 80 l/min, it delivers steady flow for dependable system performance. Supplied with a neoprene impeller and designed with a spline-drive impeller hub, it combines durability and service-ready design in a robust size 080 pump package.
- Description
- Ask a Question
-

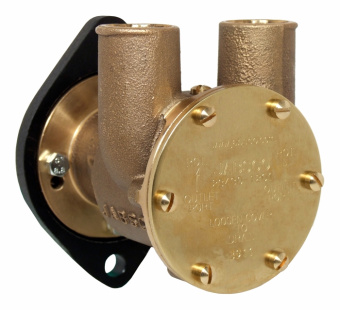

Jabsco 50210-1201 Bronze Flange-Mounted Pump Unit
The Jabsco 50210-1201 is a compact, robust bronze pump designed for reliable fluid handling and engine cooling duties in demanding marine installations. Its flange-mount design and corrosion-resistant construction help it stand up to harsh onboard conditions while delivering consistent performance for yacht and marine systems.
Application
- Use: Self-priming engine cooling pump (size 080) and fluid handling in marine applications
- Ports: VW ports
- Often found on: Volkswagen Marine (VW) TDI and SDI 5-cylinder engines
Compatibility
- Volkswagen Marine (VW) SDI55 engines
- Volkswagen Marine (VW) SDI55-5 engines
- Volkswagen Marine (VW) SDI75 engines
- Volkswagen Marine (VW) SDI75-5 engines
- Volkswagen Marine (VW) TDI100 engines
- Volkswagen Marine (VW) TDI100-5 engines
- Volkswagen Marine (VW) TDI120 engines
- Volkswagen Marine (VW) TDI120-5 engines
- Volkswagen Marine (VW) TDI140 engines
- Volkswagen Marine (VW) TDI140-5 engines
- Volkswagen Marine (VW) TDI150 engines
- Volkswagen Marine (VW) TDI150-5 engines
- Volkswagen Marine (VW) TDI165 engines
- Volkswagen Marine (VW) TDI165-5 engines
Technical Specifications
Brand Jabsco Part Number 50210-1201 Pump Type Impeller pump; cooling water pump Pump Size 080 Output 80 l/min Inlet/Outlet 32 mm Material Bronze Mounting Type Flange Flange 80 flange Impeller Hub Spline drive Connections VW ports Dimensions (L x H x W) 23.00 x 12.00 x 13.00 cm Actual Weight 2.63 kg Approx. Packed Weight 3.13 kg Shipping Weight 3.50 kg
Product Details
- Body: Flange-mounted bronze body
- Cam: 1/1 cam
- Included: Neoprene impeller
Features
- Corrosion-resistant bronze construction for marine environments
- Self-priming design to support reliable engine cooling operation
- 32 mm inlet and outlet for steady, consistent flow
- Flange mounting for secure installation
Alternative Part References
- Jabsco 50210-1101
- Volkswagen Marine (VW) 065 121 012B
- Volkswagen Marine (VW) 065121012B
- Volkswagen Marine (VW) 065 121 012A
- Volkswagen Marine (VW) 065121012A
- Mercury 8M0066976
- 46-8M0066976
- 8M0077588
- 46-8M0077588
-
