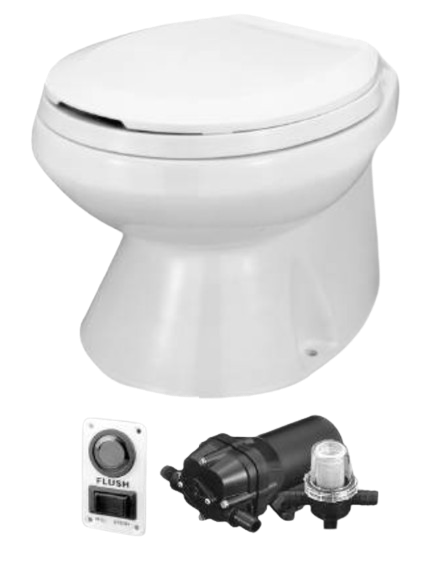

Jabsco 37275-0092 - Quiet Flush 12V Marine Toilet Pump Assembly Kit

Jabsco 37275-0092 - Quiet Flush 12V Marine Toilet Pump Assembly Kit

The Jabsco 37275-0092 Quiet Flush 12V Marine Toilet Pump Assembly Kit provides a quiet, efficient, and user-friendly toilet system for marine environments. Designed to mimic the operation of a household toilet, this system includes a Par-Max 4 self-priming pump to ensure a steady water supply from either sea or lake water. The system also features a vitreous china toilet bowl available in compact 14" or standard 17" height options, providing comfort and reliability for your onboard restroom. The single button flush actuator offers dual-functionality with water level control for convenience, while the high-capacity macerator pump ensures efficient waste removal. All plumbing and wiring connections are internal for a sleek and tidy installation. Available in White or Bone color options, the Quiet Flush kit offers a reliable, durable solution for all your marine toilet needs.

Key Features:

• Very quiet flush cycle, similar to a household toilet for enhanced comfort
• Single button flush actuator with dual-function water level control switch for ease of use
• Par-Max 4 self-priming pump included for reliable water supply from sea or lake water
• Vitreous china toilet bowl available in compact 14" or standard 17" height options
• Choice of White or Bone color to complement your marine décor
• Baked enamel seat & cover for long-lasting durability
• High-capacity waste macerator and bowl discharge pump for efficient waste removal
• All plumbing and wiring connections are internal, providing a sleek and clean appearance

Specifications:

• Voltage: 12V DC
• Flush System: Quiet Flush, similar to household toilet operation
• Toilet Bowl: Vitreous china, available in 14" compact or 17" standard height
• Flush Actuator: Single button with dual-function water level control switch
• Pump: Par-Max 4 self-priming pump, providing reliable water supply from sea or lake water
• Water Supply: Sea or lake water for toilet bowl rinse
• Water Ports: Inlet - ¾" Hose Barb, Outlet - 1" Hose Barb
• Waste Macerator: High capacity, designed for efficient waste discharge
• Seat & Cover: Baked enamel for maximum durability
• Dimensions: Compact 14" height or standard 17" height options
• Color Options: White or Bone
• Regulations: Meets U.S.C.G. normal water consumption standards
• Certifications: Complies with ISO 8846 Marine for ignition protection, EN50081-1 for electromagnetic interference suppression
• Required Hose Sizes: Inlet - ¾" (19mm) hose, Outlet - 1" (25mm) hose
• Motor Type: 12V low-profile DC motor with quiet operation
• Noise Level: Extremely quiet, designed for low-noise operation
• Materials: High-quality vitreous china, durable baked enamel seat & cover
• Operation: Simple push-button flush with an additional rocker switch for water level control
• Operating Pressure: Compatible with typical marine pressurized water systems

Operation:

The Jabsco Quiet Flush system operates similarly to a household toilet, offering both comfort and control for onboard use. The system includes a single large push-button switch that activates both the rinse water supply and the macerator discharge pump, providing a simple and efficient flush. An additional rocker switch allows the user to independently control the rinse water and discharge pump, enabling the water level in the bowl to be easily adjusted for comfort. This feature minimizes water use when necessary and ensures the bowl can be fully evacuated in rough sea conditions, making it an ideal choice for marine environments.

Benefits:

• Extremely quiet operation, creating a comfortable and peaceful environment similar to a household toilet
• Easy to use with a simple push-button and rocker switches for precise control over water levels
• Par-Max 4 self-priming pump ensures a steady water supply from sea or lake water
• Choice of two height options (14" compact or 17" standard) for comfort and flexibility
• Internal plumbing and wiring keep the system neat and out of sight, maintaining a clean installation
• Durable and reliable construction with a high-capacity macerator and baked enamel seat & cover for long-lasting performance
• Compliant with marine safety and ignition protection standards, ensuring safe operation on board
