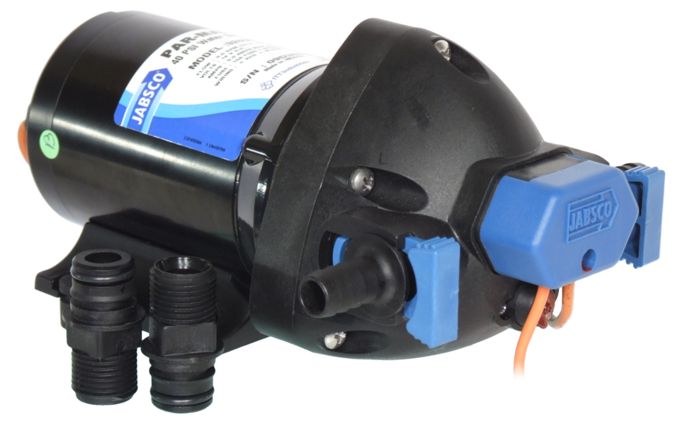

Jabsco 32600-0094 - Par Max 3.5 Freshwater Delivery Pump

ID 1334307

1-2 weeks delivery time

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The Jabsco 32600-0094 Par Max 3.5 pressure-controlled diaphragm pump delivers on-demand freshwater flow for marine and recreational systems using 24V DC power. It provides 13 liters per minute (2.9 gallons per minute) open flow and uses an integrated pressure switch (cut-in 1.4 bar/20 psi, cut-out 2.8 bar/40 psi) for consistent, automatic operation. Self-priming lift up to 1.5 m (5 ft), dry-running capability, integrated bypass, and a sealed, protected motor help reduce cycling, noise, and pulsation in demanding installations; this model is listed as no longer available and replaced by Jabsco Q402J-115S-3A.

Description
Ask a Question

Jabsco 32600-0094 Par Max 3.5 24V Freshwater Pressure Pump

The Jabsco 32600-0094 Par Max 3.5 is a high-performance, self-priming multi-diaphragm freshwater delivery pump built for boats, RVs, and other mobile freshwater systems. Its pressure-controlled operation supports stable water supply to multiple outlets, while the integrated bypass helps promote smoother, more consistent flow with reduced cycling.

Application

Marine freshwater systems
Recreational vehicle freshwater systems
Mobile freshwater systems requiring reliable flow to multiple outlets
Typical onboard outlets such as galleys, showers, and washing machines

Compatibility

Designed for use with fresh water only
Connections for 13 mm (1/2 in) bore hose
Hep20 push-fit connectors
Standard size snap-in port fittings
1/2 in straight hose barb fittings

Technical Specifications

Part Number	32600-0094
Voltage	24V DC
Open Flow Output	13 liters/min (2.9 gallons/min)
Output (Also Listed)	13.2 L/min
Pressure Switch	Cut-in 1.4 bar (20 psi); cut-out 2.8 bar (40 psi)
Shutoff Pressure (Also Listed)	40 psi
Maximum Suction Lift	1.5 m (5 ft)
Maximum Current	4.4 A
Fuse Size	7 A (not included)
Dimensions (L x W x H)	220 mm x 105 mm x 113 mm
Packaged Dimensions (L x H x W)	17.00 cm x 11.00 cm x 34.00 cm
Actual Weight	2.47 kg (approx. 2.97 kg packed)
Shipping Weight (Also Listed)	3.20 kg
Operating Temperature Range (Also Listed)	0°C to 40°C (32°F to 104°F)
Maximum Fluid Temperature Range (Also Listed)	0°C to 60°C (32°F to 140°F)
Maximum Inlet Pressure	30 psi
Certifications	CE; RoHS compliant

Product Details

Pump Type: Pressure-controlled, self-priming multi-diaphragm pump
Operation: Integrated, sealed pressure switch for on-demand start/stop
Flow Control: Integrated bypass feature to reduce cycling and provide smoother flow
Motor Protection: Thermal overload protection
Motor Enclosure: Totally enclosed non-ventilated; ingress protection IPX6
Materials: Corrosion-resistant thermoplastic components; pump body polypropylene; pumphead and upper housing glass fiber reinforced polypropylene; co-molded TPV diaphragm; EPDM check valves
Mounting: Vibration dampening mounting feet; mount horizontally, or vertically with the pumphead facing down; mount above the waterline in a dry area with adequate ventilation
Availability: Not available anymore; replaced by Jabsco Q402J-115S-3A

Features

Pressure-controlled delivery with cut-in at 1.4 bar (20 psi) and cut-out at 2.8 bar (40 psi)
Self-priming with up to 1.5 m (5 ft) vertical lift
Dry-running capability for demanding conditions
Low-noise operation with minimal pulsation
Snap-in ports for quick installation with 13 mm (1/2 in) bore hose or Hep20 push-fit connectors
Corrosion-resistant construction for harsh marine environments
Integrated bypass module for smoother flow

Important Notes

Not submersible
Do not use motor pump units for pumping gasoline or other flammable liquids
When connected to power, the pump can start automatically without warning if the pressure switch senses pressure below shutoff
