The Jabsco 37055-0094 toilet conversion kit upgrades compatible manual marine toilets to a quiet 24V electric flush system with a single-button actuator and dual-function water level control switch. It uses a water control solenoid valve with an anti-siphon breaker to help prevent contamination of potable water, and includes a high-capacity waste macerator and bowl discharge pump. Designed for pressurized water systems with a minimum 13.5 LPM flow rate, it supports approximately 1–2 L per flush and provides 19 mm (3/4 in) inlet and 25 mm (1 in) discharge connections, plus a 38 mm (1-1/2 in) waste plumbing adaptor; electrical draw is 5 A with a 15 A fuse.
- Description
- Ask a Question
-
Jabsco 37055-0094 Quiet Flush 24V Toilet Conversion System
The Jabsco 37055-0094 conversion kit is built to transform a compatible manual marine toilet into a quiet electric fresh-water flush setup. It combines low-noise operation, simplified single-button flushing, and controlled water supply management for a cleaner, more convenient onboard sanitation upgrade.
Application
- Converts manual marine toilets to a quiet 24V electric system
- Fresh-water flush configuration
- Can be plumbed to any pressurized water system providing a minimum 13.5 LPM flow rate
Compatibility
- Jabsco Manual Toilet model 29090
- Jabsco Manual Toilet model 29120
- Other standard marine toilets with a 95.3 mm (3-3/4 in) diameter bolt circle and 4-hole base pattern
Technical Specifications
Voltage 24 V Amperage 5 A Fuse Size 15 A Water Consumption 1–2 L per flush Minimum Water System Flow Rate 13.5 LPM Inlet Connection 19 mm (3/4 in) hose Discharge Connection 25 mm (1 in) hose Waste Plumbing Adaptor 38 mm (1-1/2 in) adaptor included Dimensions (Height × Width × Length) 101 × 181 × 337 mm Dimensions (Height × Width × Depth) 355 × 415 × 333 mm Shipping Weight 4.80 kg Order Number 00320050 Supplier Code 37055-0094 Barcode 671880522786 Product Portfolio Electric Toilets
Product Details
- Low-noise operation for a quieter onboard environment
- Single-button flush actuator with dual-function water level control switch
- Water control solenoid valve with anti-siphon breaker to help prevent contamination of potable water
- High-capacity waste macerator and bowl discharge pump

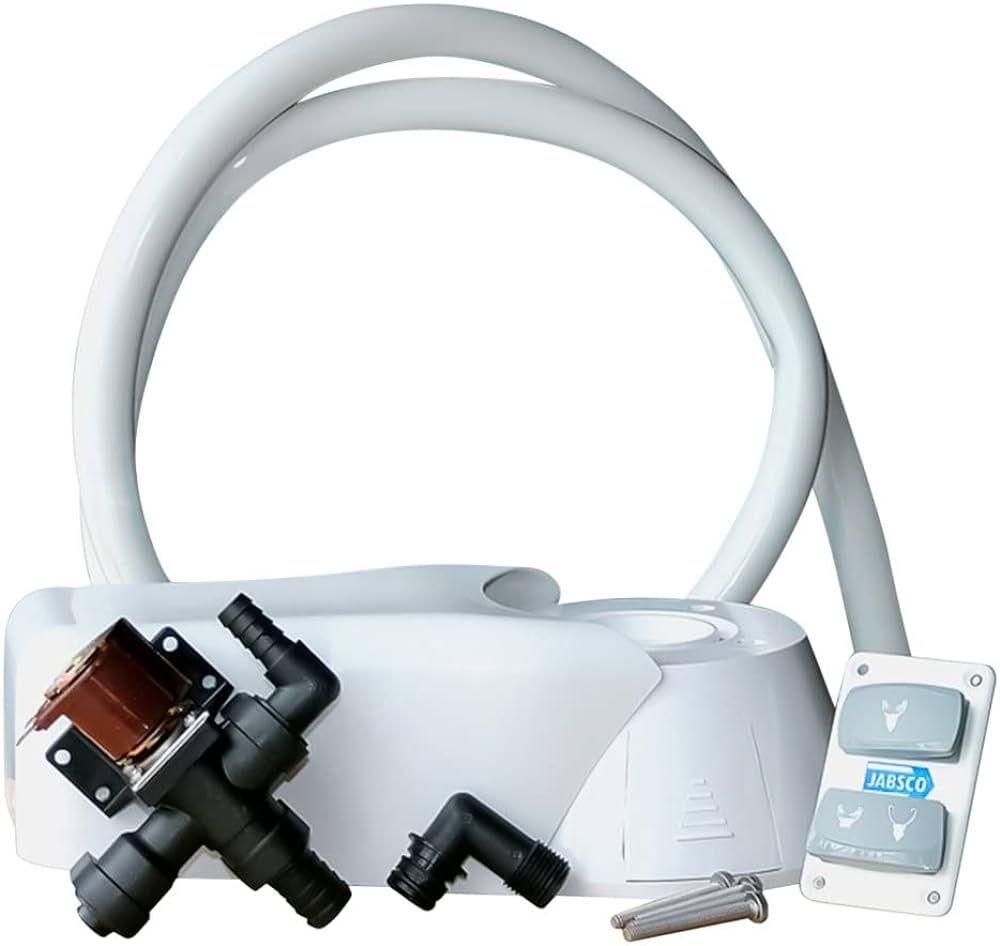

Features
- Complete motorized base assembly included
- Bowl gasket included
- Four bolts and washers for bowl included
- Solenoid valve with anti-siphon breaker included
- 19 mm (3/4 in) white hose included
- 25 mm (1 in) discharge port adaptor included
- Control switch included
-
