ID
1331425
$ 1,295.77
1-2 weeks delivery time
-
+
The Jabsco 37055-0092 electric toilet conversion kit upgrades existing manual or electric marine toilets to quiet 12V operation using a solenoid valve and a single-button flush actuator with dual-function water level control. It is designed for fresh water flush using the onboard pressurized water system (minimum 13.5 LPM flow rate) while keeping water use to approximately 1–2 liters per flush. Supplied with a high-capacity waste macerator, bowl discharge pump, anti-siphon breaker, and required plumbing adapters, it supports 19 mm (3/4 in) inlet, 25 mm (1 in) discharge, plus an adapter to 38 mm (1-1/2 in) waste plumbing for streamlined retrofits.
- Description
- Ask a Question
-
Jabsco 37055-0092 Quiet Flush 12V Toilet Upgrade Kit
The Jabsco 37055-0092 conversion kit is built to convert an existing marine toilet to a quiet electric flushing system. Designed around a 12V DC power supply and a solenoid-controlled water feed, it supports fresh water flush operation using the onboard pressurized water system and includes the key parts needed for a practical retrofit.
Application
- Upgrades manual toilets to a quiet 12V electric system
- Suitable for retrofitting Jabsco marine toilets with an electric system
- Fresh water flush model using onboard water pressure
- Marine and RV applications
Compatibility
- Manual Jabsco Toilet 29090
- Manual Jabsco Toilet 29120
- Other marine toilets using a standard bowl configuration with a 95.3 mm (3-3/4 in) diameter bolt circle and 4-hole pattern in the base
Technical Specifications
Supplier Code 37055-0092 Order Number 00320049 Barcode 671880522984 Voltage 12V DC Amperage 10A Fuse Size 25A Water Consumption Approximately 17 liters per flush Minimum Water System Flow Rate 13.5 LPM (pressurized water system) Dimensions (Set 1) Height 101 mm; Width 181 mm; Length 337 mm Dimensions (Set 2) Length 340 mm Width 210 mm Height 80 mm Inlet Connection 19 mm (3/4 in) inlet hose Discharge Connection 25 mm (1 in) discharge hose Waste Plumbing Adapter Adapter to 38 mm (1-1/2 in) waste plumbing Weight 3.82 kg (approx. 4.32 kg packed) Shipping Weight 4.50 kg Package Dimensions 37.00 cm (L) 22.00 cm (W) 10.00 cm (H) Product Portfolio Electric Toilets
Product Details
- Flush control: Single-button flush actuator with dual-function water level control
- Water control: Solenoid valve with anti-siphon breaker to help prevent contamination of potable water supply
- Pumping: High-capacity waste macerator and bowl discharge pump

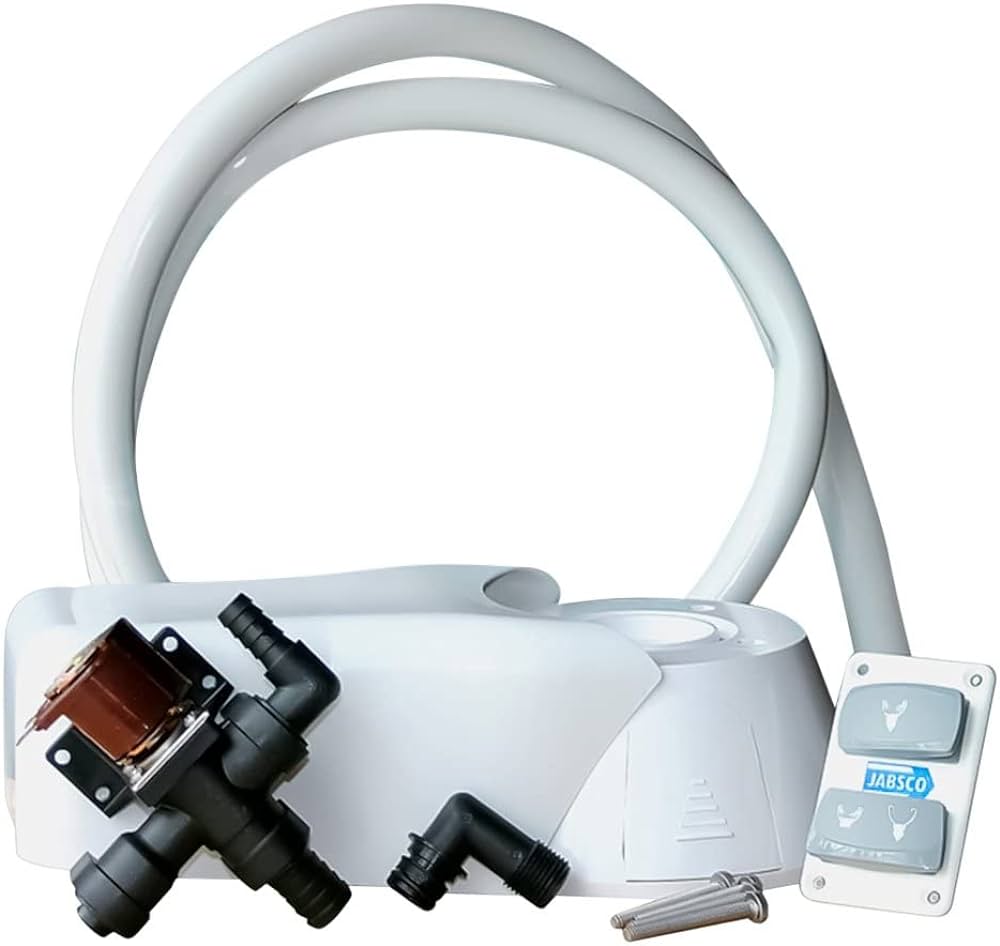

- Included items (as listed): Complete motorized base assembly, bowl gasket, four bolts and washers for the bowl, solenoid valve with anti-siphon breaker, 19 mm (3/4 in) white hose, 25 mm (1 in) discharge port adapter, hose adapter to 38 mm (1-1/2 in) waste plumbing, and control switch
Features
- Low-noise operation
- Quiet flush electric conversion for existing toilets
- Uses onboard pressurized water system for fresh water flushing
- Supplied with plumbing adapters for common marine hose sizes
-
