The Jabsco 34739-0010 marine ventilation blower delivers high-volume air intake or extraction at 4.2 m³/min (150 CFM) using 12V DC power, with approximately 6.5A current draw and a recommended 10A fuse. Its corrosion-resistant construction, reinforced plastic housing, and quiet Delrin rotors support durable, low-noise operation, while the 75 mm (3") flange connection enables direct bulkhead mounting on flat surfaces. Ignition-protected compliance to ISO 8846 MARINE and USCG 183.410 makes it a safe choice for bilge and engine-compartment ventilation.
- Description
- Ask a Question
-

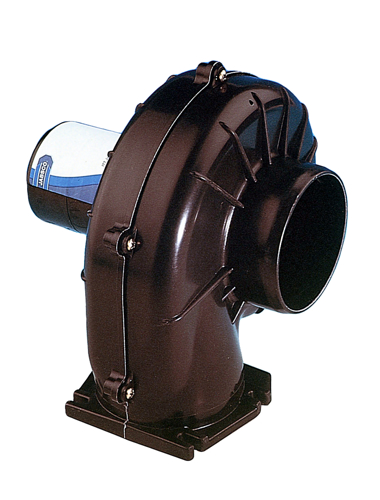

Jabsco 34739-0010 12V Flange-Mount Ventilation Blower
The Jabsco 34739-0010 is a marine ventilation fan built for powerful air intake or extraction in demanding onboard environments. With corrosion-resistant materials, a tough reinforced plastic housing, and quiet-running Delrin rotors, it supports efficient ventilation where safe fume removal and dependable airflow matter.
Application
- Bilges
- Engine compartments (including gasoline-powered boats before starting)
- Fuel compartments
- Galleys
- Heads
- Decks
- Accommodation areas
Compatibility
- Suitable for 75 mm (3") ducting
- Mounts in any position on any flat surface (outlet flange mounts directly on the bulkhead)
Technical Specifications
Type Marine ventilation blower (radial design) Voltage 12V DC Airflow Capacity 4.2 m³/min (150 CFM) (open flow) Current Draw Approximately 6.5A Recommended Fuse 10A Connection Size 75 mm (3") ducting Mounting Type Flange mount (flat surface / bulkhead) Dimensions (As Listed) Height 171 mm; Width 200 mm; Length 200 mm Dimensions (Also Listed) Length 200 mm; Height 200 mm; Width 170 mm Weight 2.03 kg (approximately 2.53 kg packed) Shipping Weight 2.70 kg Packaged Dimensions L 17.00 cm x H 14.00 cm x W 16.00 cm Compliance / Ignition Protection ISO 8846 MARINE; USCG 183.410; ISO 9097 Marine; EN 50081-1 (electromagnetic interference suppression); NMMA type accepted; CE marked Order Number 00320279 Supplier Code 34739-0010 Barcode 671880029360
Product Details
- Construction: Corrosion-resistant materials with reinforced plastic housing
- Rotor Material: Dimensionally stable, quiet-running Delrin rotors
- Motor: Coupled to a 12V DC motor
- Use Profile: Primarily intended for intermittent duty cycles such as evacuating fuel vapors from bilge areas; maximum motor life is approximately 1000 hours
- Installation Note: Mount away from extreme heat to prevent distortion of the blower wheel or housing; do not install close to sources of direct heat exceeding 180 degreesF
Features
- High-volume, efficient airflow for intake or extraction
- Ignition-protected design for safer bilge and engine-compartment ventilation
- Flange outlet mounts directly to a bulkhead for neat installation
- Corrosion-resistant build for marine environments
- Quiet operation supported by Delrin rotors
-
