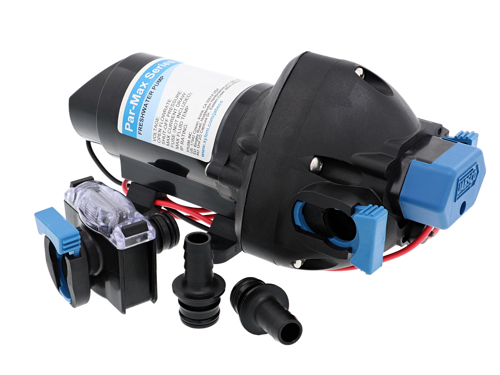

Jabsco 31395-4012-3A - Par Max 3 Marine Freshwater Pressure Pump

Jabsco 31395-4012-3A - Par Max 3 Marine Freshwater Pressure Pump

The Jabsco 31395-4012-3A Par Max 3 Marine Freshwater Pressure Pump is designed to provide high-quality, reliable freshwater pressure for marine, RV, and recreational systems. With a 12V power supply and a flow rate of 11 liters per minute (3 gallons per minute), it delivers strong, consistent water flow to multiple outlets. The pump operates with a pressure switch that cuts in at 1.4 bar (20 psi) and cuts out at 2.8 bar (40 psi), providing the perfect water pressure for various applications. Featuring a self-priming, multi-diaphragm design, it can lift water up to 1.8 meters (6 feet) and run dry without causing damage. The pump is also equipped with a bypass feature, ensuring smooth and quiet operation, eliminating the need for an accumulator tank. Its compact, durable design, combined with easy installation and quiet performance, makes it an ideal choice for boats, yachts, and RVs.

Key Features:

• 12V pressure-controlled pump with a cut-in pressure of 1.4 bar (20 psi) and a cut-out pressure of 2.8 bar (40 psi)
• High output of 11 liters per minute (3 gallons per minute), ideal for multiple water outlets
• Self-priming with a vertical lift of up to 1.8 meters (6 feet), suitable for marine and recreational applications
• Quiet operation for noise-sensitive environments like boats and RVs
• Multi-diaphragm design that ensures efficient performance and can run dry without damage
• Thermal overload protection for motor safety
• Bypass feature that ensures smooth and quiet water flow without the need for an accumulator tank
• Snap-in ports for easy hose installation (13mm or ½” bore hose), and comes with a strainer

Specifications:

• Part Number: 31395-4012-3A
• Voltage: 12V DC
• Pressure Switch: Cut-in at 1.4 bar (20 psi), Cut-out at 2.8 bar (40 psi)
• Flow Rate: 11 liters/min (3 gallons/min) open flow
• Maximum Current: 4.4 amps
• Fuse Size: 10 amps (not included)
• Dimensions: 230mm (L) x 152mm (W) x 110mm (H)
• Connections: 13mm (½”) bore hose, snap-in ports, and included strainer
• Packaged Dimensions: L: 17.00 cm x H: 11.00 cm x W: 34.00 cm
• Actual Weight: 1.80 kg (Approx. 2.30 kg packed)
• Maximum Suction Lift: 1.8 meters (6 feet) dry
• Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
• Material: Durable thermoplastic and corrosion-resistant components
• Certifications: CE, RoHS compliant
• Flow Regulation: Integrated bypass for smooth flow regulation
• Noise Level: Low noise operation
• Sealing: IPX6 rated for water protection
• Installation: Snap-in ports for easy installation with no special tools required
• Warranty: 2-year limited warranty

Compatibility and Application:

• Ideal for use in marine, RV, and recreational freshwater systems
• Perfect for powering multiple water outlets such as showers, sinks, and toilets on boats, yachts, and RVs
• Compatible with 13mm (½”) bore hose and snap-in ports for easy installation
• Suitable for both fresh and saltwater applications, providing flexibility for a range of environments
• Perfect for use in recreational vehicles, boats, yachts, and off-grid cabins

Benefits:

• Self-priming up to 1.8 meters (6 feet), ensuring reliable water flow even in difficult installations
• Can run dry for short periods without damage, making it ideal for intermittent use
• Thermal overload protection prevents motor damage and extends the pump’s lifespan
• Bypass feature for quiet, smooth, and consistent water flow without requiring an accumulator tank
• Quiet operation ensures a comfortable, noise-free environment on boats and RVs
• Durable construction with corrosion-resistant components, ensuring long-term reliability in marine and recreational settings
• Easy installation and maintenance with snap-in hose ports, saving time and effort
