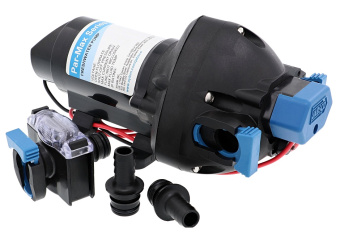

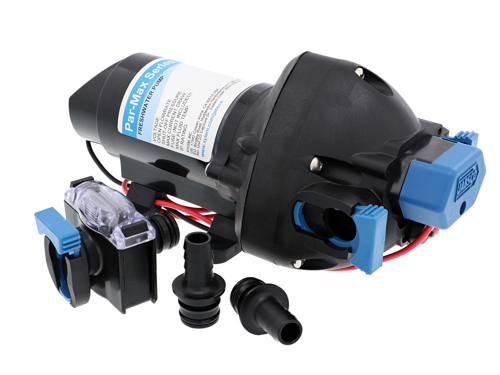

Jabsco 31395-2512-3A - Par Max 3 Pressure-Controlled Pump 12V

Jabsco 31395-2512-3A - Par Max 3 Pressure-Controlled Pump 12V

The Jabsco 31395-2512-3A Par Max 3 Pressure-Controlled Pump is a high-performance, self-priming pump designed for demanding applications where consistent water pressure is needed. Operating on 12V DC, this pump delivers a flow rate of 11 liters per minute (3 gallons per minute) with a pressure switch that activates at 15 psi (1.0 bar) and deactivates at 25 psi (1.7 bar). It is ideal for serving 2 or more outlets and is perfect for systems in marine, RV, and domestic water systems. With its multi-diaphragm design, it can self-prime up to 1.8 meters (6 feet) vertical lift, providing reliable operation even in challenging conditions. The pump also features a quiet operation, an automatic thermal overload cut-out for motor protection, and a bypass feature that ensures smooth and quiet flow. Designed to be durable, the pump is capable of running dry without damage, adding to its reliability and lifespan.

Key Features:

• High-flow, self-priming pump with a flow rate of 11 liters per minute (3 gallons per minute).
• Pressure switch activates at 1.0 bar (15 psi) and deactivates at 1.7 bar (25 psi).
• Multi-diaphragm design capable of self-priming up to 1.8 meters (6 feet) vertical lift.
• Run-dry capability without causing damage to the pump.
• Supplied with snap-in ports for ½" (13mm) hose and strainer.
• Quiet running operation for minimal noise disturbance.
• Includes a bypass feature for smooth, consistent water flow.
• Motor protected by an automatic thermal overload cut-out for extended durability.
• Suitable for clean water and discoloured water applications.

Specifications:

• Model: Jabsco 31395-2512-3A
• Voltage: 12V DC
• Dimensions:
  • Length: 230mm
  • Width: 152mm
  • Height: 110mm
• Fuse Size: 10 amp
• Maximum Current: 4.4 amps
• Output: 11 liters/minute (3 gallons/minute) open flow
• Pressure Switch: Cuts in at 1.0 bar (15 psi), cuts out at 1.7 bar (25 psi)
• Self-Priming: Up to 1.8 meters (6 feet) vertical lift
• Quiet Operation: Low noise level for minimal disturbance
• Motor Protection: Automatic thermal overload cut-out
• Included Components: ½" (13mm) hose snap-in ports, strainer
• Packaged Dimensions: L: 17.00 x H: 11.00 x W: 34.00 cm
• Actual Weight: 1.80 kg (Approx. 2.30 kg packed)
• Maximum Pressure: 25 psi (1.7 bar)
• Maximum Flow Rate: 11 liters/minute (3 gallons/minute)
• Current Draw: 4.4 amps at full load
• Bypass Feature: Yes, for smooth flow
• Self-Priming Capability: Can self-prime up to 1.8m (6 feet) vertical lift
• Run-Dry Capability: Yes, the pump can run dry without damage
• Compatibility: Compatible with ½" (13mm) bore hose and Hep20 connectors

Compatibility and Application:

• Ideal for use in marine, RV, and domestic water systems.
• Perfect for supplying water to multiple outlets in applications requiring stable pressure.
• Can be used for clean and discolored water applications.
• Works well in systems that require a self-priming pump that can run dry without damage.
• Recommended for various low-pressure water distribution systems.

Benefits:

• Reliable and efficient pressure control for stable water flow across multiple outlets.
• Long-lasting durability, with the ability to run dry without damaging the pump.
• Minimal noise operation ensures a more comfortable environment.
• Thermal overload protection ensures motor longevity and safety.
• Easy installation with snap-in ports for straightforward hose connections.
• Low maintenance requirements, ensuring long-term operation with reduced downtime.
