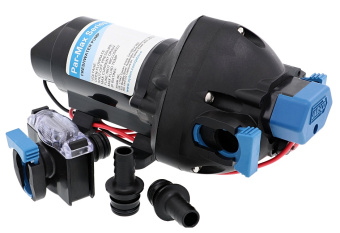

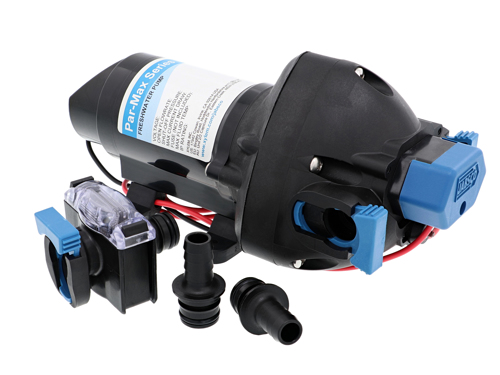

Jabsco 31295-3524-3A - Par Max 2 Marine Freshwater Pressure Pump

Jabsco 31295-3524-3A - Par Max 2 Marine Freshwater Pressure Pump

The Jabsco 31295-3524-3A Par Max 2 Marine Freshwater Pressure Pump is a high-performance, self-priming, and pressure-controlled pump designed for marine and recreational freshwater systems. This 24V pump offers reliable water flow with an impressive output of 7.6 liters per minute (2 gallons per minute). Its efficient, multi-diaphragm design ensures smooth, quiet operation, ideal for applications requiring multiple outlets. The pump can run dry without damage, making it highly durable and versatile for various water transfer tasks.

Key Features:

• Pressure-controlled pump with cut-in at 1.7 bar (25psi) and cut-out at 2.4 bar (35psi)
• High output of 7.6 liters per minute (2 gallons per minute) open flow
• Self-priming capability with a vertical lift up to 3 meters (10 feet)
• Runs dry without damage, offering greater operational flexibility
• Multi-diaphragm design ensures smooth and quiet operation, ideal for marine environments
• Motor protection via automatic thermal overload cut-out for added reliability
• Bypass feature for smooth, consistent flow with no need for an accumulator tank
• Easy installation with 13mm (½”) hose connections or Hep20 push-fit connectors
• Comes with 2 x 1/2" (13mm) straight hose barbs for immediate use

Specifications:

• Part Number: 31295-3524-3A
• Voltage: 24V DC
• Pressure Switch: Cut-in at 1.7 bar (25psi), Cut-out at 2.4 bar (35psi)
• Output: 7.6 liters/min (2 gallons/min) open flow
• Maximum Current: 3 amps
• Fuse Size: 5 amps (not included)
• Dimensions: 231mm (L) x 99mm (W) x 106mm (H)
• Connections: 13mm (½”) bore hose or Hep20 push-fit connectors (CW193)
• Packaged Dimensions: L: 17.00 cm x H: 11.00 cm x W: 34.00 cm
• Actual Weight: 1.60 kg (Approx. 2.10 kg packed)
• Maximum Suction Lift: 3 meters (10 feet) dry
• Noise Level: Low noise operation
• Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
• Material: High-quality thermoplastic, corrosion-resistant components, and stainless steel components
• Certifications: CE, RoHS compliant
• Warranty: 1 year (limited)
• Flow Regulation: Integrated bypass for smooth flow regulation
• Protection: Thermal overload protection to prevent motor damage

Compatibility and Application:

• Designed for use in boats, caravans, RVs, and other mobile freshwater systems
• Suitable for freshwater applications that require continuous or intermittent water flow to multiple outlets
• Ideal for marine environments or remote locations where quiet, efficient, and reliable pumping is required
• Compatible with both 13mm (½”) bore hose and Hep20 push-fit connectors, making installation hassle-free

Benefits:

• Self-priming up to 3 meters vertical lift for reliable operation even in challenging conditions
• Can run dry without damage, offering peace of mind for extended operational periods
• Quiet running motor reduces noise levels, ensuring a peaceful environment in marine and recreational settings
• Multi-diaphragm design ensures long-term reliability and consistent water pressure
• Bypass feature provides consistent and smooth water flow, eliminating the need for an accumulator tank
• Energy-efficient design reduces power consumption, helping to extend battery life
• Thermal overload protection ensures safe operation, safeguarding both the motor and other system components
• Durable construction and high-quality materials ensure longevity, even in harsh marine conditions
• Easy to install with versatile hose connections for a variety of applications
