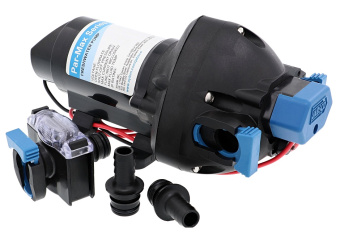

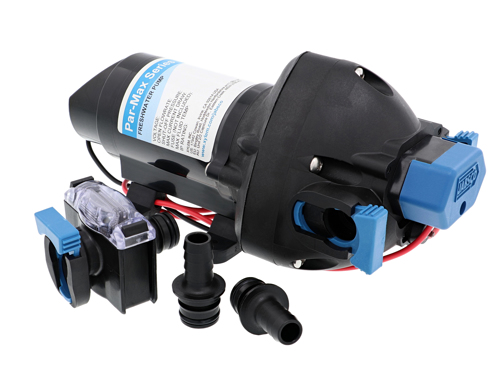

Jabsco 31295-3512-3A - Par Max 2 Pressure-Controlled Pump

Jabsco 31295-3512-3A - Par Max 2 Pressure-Controlled Pump

The Jabsco 31295-3512-3A Par Max 2 Pressure-Controlled Pump is a high-performance, efficient pump designed for demanding applications. Operating at 12V DC, this pump delivers a maximum flow rate of 7.6 liters per minute (2 gallons per minute) and features a pressure switch that cuts in at 25 psi (1.7 bar) and cuts out at 35 psi (2.4 bar). The Par Max 2 is engineered for clean or discolored water, ideal for domestic, marine, industrial, or agricultural applications. The self-priming feature supports up to 3 meters (10 feet) of vertical lift, while its multi-diaphragm design ensures a smooth, quiet operation even under load. This pump can run dry without damage, making it an excellent choice for systems requiring high reliability and low noise levels.

Key Features:

• Pressure Switch: Activates at 25 psi (1.7 bar) and deactivates at 35 psi (2.4 bar), offering reliable pressure control.
• Self-Priming: Capable of priming up to 3 meters (10 feet) vertical lift, ensuring consistent operation even when dry.
• High Flow Rate: Delivers up to 7.6 liters per minute (2 gallons per minute), ideal for multiple outlets.
• Quiet Operation: Designed for minimal noise during operation, enhancing comfort in residential or commercial settings.
• Thermal Overload Protection: Prevents motor damage due to excessive heat, ensuring long-term reliability.
• Bypass Feature: Provides smooth, steady flow with minimal pressure fluctuation for efficient performance.
• Comes with 2 x ½" (13mm) straight hose barbs, and additional snap-in ports available for versatility in hose connections.
• Efficient Power Use: Maximum current of 6 amps ensures energy-efficient operation.
• Durable Construction: Designed for tough conditions, capable of handling both clean and discolored water without degradation.

Specifications:

• Model: Jabsco 31295-3512-3A
• Voltage: 12V DC
• Maximum Current: 6 amps
• Fuse Size: 10 amps
• Flow Rate: 7.6 liters/min (2 gallons/min)
• Pressure Settings:
  • Activates at 25 psi (1.7 bar)
  • Deactivates at 35 psi (2.4 bar)
• Connections: Compatible with 13mm (½”) bore hose or Hep20 push-fit connectors CW193
• Dimensions:
  • Length: 231mm
  • Width: 99mm
  • Height: 106mm
• Weight: 1.60 kg (Approx. 2.10 kg packed)
• Max Vertical Lift: 3 meters (10 feet)
• Pump Type: Self-Priming
• Duty Type: Domestic
• Mounting: Surface mounted
• Power Type: Single-phase AC power
• Noise Level: Operates quietly with minimal vibration, making it ideal for noise-sensitive environments
• Maximum Flow Pressure: Can withstand up to 35 psi (2.4 bar) for reliable operation
• Thermal Protection: Includes automatic thermal overload cut-off to protect motor from overheating
• Priming Capacity: Can self-prime at up to 3 meters (10 feet) dry lift without damage
• Warranty: Standard warranty for residential and light commercial applications

Applications and Benefits:

• Perfect for domestic water systems, providing reliable, high-pressure water flow for residential uses.
• Ideal for marine systems, offering a high-flow solution for boats, RVs, and yachts needing consistent water supply.
• Efficient for industrial and agricultural applications, supplying clean or discolored water to multiple outlets or systems.
• Reduces operational downtime with the self-priming feature, which can handle dry runs without damage.
• Maintains optimal performance with low energy consumption and thermal overload protection, ensuring long-lasting durability.
• Versatile hose connections with snap-in ports, providing flexibility to accommodate different system configurations.
