ID
1323302
1-2 weeks delivery time
Our managers will contact you and clarify the terms of the order
The Jabsco 31295-0092 Par Max freshwater pressure pump is a self-priming, pressure-controlled 12V DC unit built for reliable freshwater distribution in marine, RV, and recreational systems. It delivers 7 liters per minute (1.5 gallons per minute) open flow (also listed as up to 7.2 liters per minute / 1.9 GPM) and regulates pressure with a cut-in of 1.0 bar (15 psi) and cut-out of 1.7 bar (25 psi), while maintaining low-noise operation across multiple outlets. A multi-diaphragm design supports smooth running and dry-run capability, and installation is simplified with snap-in ports for 13 mm (1/2 in) hose and compatibility with Hep20 push-fit connectors, plus built-in bypass and automatic thermal overload protection for consistent flow and safety.
- Description
- Ask a Question
-

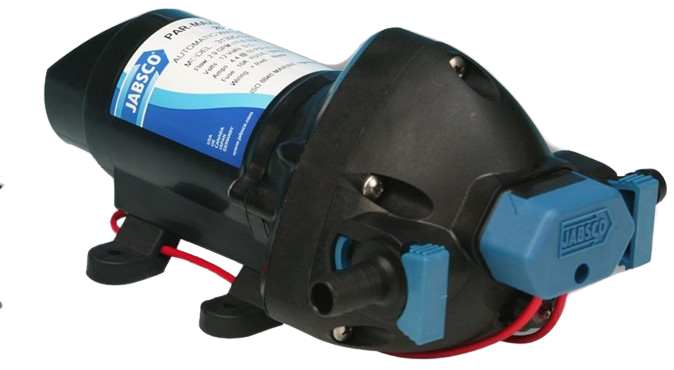

Jabsco 31295-0092 Par Max Freshwater Pressure Pump Unit
The Jabsco 31295-0092 Par Max series pump is a high-performance, self-priming freshwater pressure pump designed to deliver steady water distribution in boats, RVs, caravans, and other mobile water systems. Its pressure-controlled operation supports multiple outlets with smooth, quiet flow, while the multi-diaphragm design and protection features help maintain dependable everyday performance.
Application
- Boats
- RVs
- Caravans
- Mobile water systems
- Off-grid setups
- Freshwater systems requiring flow to multiple outlets
Technical Specifications
Part Number 31295-0092 Voltage 12V DC Pressure Switch Cut-In 1.0 bar (15 psi) Pressure Switch Cut-Out 1.7 bar (25 psi) Cut-Off Pressure (Listed) 1.7 bar Output (Open Flow) 7 liters/min (1.5 gallons/min) Maximum Output (Listed) 7.2 liters/min (1.9 GPM) Maximum Current 3.5 A Fuse Size 7 A (also listed as 10 A) Maximum Suction Lift 1.8 m (6 ft) dry Operating Temperature Range 0 C to 40 C (32 F to 104 F) Dimensions 230 mm (L) x 152 mm (W) x 110 mm (H) (also listed as 22.9 cm length x 10.5 cm width x 12.1 cm height) Packaged Dimensions 17.00 cm (L) x 34.00 cm (W) x 11.00 cm (H) Actual Weight 1.60 kg Packed Weight (Approx.) 2.10 kg Shipping Weight 2.30 kg Materials High-quality thermoplastic and corrosion-resistant components Certifications CE, RoHS compliant Connections Snap-in ports for 13 mm (1/2 in) bore hose; compatible with Hep20 push-fit connectors (CW193); also listed with 2 x 13 mm (1/2 in) hose barb ports and 2 x 14 mm (1/2 in) threaded ports
Product Details
- Pump Type: Pressure-controlled freshwater pump
- Priming: Self-priming
- Design: Multi-diaphragm
- Operation: Can run dry without damage (listed)
- Noise: Low-noise operation (listed)
Features
- Bypass feature to support smooth, constant flow and eliminate the need for an accumulator tank (listed)
- Automatic thermal overload cut-out protection (listed)
- Designed for efficient freshwater distribution across multiple outlets (listed)
- Quick installation via snap-in port connections (listed)
-
