ID
1331339
$ 354.75
1-2 weeks delivery time
-
+
The Jabsco 29120-5100 manual marine toilet unit combines a large, household-size bowl with a soft-closing seat and lid for quieter, more comfortable onboard use. Built for fresh and saltwater service, it features corrosion-resistant components, a Twist 'N' Lock safety handle to help prevent seawater backflow, and flexible installation thanks to reversible left/right pump mounting and a multi-angle discharge elbow. Standard 19 mm inlet and 38 mm outlet connections support straightforward integration into marine sanitation systems.
- Description
- Ask a Question
-

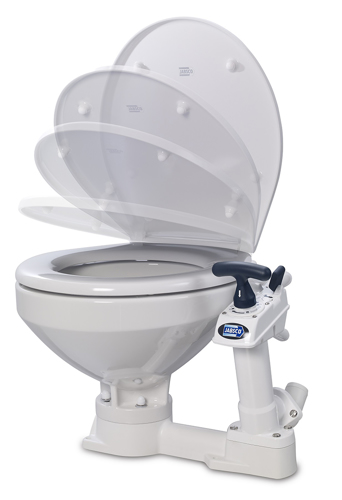

Jabsco 29120-5100 Manual Toilet Unit With Soft-Close Large Bowl
The Jabsco 29120-5100 is an enhanced version of the classic manual marine toilet, designed to deliver reliable flushing and convenient servicing on board. It pairs a redesigned white vitreous china bowl with a soft-close seat and lid, and supports both fresh and saltwater operation for versatile marine sanitation installations.
Application
- Marine sanitation for small to medium-sized boats
- Suitable for fresh and saltwater use
Compatibility
- Alternate to Jabsco 29120-3000
Technical Specifications
Brand Jabsco Supplier Code 29120-5100 Order Number 00322085 Barcode 671880628297 Product Portfolio Manual Toilets Inlet Connection 19 mm (3/4") Outlet Connection 38 mm (1 1/2") Connections 19 mm / 38 mm Dimensions (As Listed) 345 x 470 x 485 mm Dimensions (Lid Closed) Height 34.5 cm / Width 46.5 cm / Depth 49.0 cm Weight 13 kg Shipping Weight 12.00 kg Color White Material Porcelain Bowl Material White Vitreous China Seat and Lid Soft-Closing Seat and Lid Material Duroplast (Anti-Scratch Surface)
Product Details
- Twist 'N' Lock safety handle helps prevent seawater backflow and flooding by locking the waste outlet valve shut
- Reversible pump mounting supports left-hand or right-hand installation
- Powerful self-priming, double-acting piston pump
- Strong swirl action for efficient flushing
- Crevice-free contours and skirted base for improved cleanliness and hygiene
- Angled pump housing and long stroke for easier pumping
- Spring-assisted top valve closure for easier priming
- Automatic vacuum breaker operated by the flush control lever for easier bowl emptying
- Constant 38 mm bore waste path designed to minimize blockages
- Joker valve combines full 38 mm bore with automatic backflow prevention
- Multi-angle discharge elbow for installation flexibility (turnable 360°)
- Front/top-facing fastenings for easier access and servicing without special tools
- Renewable external seal housing for quick replacement of the seal and piston rod guide
- Positively located gaskets help ensure correct re-assembly
- Dual function base plug combines a winter drain point with easy cleaning access
- Non-corroding hinge system and corrosion-resistant components for marine use
Features
- Soft-close seat and lid for quieter operation
- Hygienic Duroplast seat and lid with ceramic-like appearance
- Designed for both fresh and saltwater service
- Versatile installation options with reversible mounting and adjustable discharge angle
-
