ID
1331338
$ 341.04
1-2 weeks delivery time
-
+
The Jabsco 29120-5000 manual marine toilet system combines a large white vitreous china (porcelain) bowl with a wooden seat and lid to deliver comfortable, hygienic onboard use with fresh or raw water systems. Its Twist 'N' Lock mechanism and 90° lockable pump handle help prevent backflow and flooding, while the rotating base and reversible pump mounting support left- or right-hand installation. With a self-priming double-acting piston pump, vacuum breaker support, and a multi-angle discharge elbow, it is built for dependable manual flushing, easier maintenance via front/top fastenings, and flexible hose routing through 19 mm inlet and 38 mm outlet connections.
- Description
- Ask a Question
-

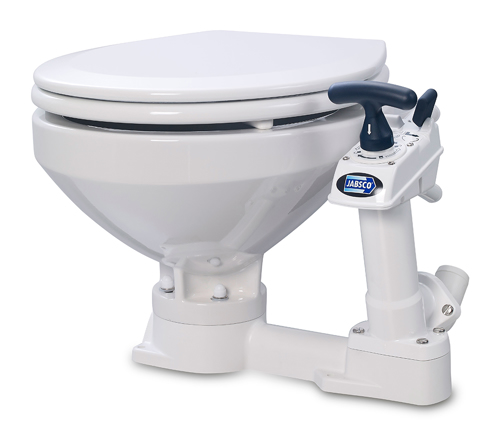

Jabsco 29120-5000 Manual Twist ‘N’ Lock Toilet System (Large Bowl)
Built for marine environments, this Jabsco 29120-5000 manual toilet pairs a household-size porcelain bowl with practical features aimed at hygiene, safety, and straightforward servicing. It is designed for use with fresh or raw water systems and includes a Twist ‘N’ Lock safety mechanism to reduce the risk of backflow and flooding.
Application
- Manual marine toilet for fresh or raw water systems
- Suitable for marine vessels including boats and yachts
- Specified for use in both fresh and saltwater environments
Technical Specifications
Supplier Code 29120-5000 Order Number 00320001 Barcode 671880628280 Product Portfolio Manual Toilets Bowl Material Vitreous China (Porcelain) Color White Seat and Lid White Lacquered Wood; Baked Enamel Seat and Cover Seat Supplied Seat Model 29126-0000 Bowl Profile 365 mm x 460 mm (Improved Profile) Dimensions 345 x 470 x 485 mm Dimensions (Lid Closed) Height 34.5 cm / Width 46.5 cm / Depth 49.0 cm Connections 19 mm inlet / 38 mm outlet Discharge Path Constant 38 mm bore waste path Weight 13 kg Shipping Weight 12.00 kg Packed Weight Approx. 14.00 kg packed Packaged Dimensions Length 60.00 cm / Height 55.00 cm / Width 54.00 cm Operating Temperature -5°C to 40°C (23°F to 104°F) Pressure Rating 3 bar (43.5 psi) maximum discharge pressure Seat Load Up to 150 kg (330 lbs) capacity
Product Details
- Upgraded model replacing the previous 29120-3000 version
- Rotating plastic base and reversible pump mounting for left or right installation
- Multi-angle discharge elbow for flexible installation (turnable 360°)
- Fastenings face the front or top for easier maintenance access

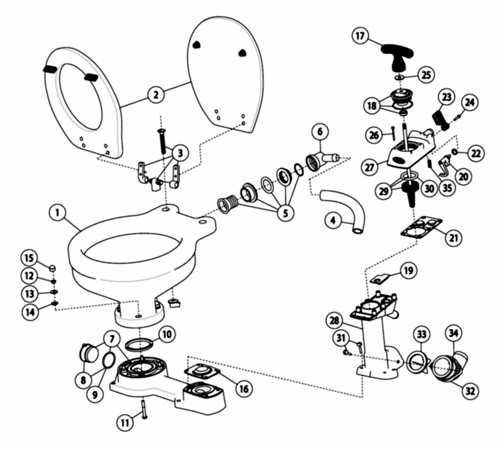

- Manual / spare part overview referenced for models 29090, 29120-5000, and 29120-5100 (new); predecessor model overview noted as available in English and German
Features
- Twist ‘N’ Lock mechanism helps prevent backflow and flooding by locking the waste outlet valve shut
- Pump handle locks at 90° to close the outlet valve
- Powerful self-priming, double-acting piston pump
- Strong swirl action for efficient flushing
- Crevice-free contours, smooth moldings, and skirted base for improved hygiene and easier cleaning
- Angled pump housing and long stroke for easier pumping
- Spring-assisted top valve closure for easier priming
- Automatic vacuum breaker operated by the flush control lever for easier bowl emptying
- Joker valve combines full 38 mm bore with automatic backflow prevention
- Renewable external seal housing for quick replacement of the seal and piston rod guide
- Dual function base plug combines a winter drain point with easy cleaning access
-
