ID
1331299
$ 82
1-2 weeks delivery time
-
+
The Jabsco 29015-0010 vented anti-siphon loop is a plastic discharge loop for 38mm (1-1/2") hoses that helps protect marine toilets installed below the waterline by preventing siphoning, reverse flow, and flooding. Its integrated air vent valve (siphon break valve design) supports odor reduction and reliable operation in below-waterline plumbing systems, with a compact form factor and low installed weight for easier fitting into tight spaces.
- Description
- Ask a Question
-

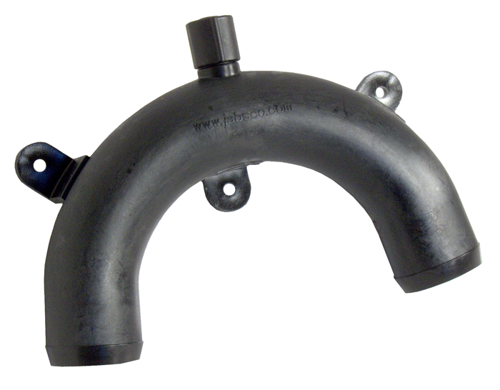

Jabsco 29015-0010 Vented Anti-Siphon Loop Unit
The Jabsco 29015-0010 is a larger plastic vented loop designed for marine toilet discharge plumbing, especially where installations sit below the vessel’s waterline. By combining an anti-siphon safety device with an integrated air vent valve, it helps prevent water from siphoning over pipe loops while also supporting odor control in critical discharge lines.
Application
- Marine toilet discharge pipe installations below the waterline
- Below-waterline toilet and bilge pump installations where vented loops are used to reduce siphoning risk
Compatibility
- 38mm (1-1/2") inner diameter hose
- 38mm (1-1/2") hose tail connections
Technical Specifications
Brand Jabsco Model 29015-0010 Supplier Code 29015-0010 Order Number 00320059 Barcode 671880529495 Valve Design Siphon Break Valve Material Plastic Bend Construction Hose Tail Size 38mm / 1-1/2" Hose Size Compatibility 38mm (1-1/2") inner diameter Diameter 1-1/2" (38mm) Dimensions (Set 1) Height 120mm (4.7"), Width 195mm, Depth 45mm (1.8") Dimensions (Set 2) Height 12.7cm, Width 18.4cm, Depth 5.1cm Actual Weight 0.20 kg Packed Weight (Approx.) 0.40 kg Shipping Weight 0.40 kg Packaged Dimensions 6.00cm x 16.00cm x 24.00cm
Product Details
- Type: Plastic vented anti-siphon loop (discharge vented loop)
- Integrated Venting: Includes an air vent valve to help eliminate odors
- Protection Function: Helps prevent water siphoning over pipe loops in below-waterline installations
- System Safety: Helps prevent reverse flow and flooding in toilet systems
- Use Case: Designed for waste discharge applications
Features
- Anti-siphon safety device for below-waterline marine toilet installations
- Integrated air vent valve for venting and odor control support
- Durable plastic construction for marine plumbing systems
-
