The Jabsco 28610-1125 Pureflo P500 hygienic pedestal pump delivers robust, easy-to-clean fluid transfer using AISI 316 stainless steel wetted parts and a neoprene flexible impeller. Its 3 inch Tri-clamp ports support fast strip-to-clean or clean-in-place maintenance, while self-priming up to 4 meters and viscosity handling up to 50,000 cP helps it cover demanding process duties. Built to handle both soft and hard solids, it suits applications across food, dairy, cosmetic, pharmaceutical, and beverage operations, and weighs approximately 23.70 kg (25.70 kg packed).
- Description
- Ask a Question
-

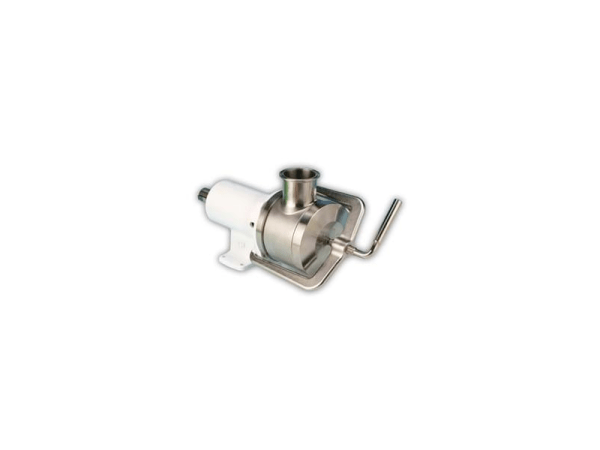

Jabsco 28610-1125 Pureflo P500 Hygienic Pedestal Pump
The Jabsco 28610-1125 is a high-performance hygienic flexible impeller pedestal pump designed for versatile transfer and process duties. With stainless steel wetted parts and maintenance-friendly Tri-clamp connections, it supports efficient cleaning routines while providing dependable operation in demanding production environments.
Application
- Food industry: transfer, filling, emptying, recirculating and mixing, injection, sampling
- Dairy industry: transfer, filling, emptying, recirculating and mixing, injection, sampling
- Cosmetic industry: transfer, filling, emptying, recirculating and mixing, injection, sampling
- Pharmaceutical industry: transfer, filling, emptying, recirculating and mixing, injection, sampling
- Beverage industry: transfer, filling, emptying, recirculating and mixing, injection, sampling
Technical Specifications
Model 3 Inch P500 Pureflo Hygienic Flexible Impeller Pedestal Pump Wetted Parts Material AISI 316 stainless steel Impeller Material Neoprene Port Size 3 inch Connection Type Tri-clamp ports Maximum Viscosity Up to 50,000 cP Self-Priming Up to 4 meters Solids Handling Soft solids and hard solids Approximate Weight 23.70 kg Approximate Packed Weight 25.70 kg
Product Details
- Pump type: Hygienic flexible impeller pedestal pump
- Seal: Long-life mechanical shaft seal
- Cleaning approach: Clean-in-place or strip-to-clean supported by Tri-clamp ports
- Supported port types: IDF, SMS, DIN, 3A, clamp ports
- Impeller options: Additional impeller compounds available
Features
- AISI 316 stainless steel wetted construction for hygienic service
- Neoprene impeller for flexible-impeller pumping performance
- 3 inch Tri-clamp ports for easier cleaning and maintenance
- Handles viscosities up to 50,000 cP and self-primes up to 4 meters
- Capable of managing both soft and hard solids
-
