Jabsco 29015-0000 - Inlet Vented Loop

Jabsco 29015-0000 - Inlet Vented Loop

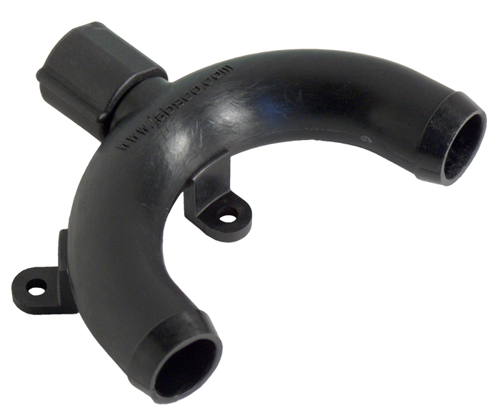

The Jabsco 29015-0000 Inlet Vented Loop is a critical safety device designed to prevent siphoning in marine toilet systems. It ensures that water cannot siphon over the pipe loops, which is especially important for toilets installed below the vessel's static or heeled waterline. This vented loop features a simple valve system that is molded in tough, durable plastic for long-lasting performance in harsh marine environments. It is compatible with 19mm (¾”) bore hose connections and is specifically designed for flush water inlet loops. Its compact dimensions allow for easy installation, making it an ideal choice for marine toilets that require anti-siphon protection. The Jabsco 29015-0000 is lightweight and easy to handle, providing effective anti-siphon protection with a straightforward, reliable design.

Key Features:

• Prevents siphoning of water in marine toilets installed below the vessel’s static or heeled waterline.
• Simple valve system ensures water cannot siphon over pipe loops, enhancing safety.
• Durable and tough plastic construction for long-lasting performance in marine environments.
• Compatible with 19mm (¾”) bore hose connections for easy installation and integration.
• Compact design: 70mm high, 100mm wide, and 25mm deep, ensuring easy space management on board.
• Ideal for flush water inlet loop applications in boats, yachts, and other marine vessels.
• Lightweight design for easy handling and storage with minimal space requirements.
• Prevents potential backflow and water damage, improving toilet system performance.
• Offers reliable anti-siphon protection, crucial for preventing contamination in marine plumbing systems.

Specifications:

• Model: Jabsco 29015-0000
• Inlet Size: 19mm (¾”) bore hose
• Dimensions: 70mm high, 100mm wide, 25mm deep
• Material: Tough molded plastic for durability and corrosion resistance
• Connections: 19mm (¾”) bore hose for secure and leak-free connection
• Maximum Pressure: 1.0 bar (14.5 psi) for optimal performance
• Operating Temperature Range: -10°C to 60°C (14°F to 140°F)
• Packaged Dimensions: L: 6.00 cm, H: 16.00 cm, W: 24.00 cm
• Actual Weight: 0.03 kg (approx. 0.23 kg packed)
• Port Types: Compatible with various standard hose connections (IDF, SMS, and clamp)
• Maintenance: Easy to clean and maintain for long-term, reliable operation
• Working Fluid: Suitable for freshwater and saltwater systems
• Safety Features: Anti-siphon valve system for preventing contamination
• Warranty: 1-year manufacturer warranty for peace of mind
• Certification: CE certified for compliance with marine safety standards
• Durability: Resistant to UV damage and marine chemicals, ensuring extended service life

Applications:

• Used in marine toilet systems to prevent siphoning of water below the vessel's waterline.
• Ideal for boats, yachts, and marine vessels requiring flush water inlet protection.
• Perfect for ensuring safe, efficient operation of marine plumbing systems, reducing the risk of backflow and contamination.
• Essential for compliance with marine sanitation regulations, maintaining hygienic and efficient toilet operation.
