The Jabsco 29040-3000 manual toilet pump assembly kit is a complete replacement solution for Jabsco 29090 and 29120 series manual toilets, including units manufactured 1986 and later. The twist 'n' lock mechanism supports secure flushing performance and upgrades older toilet versions (-0000 and -2000) to twist 'n' lock functionality while helping guard against flooding and waste backflow by locking the waste outlet valve shut. Supplied as Service Kit B, it includes a base valve gasket/seal and a spare stainless steel screw for installation support, with 38 mm (1-1/2") discharge and 19 mm (3/4") inlet connections for straightforward integration.
- Description
- Ask a Question
-

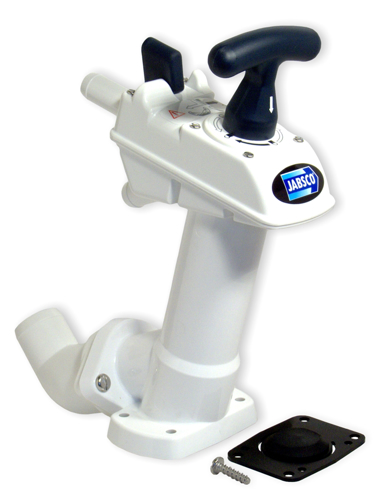

Jabsco 29040-3000 Manual Toilet Twist 'n' Lock Pump Unit
The Jabsco 29040-3000 is a complete manual toilet hand pump replacement assembly intended to restore smooth, reliable operation in marine sanitation systems. Built around a twist 'n' lock mechanism, it is designed to simplify removal and refitting while supporting secure, dependable toilet performance.
Application
- Replacement pump assembly for marine sanitation systems
- Ideal for replacing worn or damaged pump assemblies in compatible Jabsco manual toilets
Compatibility
- Jabsco 29090 Series Compact Manual Toilets (manufactured 1986 and later)
- Jabsco 29120 Series Comfort Manual Toilets (manufactured 1986 and later)
- Compatible variants: -0000
- Compatible variants: -2000
- Compatible variants: -3000
- Compatible variants: -5000
Technical Specifications
Model 29040-3000 Supplier Code 29040-3000 Order Number 00320038 Barcode 671880587914 Weight 1.03 kg (approx.) Packed Weight Approx. 1.53 kg Shipping Weight 1.30 kg Dimensions (L x W x H) 150 mm x 100 mm x 150 mm Connections 38 mm (1-1/2") discharge outlet; 19 mm (3/4") inlet Pressure Rating 0.5 bar (7.25 psi) Operating Temperature Range -10°C to 60°C (14°F to 140°F) Materials Durable, marine-grade plastic and corrosion-resistant components Safety Certifications CE; UL listed
Product Details
- Kit type: Manual toilet hand pump complete kit (Service Kit B)
- Mechanism: Twist 'n' lock
- Included sealing component: Base valve gasket/seal
- Included parts: 1 x base valve seal 29043-0000 (No. 16)
- Included parts: 1 x spare screw SP6050-0555 (No. 31)
- Installation support: Includes a single stainless steel screw in case of screw breakage during installation (not sold separately)
- Exploded view reference: Indicated as parts No. 16 to 34
- Replacement for: Jabsco 29040-0000
- Replacement for: Jabsco 29040-2000
Features
- Twist 'n' lock action supports secure operation and simplified handling
- Safety handle function guards against flooding and waste backflow by locking the waste outlet valve shut
- Leak-prevention support with included base valve gasket/seal
- Upgrade path for older toilet models (-0000 and -2000) to twist 'n' lock functionality
- Designed for marine environments with corrosion-resistant components
- Easy to clean and service for long-term reliability
-
